Daikin EBSX-D - To Connect the WLAN Cartridge

6 Electrical installation
Installation manual
32
EBSH/X(B)11+16P50D
Daikin Altherma 3 R ECH₂O
4P759878-1 – 2024.01
K1A
K2A
X15M
X12M
X 5 M MX1 12
3456
X15M.3
X12M.23
X12M.24
X12M.25
X12M.25
X15M.5
X15M.4
X15M.6
23 24 25
4 Connect the low voltage wiring as follows:
5 Connect the high voltage wiring as follows:
6 Fix the cable with cable ties to the cable tie mountings. General
information, see "6.3.1 To connect the electrical wiring to the
indoor unit"[422].

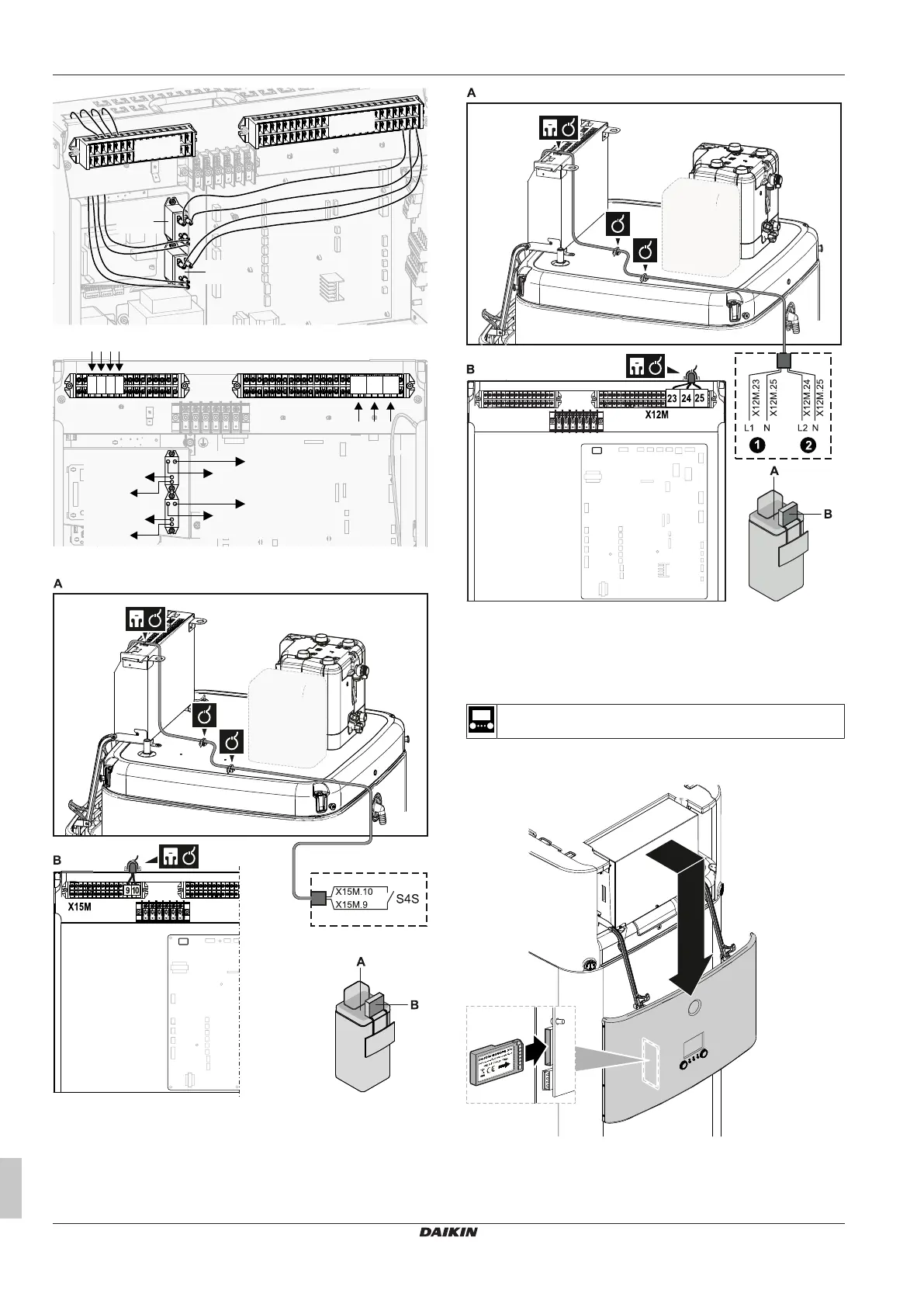

6.3.14 To connect the WLAN cartridge
[D] Wireless gateway
1 Insert the WLAN cartridge into the cartridge slot on the user
interface of the indoor unit.
1
2
