3 About the box
Installation manual
4
EBSH/X(B)11+16P50D
Daikin Altherma 3 R ECH₂O
4P759878-1 – 2024.01
DANGER: RISK OF ELECTROCUTION
During the filling process, water can escape from any
leaking point and can cause an electrical shock if it comes
into contact with live parts.
▪ Before the filling process, de-energise the unit.
▪ After the first filling and before switching on the unit
with the mains switch, check whether all electric parts
and connection points are dry.
Electrical installation (see "6Electrical installation"[421])
WARNING
Electrical wiring MUST be in accordance with the
instructions from this manual. See "6 Electrical
installation"[421].
WARNING
▪ All wiring MUST be performed by an authorised
electrician and MUST comply with the national wiring
regulation.
▪ Make electrical connections to the fixed wiring.
▪ All components procured on-site and all electrical
construction MUST comply with the applicable
legislation.
WARNING
▪ If the power supply has a missing or wrong N-phase,
equipment might break down.
▪ Establish proper earthing. Do NOT earth the unit to a
utility pipe, surge absorber, or telephone earth.
Incomplete earthing may cause electrical shocks.
▪ Install the required fuses or circuit breakers.
▪ Secure the electrical wiring with cable ties so that the
cables do NOT come in contact with sharp edges or
piping, particularly on the high-pressure side.
▪ Do NOT use taped wires, extension cords, or
connections from a star system. They can cause
overheating, electrical shocks or fire.
▪ Do NOT install a phase advancing capacitor, because
this unit is equipped with an inverter. A phase
advancing capacitor will reduce performance and may
cause accidents.
WARNING
If the supply cord is damaged, it MUST be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
INFORMATION
For details on the fuse ratings, the fuse types and the
circuit breaker ratings, see "6Electrical installation"[421].
DANGER: RISK OF ELECTROCUTION
WARNING
ALWAYS use multicore cable for power supply cables.
CAUTION
Do NOT push or place redundant cable length into the unit.
WARNING
The backup heater MUST have a dedicated power supply
and MUST be protected by the safety devices required by
the applicable legislation.
CAUTION
To guarantee the unit is completely earthed, ALWAYS
connect the backup heater power supply and the earth
cable.
Commissioning (see "8Commissioning"[443])
WARNING
Commissioning MUST be in accordance with the
instructions from this manual. See
"8Commissioning"[443].
3 About the box
Keep the following in mind:
▪ At delivery, the unit MUST be checked for damage and
completeness. Any damage or missing parts MUST be reported
immediately to the claims agent of the carrier.
▪ Bring the packed unit as close as possible to its final installation
position to prevent damage during transport.
▪ Prepare in advance the path along which you want to bring the
unit to its final installation position.
3.1 Indoor unit
INFORMATION
The indoor unit is delivered with closed locking parts. Open
the locking parts before you start with the installation of the
indoor unit. The rear locking parts are maybe no longer
accessible when the indoor unit is at the final installation
location. (see "4.2.1To open the indoor unit"[413]).

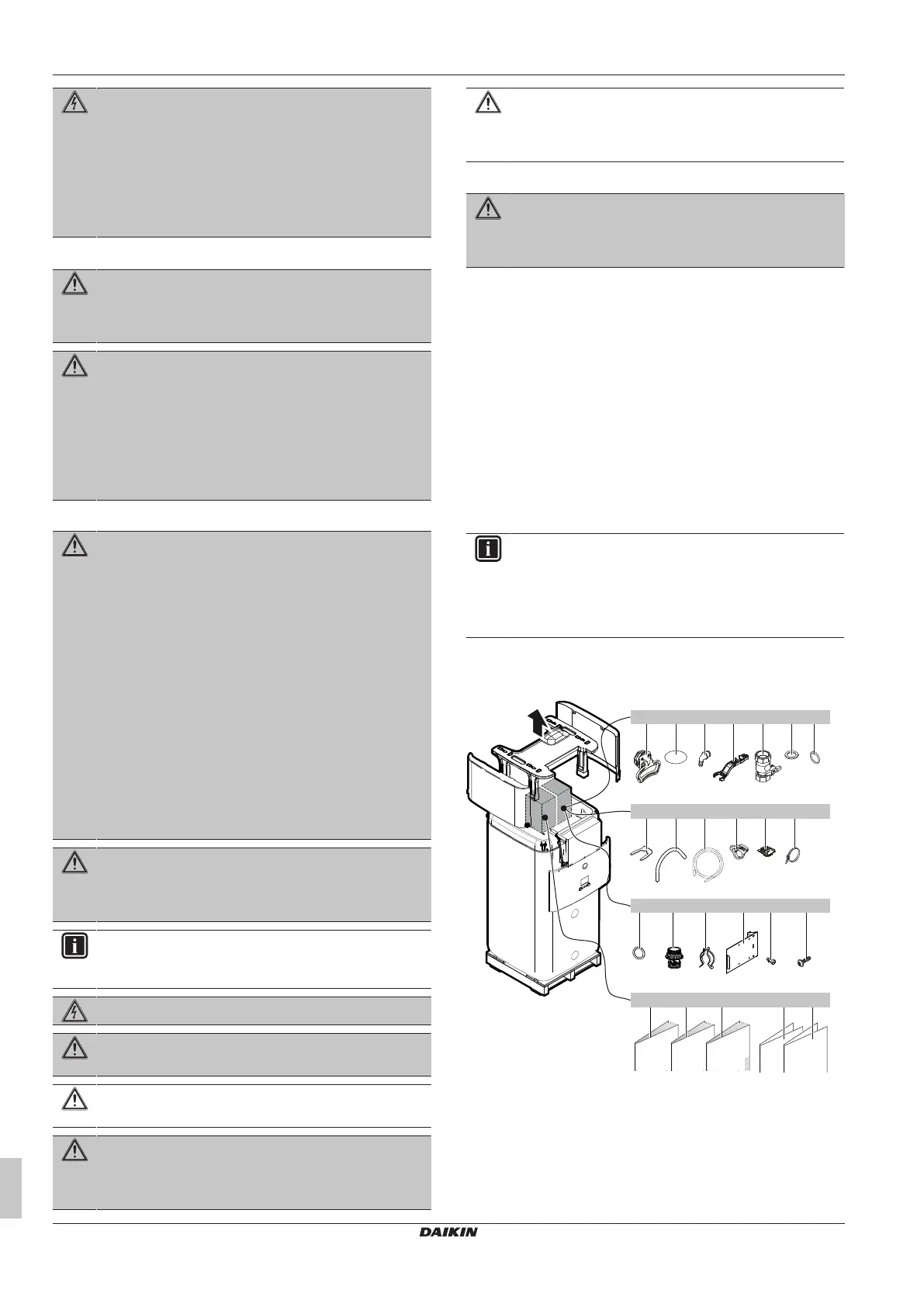

3.1.1 To remove the accessories from the
indoor unit
a b
2×
c
3×
1×
d e
f g
1× 1×2× 3×
h
1× 1× 1× 1× 17× 20×
i
j
k l m
1× 1× 1× 1×
w
x
v
1×
ut
2×
1× 1×1× 1× 1×
n o p q r s
a Handles (only required for transport)
b Thread cover
c Spillover connector
d Assembly wrench
e Shut-off valve
f Flat gasket
g O‑ring
h Securing clip
i Venting hose
j Drain pan hose
