4 Unit installation
Installation manual
8
EBSH/X(B)11+16P50D
Daikin Altherma 3 R ECH₂O
4P759878-1 – 2024.01

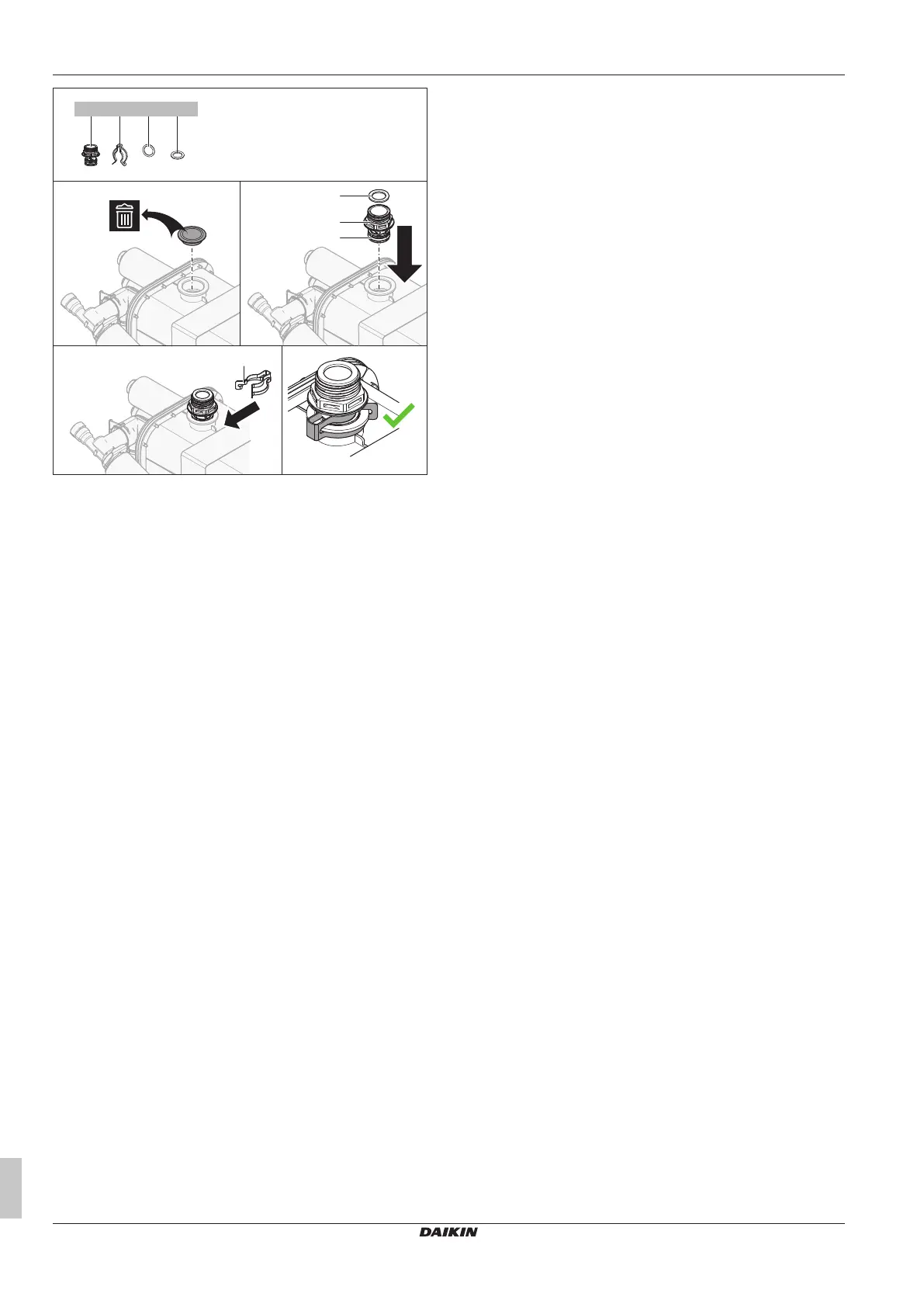

1× 1× 1×1×
a b c d
d
b
a
c
a Chimney socket
b Securing clip
c O-ring
d Flat gasket
▪ Socket's connection point for the chimney = 1" male thread. Use a
compatible counterpart for the chimney.
▪ Make sure the connection is airtight.
