7 Installation
Installer reference guide
32
ERGA04~08DAV3(A) + EHBH/X04+08DA
Daikin Altherma – Low temperature split
4P496758-1 – 2017.12
300
600
<150
<150
(mm)
>300
100
a
b
0 mm
a Maximum snowfall height
b EKFT008D option kit

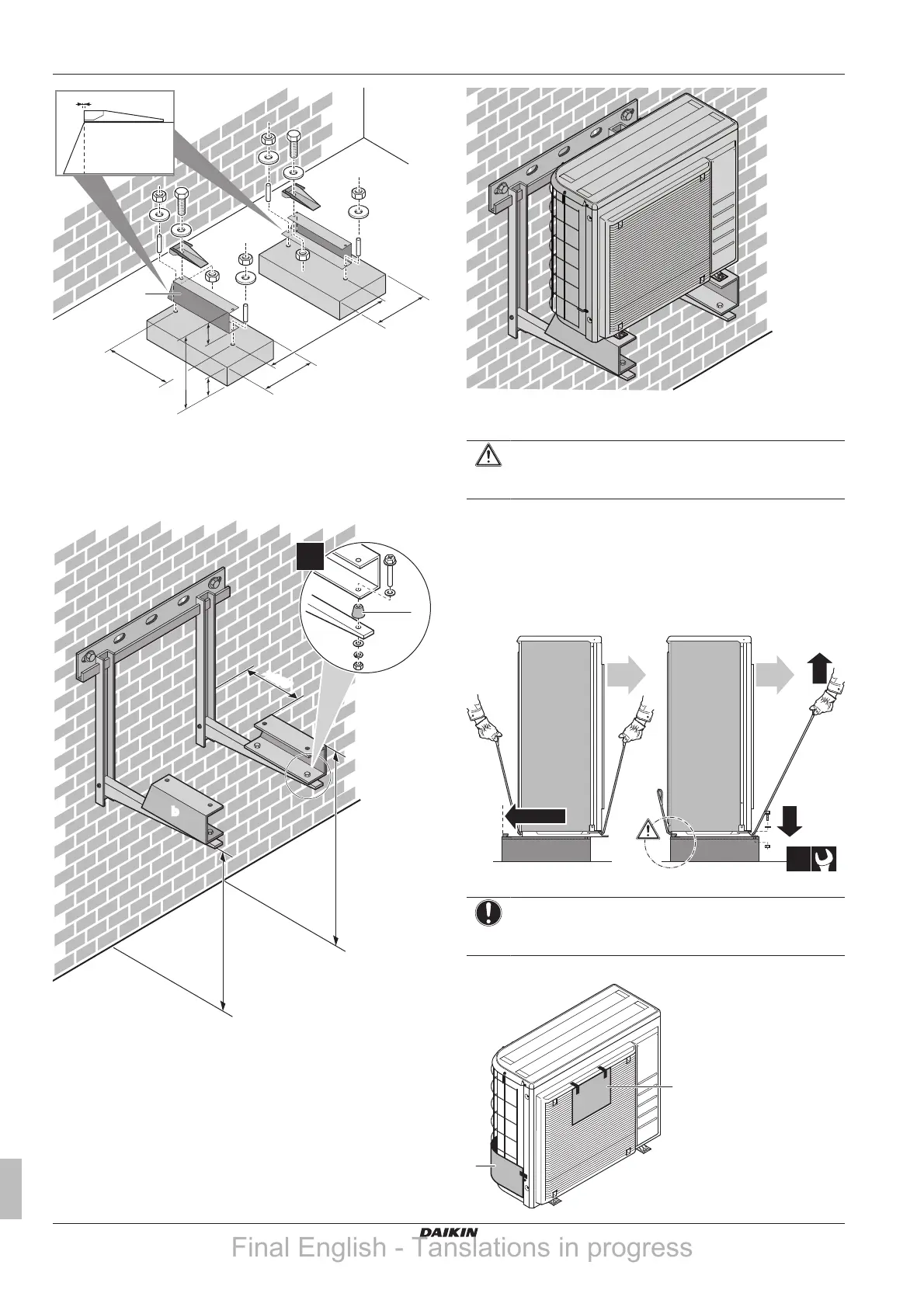

Option 4: On brackets to the wall with the EKFT008D option kit
The EKFT008D option kit is recommended in areas with heavy
snowfall.
>250
>300
>250
(mm)
a
b
c
4×
a Maximum snowfall height
b EKFT008D option kit
c Anti-vibration rubber (field supply)
7.3.4 To install the outdoor unit
CAUTION
Do NOT remove the protective cardboard before the unit is
installed properly.
1 Lift the outdoor unit as described in "3.2.2 To handle the
outdoor unit"on page7.
2 Install the outdoor unit as follows:
▪ (1) Put the unit into position (using the sling to the left and
the handle to the right).
▪ (2) Remove the sling (by pulling 1 side of the sling).
▪ (3) Fix the unit.
2×
3
2
1
a a
a Air outlet
NOTICE
Properly align the unit. Make sure the backside of the unit
does NOT protrude.
3 Remove the protective cardboard and instruction sheet.
a
b
