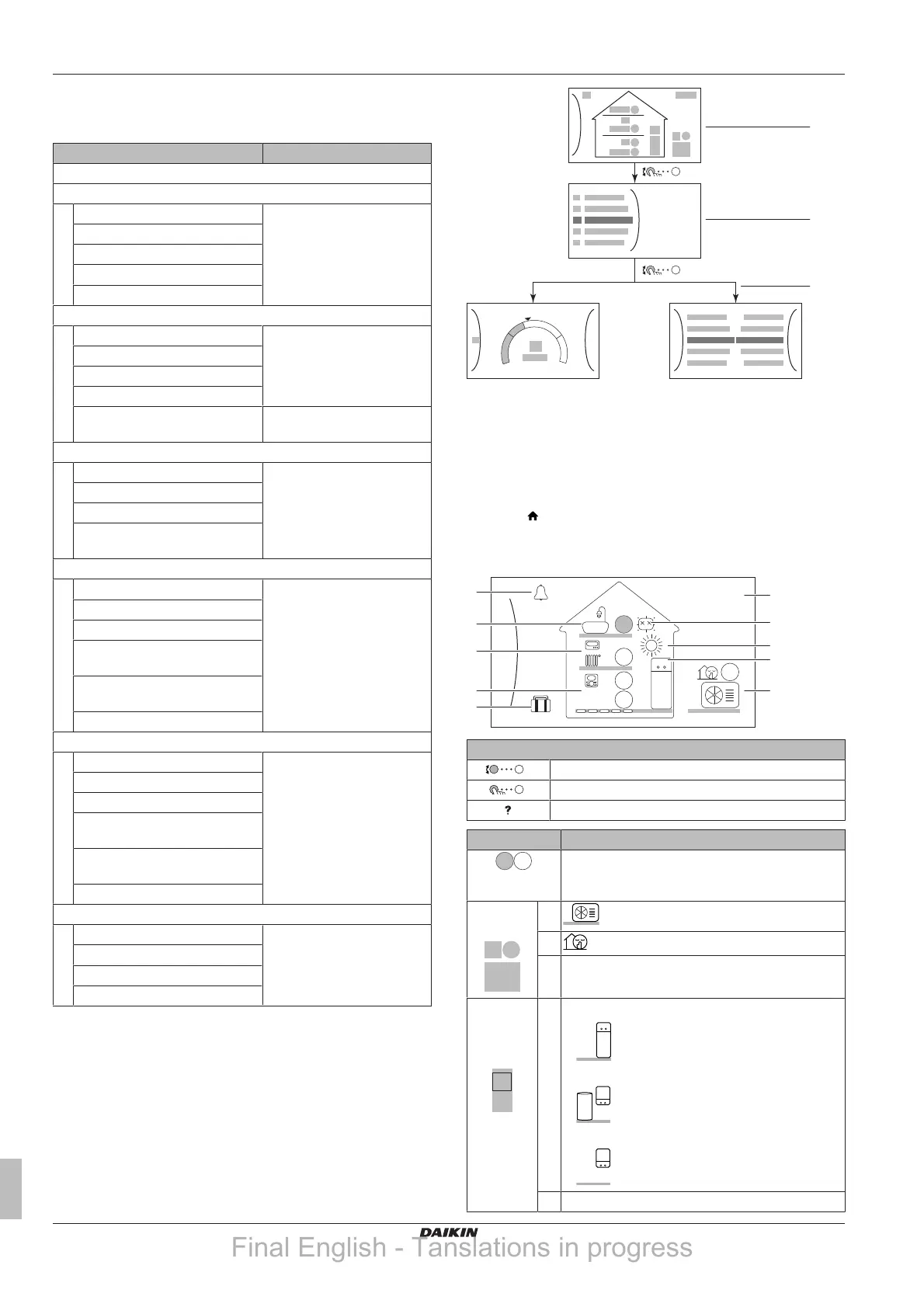

8 Configuration
Installer reference guide
48
ERGA04~08DAV3(A) + EHBH/X04+08DA
Daikin Altherma – Low temperature split
4P496758-1 – 2017.12
You can find a short overview of the settings in the configuration
here. All the settings can also be adjusted in the settings menu (use
the breadcrumbs).
For the setting… Refer to…
Language [7.1]
Time/date [7.2]
Hours —
Minutes
Year
Month
Day
System
Indoor unit type (read only) "Backup heater"on page68
Backup heater type [9.3.1]
Domestic hot water [9.2.1]
Emergency [9.5]
Number of zones [4.4] "8.4.5Space heating/
cooling"on page59
Backup heater
Voltage [9.3.2] "Backup heater"on page68
Configuration [9.3.3]
Capacity step 1 [9.3.4]
Additional capacity step 2 [9.3.5]
(if applicable)
Main zone
Emitter type [2.7] "8.4.3Main zone"on
page53
Control [2.9]
Setpoint mode [2.4]
Heating WD curve [2.5] (if
applicable)
Cooling WD curve [2.6] (if
applicable)
Schedule [2.1]
Additional zone (only if [4.4]=1)
Emitter type [3.7] "8.4.4Additional zone"on
page57
Control (read only) [3.9]
Setpoint mode [3.4]
Heating WD curve [3.5] (if
applicable)
Cooling WD curve [3.6] (if
applicable)
Schedule [3.1]
Tank
Heat up mode [5.6] "8.4.6Tank"on page62
Comfort setpoint [5.2]
Eco setpoint [5.3]
Reheat setpoint [5.4]
8.3 Possible screens
8.3.1 Possible screens: Overview
The most common screens are as follows:
+
–
a
b
c
c2c1
a Home screen
b Main menu screen
c Lower level screens:
c1: Setpoint screen
c2: Detailed screen with values
8.3.2 Home screen
Press the
button to go back to the home screen. You see an
overview of the unit configuration and the room and setpoint
temperatures. Only symbols applicable for your configuration are
visible on the home screen.
6
1.6
bar
18 Feb 2018
22:19
55
18
21
45
f
i
j
h
g
e
d
a
b
c
Possible actions on this screen
Go through the list of the main menu.
Go to the main menu screen.
Enable/disable breadcrumbs.
Item Description
21
21
The temperatures are shown in circles. If the circle
is grey, the corresponding operation (example:
space heating) is currently not active.
Outdoor
unit
a2
a3
a1
a1
: Outdoor unit
a2
: Quiet mode active
a3 Measured ambient temperature
Indoor unit /
domestic
hot water
tank
b1
b2
b1 Indoor unit:
▪
: Floor-standing indoor unit with
integrated tank
▪
: Wall-mounted indoor unit with separated
tank
▪
: Wall-mounted indoor unit
b2 Water pressure
Final English - Tanslations in progress
