www.DaikinApplied.com 15 LARGE VERTICAL WSHP IM 1059-12
unit installation
Factory installed lter rack without duct ange (options) for large vertical units
▪ Standard 1" disposable lter
▪ Merv 8 in 2" frame
▪ Merv 13 in 4" frame
▪ No lter with 2" lter rack (low leak)
▪ No lter-no lter rack
Field installed lter rack with return air duct ange (accessory) for large vertical units
▪ 2" lter rack with return air duct ange
A
B
C

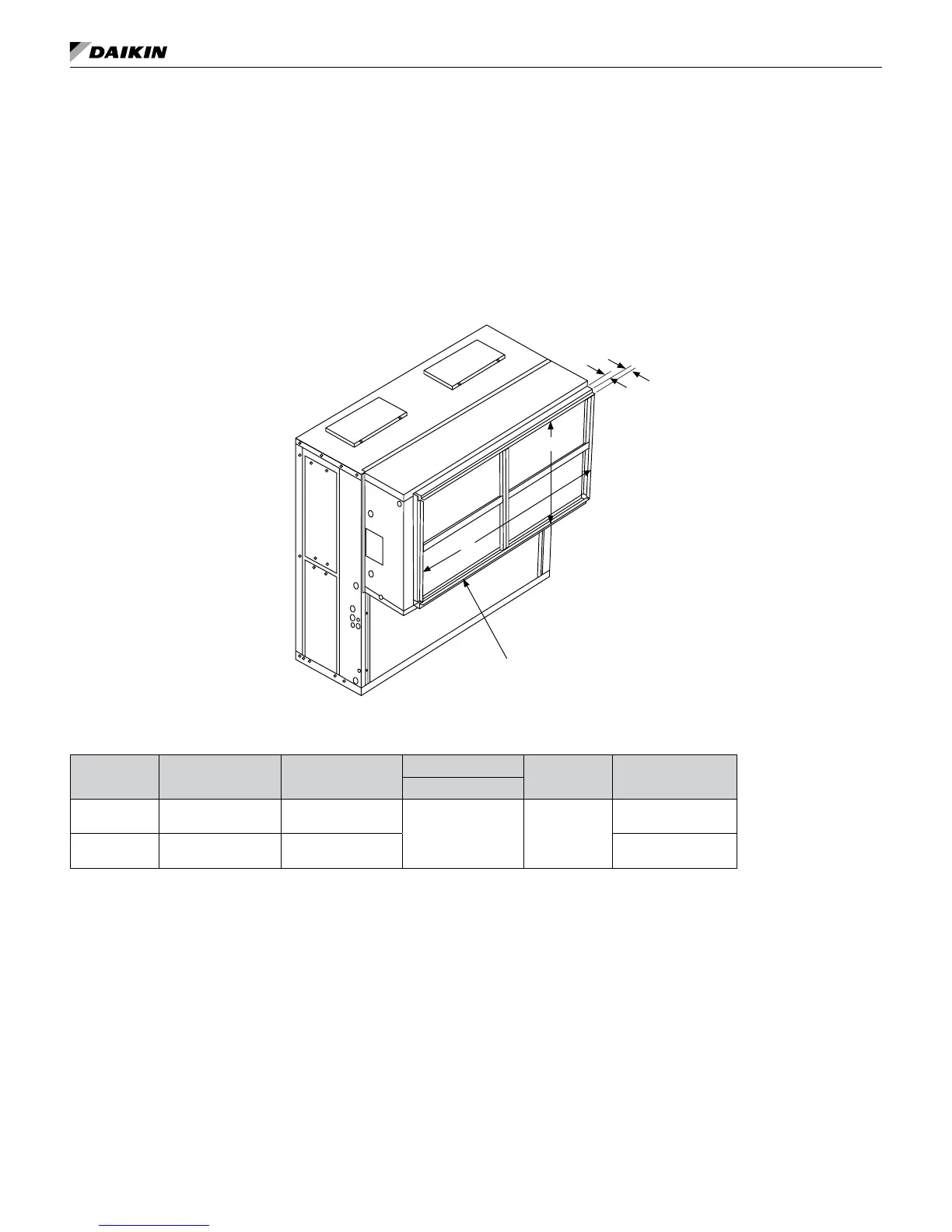

Accessory 2" deep filter rack
with return air duct flange
D
Table 2: Accessory filter rack with return air duct flange dimensions
Unit Size A B
C
D Filters (quantity)
2" deep
072-120
50.10" 30.90"
2.29" 1"
4
180-290
74.10" 38.90"
6
Note: Dimensions are to outside edge of lter rack ange.
