Daikin Enfinity - Microtech III Controller with I;O Expansion Module - with Waterside Economizer (WSE)

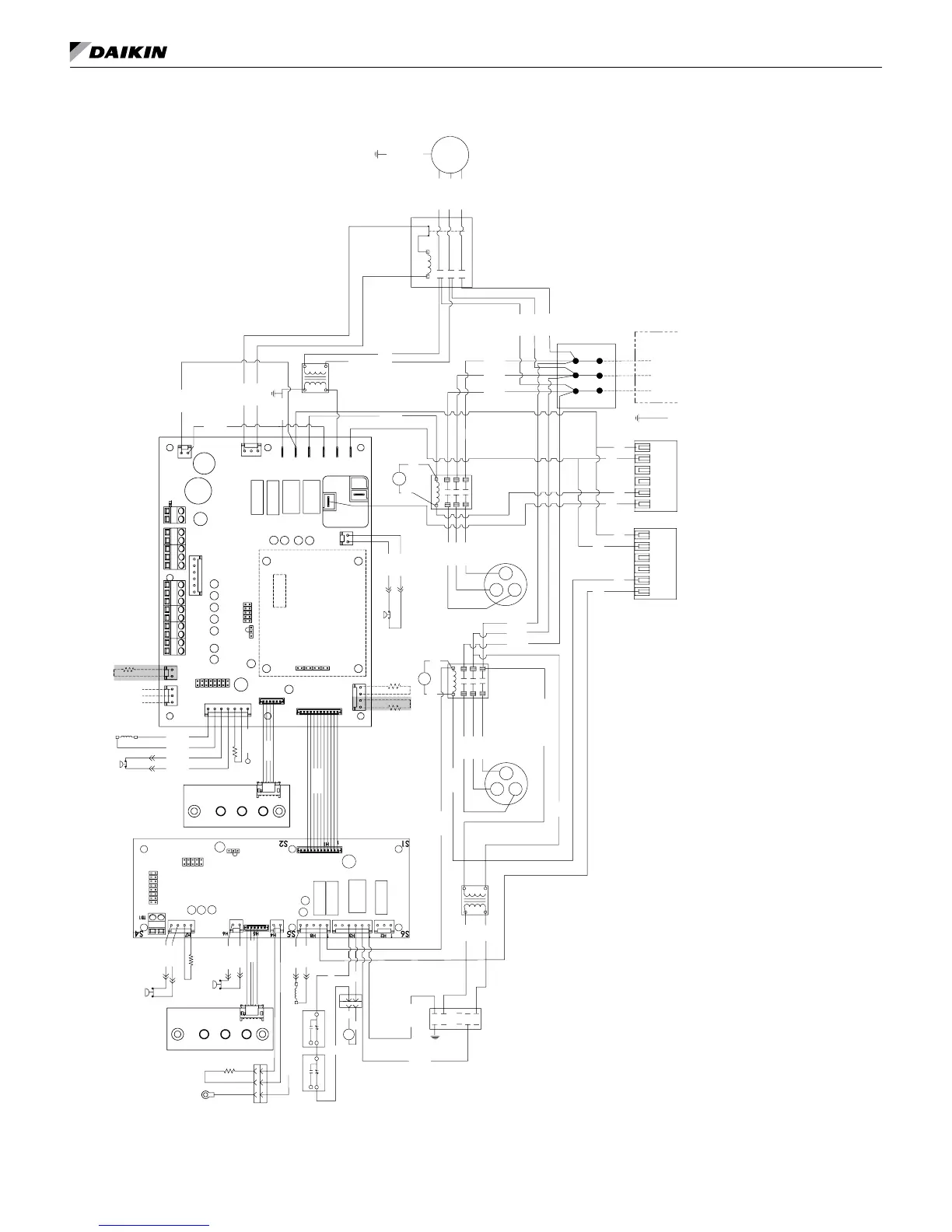

tyPiCal Wiring diagraMs
MicroTech III controller with I/O expansion module – with waterside
economizer (WSE) 208/230, 460, 575-60-3
COMPRESSOR
PROTECTOR
MODULE
T2
T1
S2
S1
M2
M1
COMPRESSOR
PROTECTOR
MODULE
T2
T1
S2
S1
M2
M1
LED1
SLTS
RV
LED1
GRY 46
BLU 41
BLU 40
RAT
LED2
IOEXP
COS
BLK 60
BLK 61
SEE NOTE
LED2
JP_2 JP_3 JP_4 JP_5 JP_6 JP_7 JP_8
H1
H2
N3 N2 N1 L1-3 L1-2 L1-1
H3
H5
H4
H7
H6
H8
H9
TB2
TEST-1
TB1
TB3
RUN PRG
JTAG
BLU 20
LP2
HP2
SLTS2
1
1
1
1
1
JP1
JP8
JTAG
RV2
YEL 11
RED 12
CC1
BRN 52
BRN 53
BLU 42
BLU 43
BLK 62 BLK 63
YEL 19
LP
BLK 10
YEL 8 (L2) RED 9 (L3)
BLK 7 (L1)
R1
HP
BRN 55 BRN 54
GRN/YEL 97
FAN
MOTOR
LWT
DAT
BLK
BLU
YEL 45
BLK/RED-460V
RED-208V
ORG-230V
BLK-575V
1
JP_1
BLK 4
YEL 5
RED 6
YEL 27
BLU 28
CC2
YEL 34 BLK 33
L3 L2
L1
X2
BLK
YEL BLU
YEL 89
BLK 81
TB2
RED
OL
T1 T2
L1
T3
L2 L3
COM
24V
X1
T1
TB1
L1
T2
L3
L2
L1
SERVICE & DISCONNEW
L3
L2
BLK 1
YEL 2
RED 3
T3
GND
YEL 18
YEL 31
RED 32
L1
L2 L3
CM-1
BLK 30
CM-2
BLK/RED - 460V RED - 208v ORG - 230V BLK - 575V
YEL
77
BLU
75
BLU
72
BLU
70
YEL
76
BLU
74
BLU
73
BLU
71
RED 35
YEL
BLU 15
YEL 14
45
2
R3
45
2
R4
87
86
TO GRY 46
10
11
85
WSE
M
EWT
COE
TO COS
R4
BLU
104
YEL
103
R3
YEL
101
BLU
102
IO Expansion Module
C - 24VAC COMMON
O - W3 - HEAT -3
G - FAN
Y1 - COOL - 1
Y2 - COOL 2
W1 - HEAT - 1
W2 - HEAT - 2
A - ALARM OUTPUT
5 - DC SIGNAL COM
4 - ROOM SENSOR/TO
3 - SETPOINT ADJUST
2 - FAN MODE/HT-CL-AUTO
1 - ROOM SENSOR LED
U - MARK IV - OCC/UNOCC
E - EMER SHTDN INPUT
R - 24VAC
Communication
Module
MicroTech III Controller
24V NO
24VAC COMMON
24V NC
Note: Switch L2/L3 fan
motor wires for
left-hand unit
Note: Wiring diagrams are typical. For the
latest drawing version refer to the
wiring diagram located on the inside of
the controls access panel of the unit.
Gray tinted areas in the wiring dia-
gram: Units with factory installed com-
munication module include Discharge
Air Temperature (DAT) and Return Air
Temperature (RAT) sensors shipped
loose and are eld installed. The Leav-
ing Water Temperature (LWT) sensor
is factory installed.
Legend
Item Description
CC1 Circuit 1 Compressor Contactor
CC2 Circuit 2 Compressor Contactor
CM1 Circuit 1 Compressor
CM2 Circuit 2 Compressor
COS Condensate Overow Sensor
HP Circuit 1 High Pressure Switch
HP2 Circuit 2 High Pressure Switch
IOEXP I/O Expansion Board / Harness
LED1 LED Annunciator / Harness
LED2 LED Annunciator / Harness
*RAT Return Air Temperature
*LWT Leaving Water Temp Sensor
LP Circuit 1 Low Pressure Switch
LP2 Circuit 2 Low Pressure Switch
SLTS Circuit 1 Suction Line Temp Sensor
SLTS2 Circuit 2 Suction Line Temp Sensor
MTIII MicroTech III Main Board
R1 Fan Motor Starter
RV Circuit 1 Reversing Valve Solenoid
RV2 Circuit 2 Reversing Valve Solenoid
TB1 Power Terminal Block
X1 75 VA Transformer
X2 50 VA Transformer
*DAT Discharge Air Temp Sensor
*EWT Entering Water Temp Sensor
WSE Waterside Economizer
TB2 Power Terminal Block
Notes: 1. “Run/Prg” Jumper to be in “Run” position for
normal operation
* Leaving Water (LWT), Discharge Air (DAT)
and Return Air Temperature (RAT) sensors are
eld installed.
_ _ _ _
Denotes optional feature
IM 1059-12 LARGE VERTICAL WSHP 37 www.DaikinApplied.com
