Daikin Enfinity - Typical Piping with Optional Waterside Economizer; Right-Hand

IM 1059-12 LARGE VERTICAL WSHP 14 www.DaikinApplied.com
unit installation

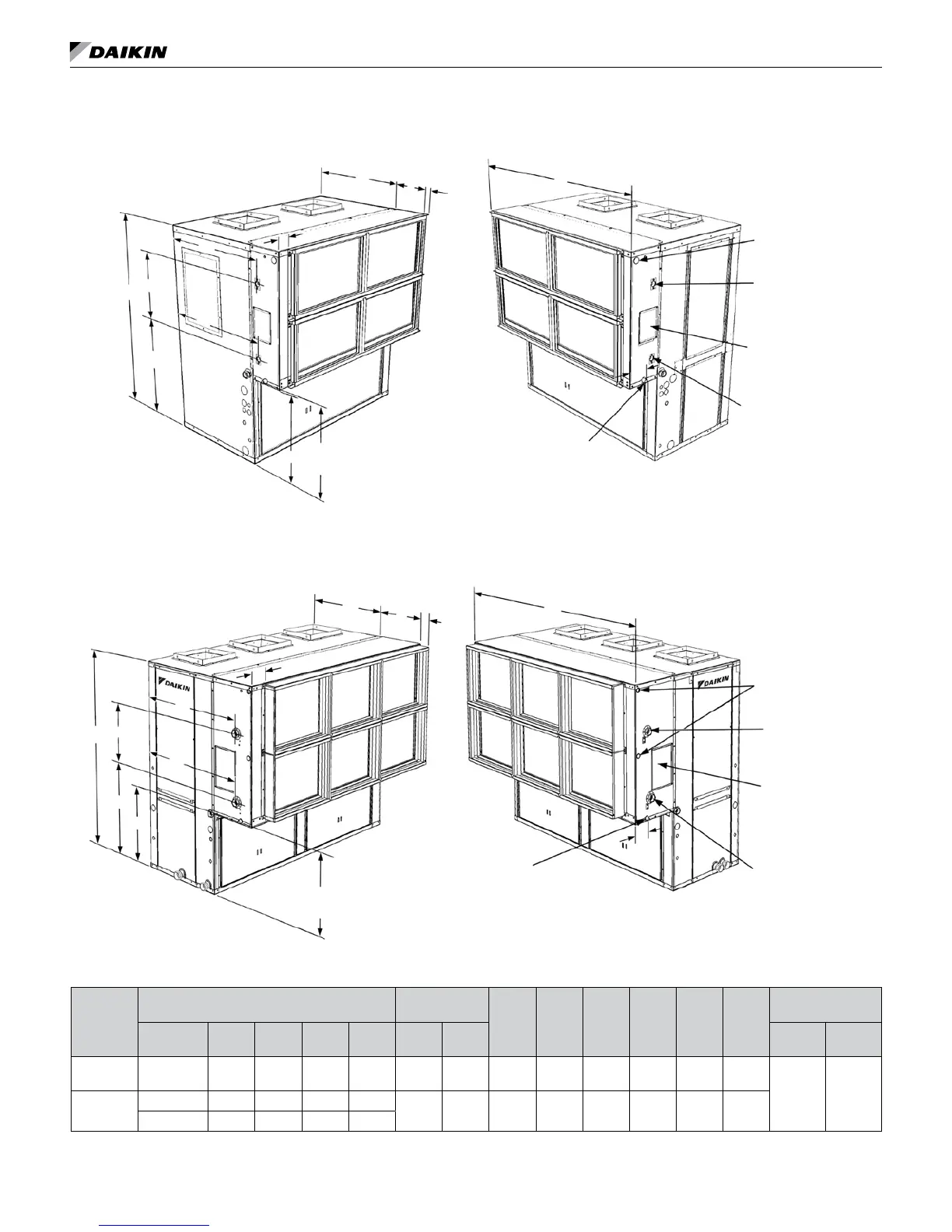

Typical Piping With Optional Waterside Economizer
WSE piping location dimensions – sizes 072-120
D
(to center of drain)
Cr
E
H
As
K
Br
L
F
M
G
J
WSE condensate drain
connection 7/8" O.D.
1" FPT Supply
water
connection
1" FPT Return
water
connection
Vent access
Motorized valve
access panel
Note: Piping connections from WSE return to unit supply to be eld installed
Left-hand unit Right-hand unit
Cs
WSE piping location dimensions – sizes 180-290
D
(to center of drain)
Cr
E
H
As
K
Br
L
F
M
G
J
WSE condensate drain
connection 7/8" O.D.
1-1/2" FPT
Supply water
connection
Left-hand unit Right-hand unit
1-1/2" FPT
Return water
connection
Vent access
Motorized valve
access panel
Note: Piping connections from WSE return to unit supply to be eld installed
Cs
Unit Size
Supply & Return Connections
Condensate
Drain 7/8" O.D.
F G H J K L
M (lter rack)
As Br Cs Cr D E
Stan-
dard
Op-
tional
072 – 120
1
Left &
right-hand
28.80 18.27 30.00 30.00 24.00 4.50 9.00 54.90 23.15 3.80 55.75 28.00
1.13"
2.13"
or
4.13"
180 – 290
2
Left-hand 31.53 20.66 39.92 39.75
26.18 4.50 16.00 80.63 25.33 5.10 67.25 30.00
Right-hand 32.13 20.39 39.92 41.16
Notes:
1
Supply and return piping connections = 1-1/4" FPT.
2
Supply and return piping connections = 1-1/2" FPT.
