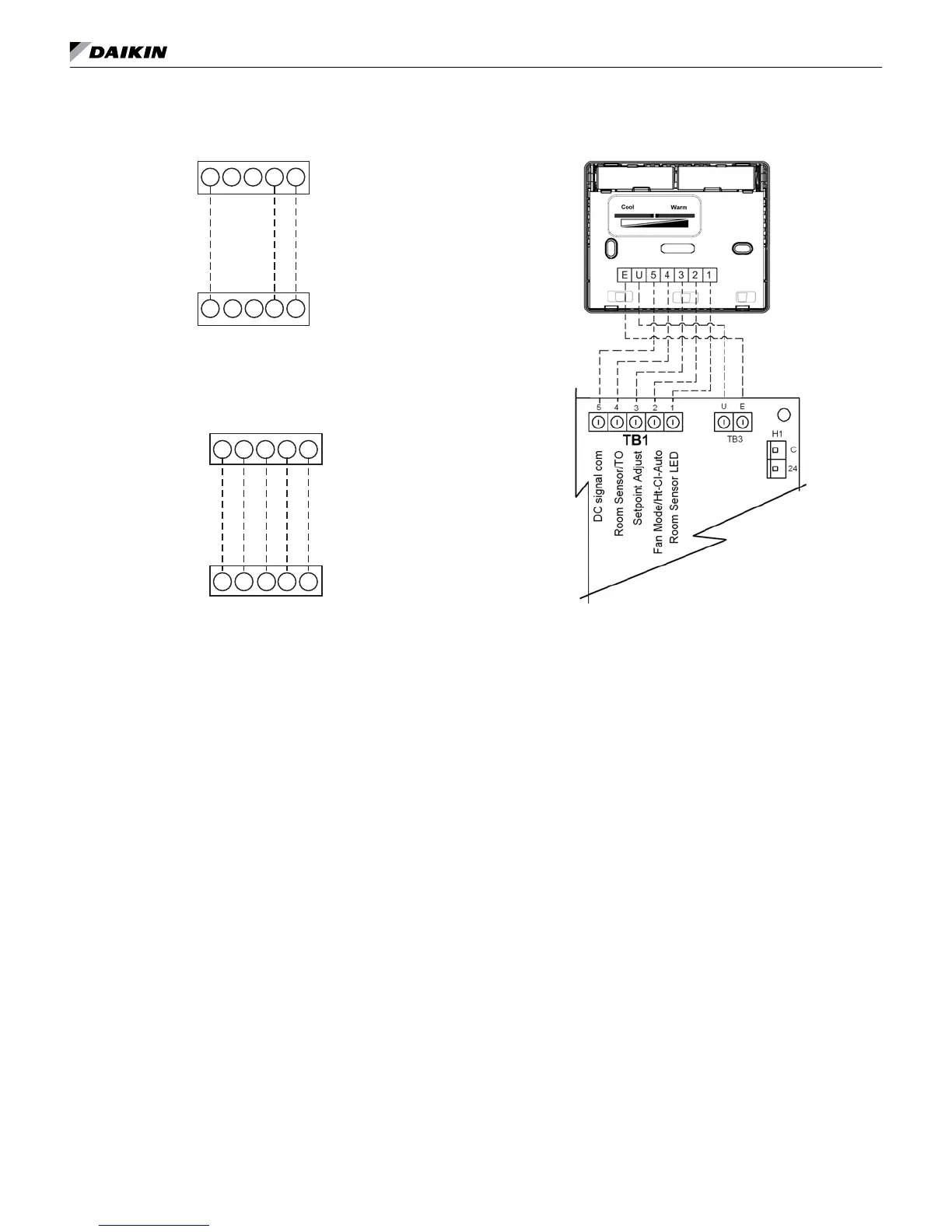

Figure 31: Basic sensor – P/N 910152149
32
5
MicroTech III Controller Terminals TB1
14
Basic Room Sensor (Part No.s 669529001, 910152149)
32
5
14
Figure 32: Room sensor with temperature adjustment wiring
32
5
MicroTech III Controller Terminals TB1
14
Room Sensor with Temperature Adjustment
(Part No.s 669529101, 669529201, 910121753)
32
5
14
Figure 33: Adjustable Cool/Warm with Occupancy Switch
– P/N 910121753
