Daikin LX10F10A User Manual

1-6

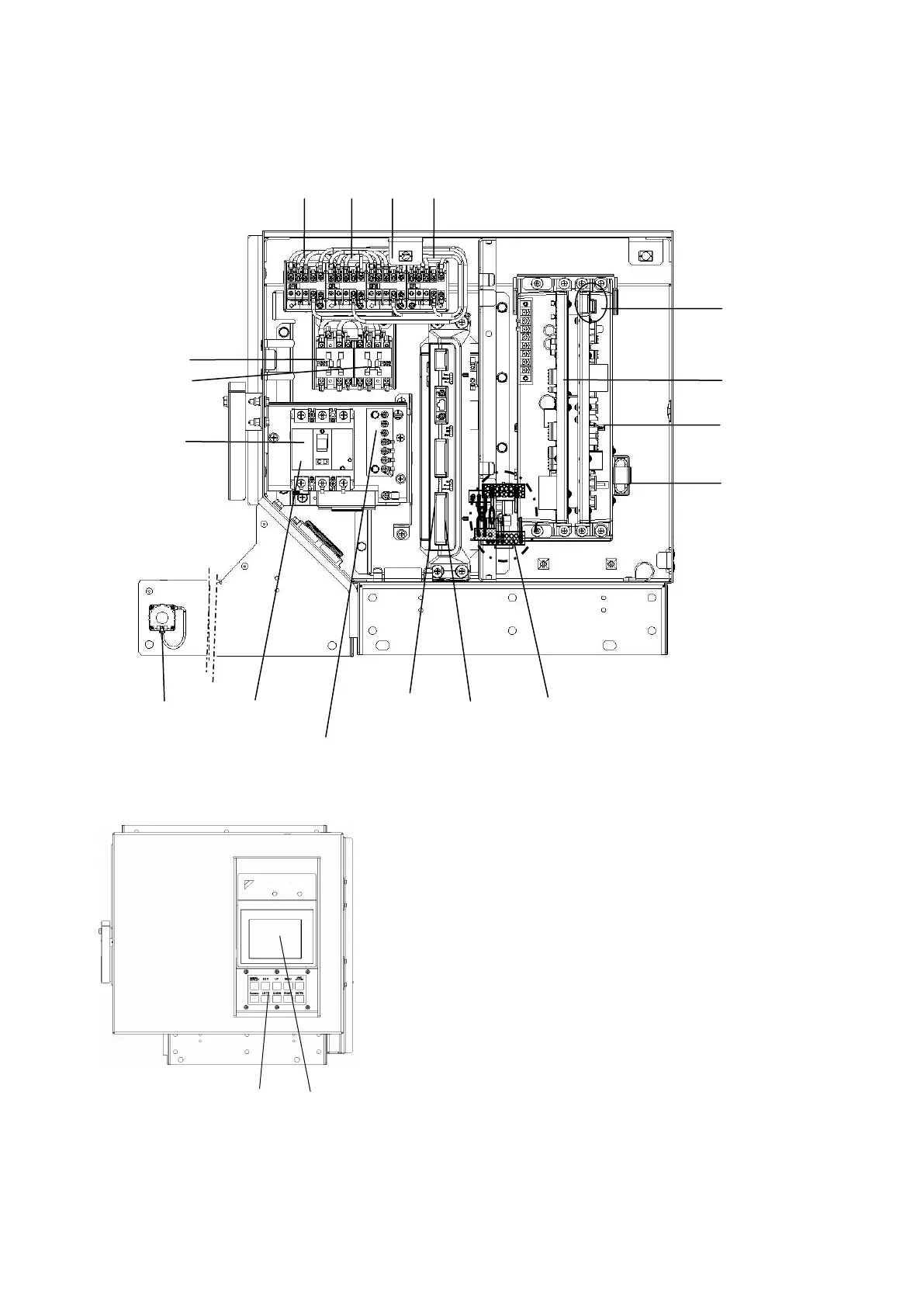

1.3.3 Control Box
BAT ：Wake-up Battery (Rechargeable Battery)
C/B ：Circuit Breaker
CFH ：Magnetic Contactor, CFM high speed
CFL ：Magnetic Contactor, CFM low speed
EFH ：Magnetic Contactor, EFM high speed
EFL ：Magnetic Contactor, EFM low speed
PCC1 ：Phase Correction Contactor 1
PCC2 ：Phase Correction Contactor 2
PPR ：PC Port Receptacle
PT/CT ：PT/CT Board
RCD ：Modem (Option)
RM ：Remote Monitoring Receptacle (Option)
Tr1 ：Transformer for Operating Circuit
CFL
PCC1
PCC2
C/B
RCD
I/O board
CPU board
BAT
Tr1
(Behind of C/B)
USB port
EFLEFH CFH
Earth terminal block
PPR PT/CT
(Behind of RCD)
Short circuit connectors for
emergency operation
LCD screenOperation key

Daikin LX10F10A Specifications

General

Brand	Daikin
Model	LX10F10A
Category	Refrigerator
Language	English
