Daikin LX10F10A User Manual

2-12

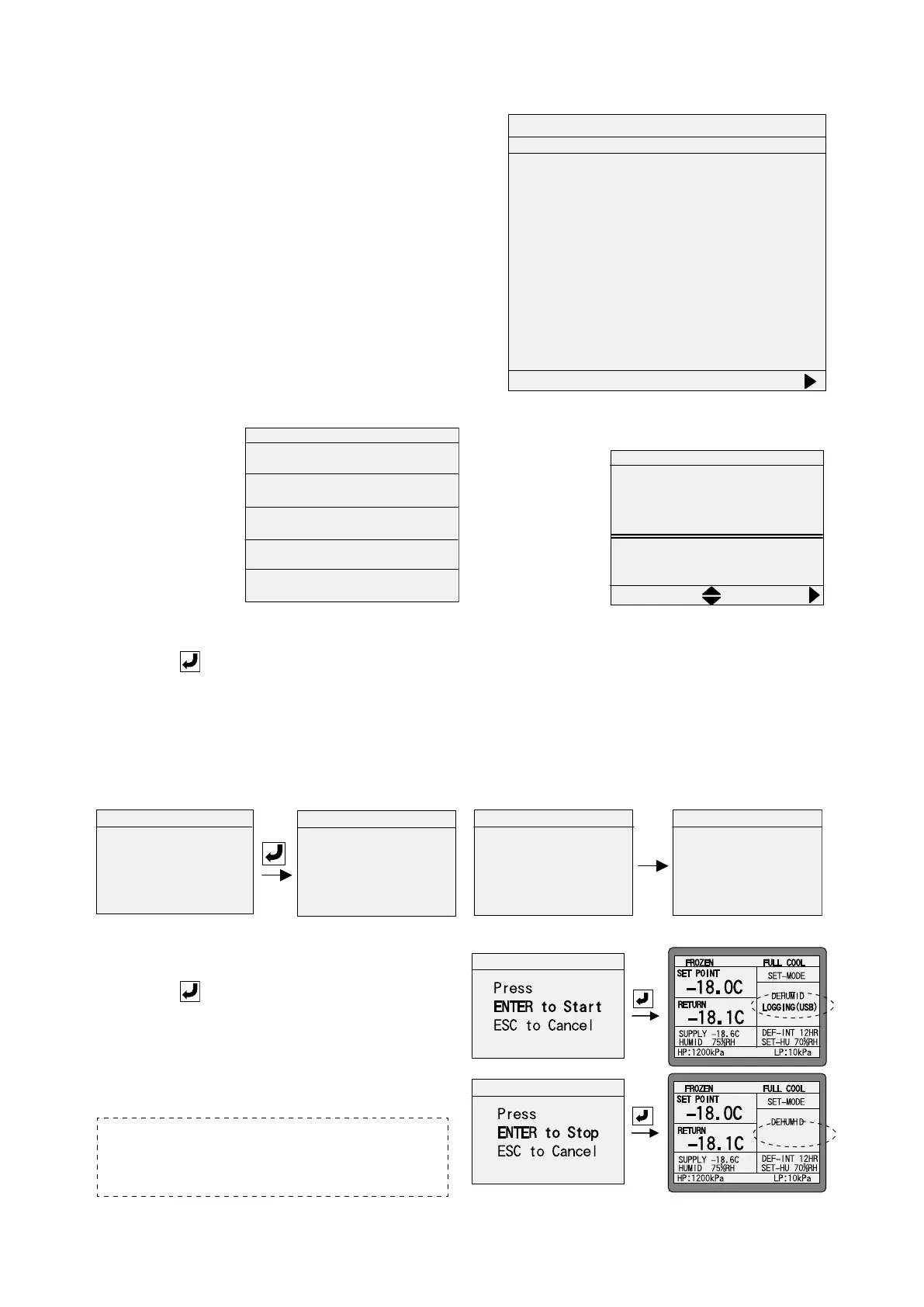

※5-2 Trip Report
The Trip report shows the trip data for up to 12
weeks starting from the present.
Logging interval is the value that is set in the
configuration set.
To be displayed as an event when an alarm
occurs.
※5-3 PTI History
Shows up to five
sets of the latest
successful PTI
History in the
past.
1/131
Trip Report
Time SP(C) DSS(C) DRS(C) SHU(%) HU(%)
NEXT
21:00 –30.0 –30.3 –30.3 75 75
20 MAY,2009
20:00 –30.0 –30.1 –30.3 75 75
19:00 –30.0 –30.1 –30.1 75 75
18:00 –30.0 –30.6 –30.6 75 75
21:00 –30.0 –30.3 –30.3 75 75
19 MAY,2009
20:34 F5FF
20:00 –30.0 –30.1 –30.3 75 75
19:00 –30.0 –31.1 –30.9 75 75
18:00 –30.0 –30.6 –30.8 75 75
17:00 –30.0 –30.5 –30.0 75 75
16:00 –30.0 –31.2 –31.8 75 77
15:00 –30.0 –25.7 –26.3 75 79
14:00 –30.0 –10.3 –11.0 75 79
16:32 E201
PTI History
3Hour Ago
Chilled PTI 21 DEC,2010 21:38
25Day 5Hour Ago
Short PTI 21 DEC,2010 19:05
25Day 8Hour Ago
Full PTI 15 NOV,2010 17:10
31Day 10Hour Ago
Full PTI 15 JAN,2011 23:45
Short PTI 21 AUG,2010 15:05
120Day 8Hour Ago
Alarm Record
1 APR,2010 8:43 F701
USDA #1 sensor failure
20 MAY,2010 21:15 E425
1 APR,2010 8:43 E425
1 APR,2010 8:43 E5FF
5 JAN,2009 14:58 E425
NEXT
※ 5-5 Automatic Pumpdown
1. Press
key to start Automatic Pumpdown.
"Preparation for …" is displayed if it is started soon after I/O switch ON since start-up control is
activated.
＊"Pump Down Activated" is displayed during Automatic Pumpdown operation
2. After the operation is completed, "GOOD" is displayed. Alarm E202 (Automatic pumpdown failure) is
displayed when the automatic pumpdown is failed. Turn I/O switch OFF to complete pumpdown.
Auto Pump down
Good
Auto Pump down
Pump Down
Activated
During Automatic Pumpdown In preparation
Auto Pump down
Press
ENTER to Start
ESC to Cancel
After operation completion
Auto Pump down
Press ESC to Cancel
Preparation for
Pump Down ---
※5-4 Alarm Record
Display
the alarm
generated at
the present
and in the
past maximum
12 weeks.
※ 5-6 Monitoring Log
1. Insert USB memory. (CPU board)
2. Press
key to start Monitoring Log. During
Monitoring Log, "LOGGING (USB)" is
displayed on the operation screen.
3. To complete the Monitoring Log, access
to operation screen ⇒ Service menu ⇒
Monitoring Log and execute "Enter to Stop".
Caution !!
Disconnect USB memory after confirmation of
"LOGGING (USB)" display off.
Monitoring Log
 
 


▲
▼


▲
▼
Monitoring Log
