Daikin MCK75JVM-K Service Manual

SiBE81-909 Operation Manual
Humidifying Air Purifier 25

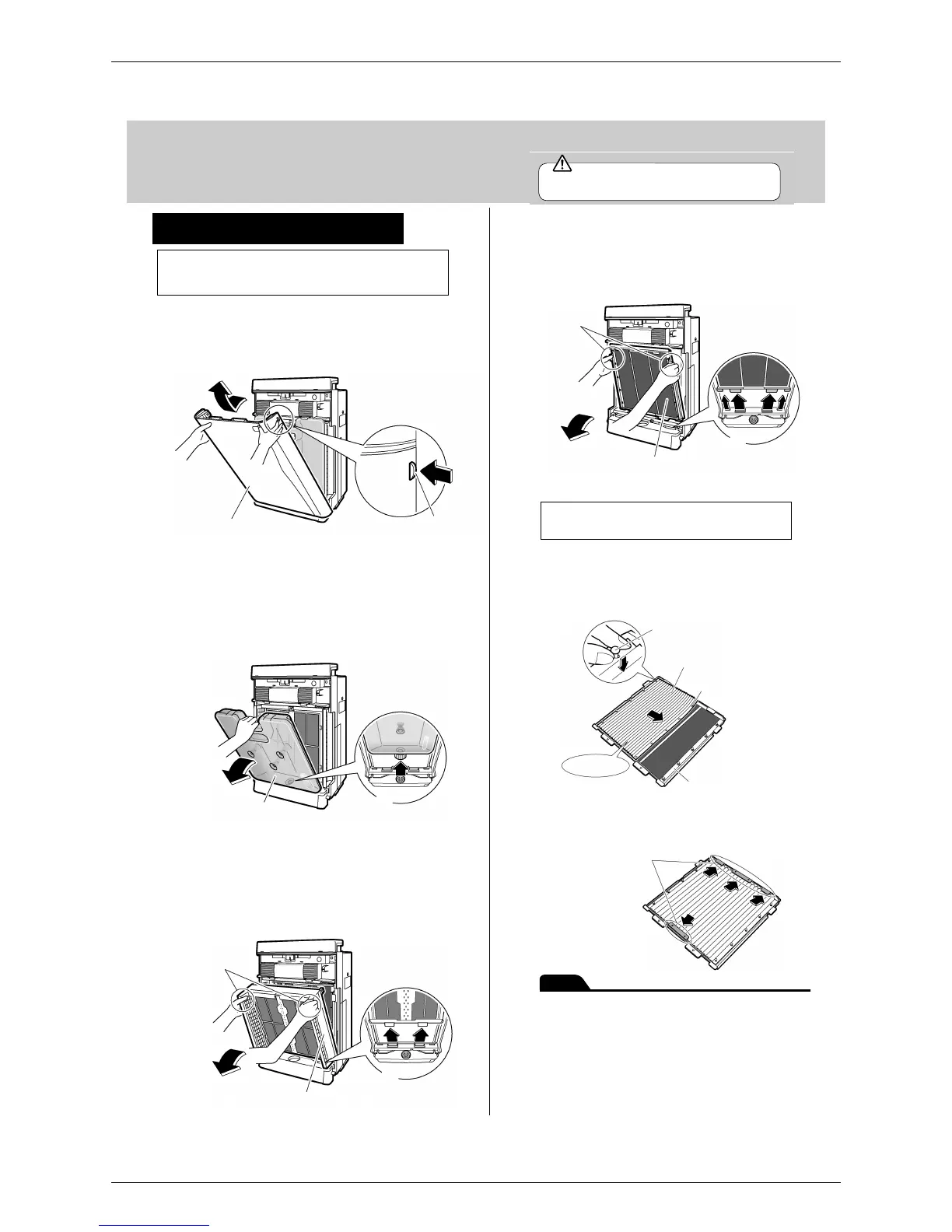

5.6 Attach the Filter
16
Attach the Filter
4
5
Remove the deodorizing catalyst unit.
• Holding the deodorizing catalyst unit by the
handle, pull the deodorizing catalyst unit
upwards and out of the unit.
Attach the pleated filter.
• Fit the projections (5 locations) on the left and
right faces of the deodorizing catalyst unit into
the holes (5 locations) on the left and right of
the pleated filter.
• Insert the pleated filter underneath the tabs (4
locations) at the top and bottom of the
deodorizing catalyst unit.
• Always run the unit with both a pre-filter
(green) and pleated filter (front: white, back:
blue).
Running the unit without both filters may lead
to damage.
• Unit performance drops if the pleated filter is
attached backwards.
1
Remove the front panel.
• Push the 2 projections (left and right) inwards, and
pull the front panel upwards and remove.
2
Remove the water tank.
• Holding the water tank by the handle, pull the tank
upwards and out of the unit.
3
Remove the UNIT1.
• Holding the UNIT1 by the handle, pull the UNIT1
upwards and out of the unit.
Attach the pleated Filter
(1)
Pull
(2)
Up
Handle
Deodorizing catalyst unit
Attach the pleated filter with the white side
facing to the front.
Deodorizing catalyst unit
Face the white
side to the front
Projection
(5 each on left and right)
Pleated filter
Holes
(5 each on left and right)
Top and bottom tabs (4 locations)
NOTE
Front panel
Push
Projection
(1 each on left and right)
(1)
Pull
Water tank
(2)
Up
(1)
Pull
(2)
Up
Handle
UNIT1
CAUTION
• Do the following before plugging in the
power supply cord.
Be sure to attach the pleated filter before
starting the unit.
