Daikin MCK75JVM-K Service Manual

Removal Procedure SiBE81-909
92 Humidifying Air Purifier

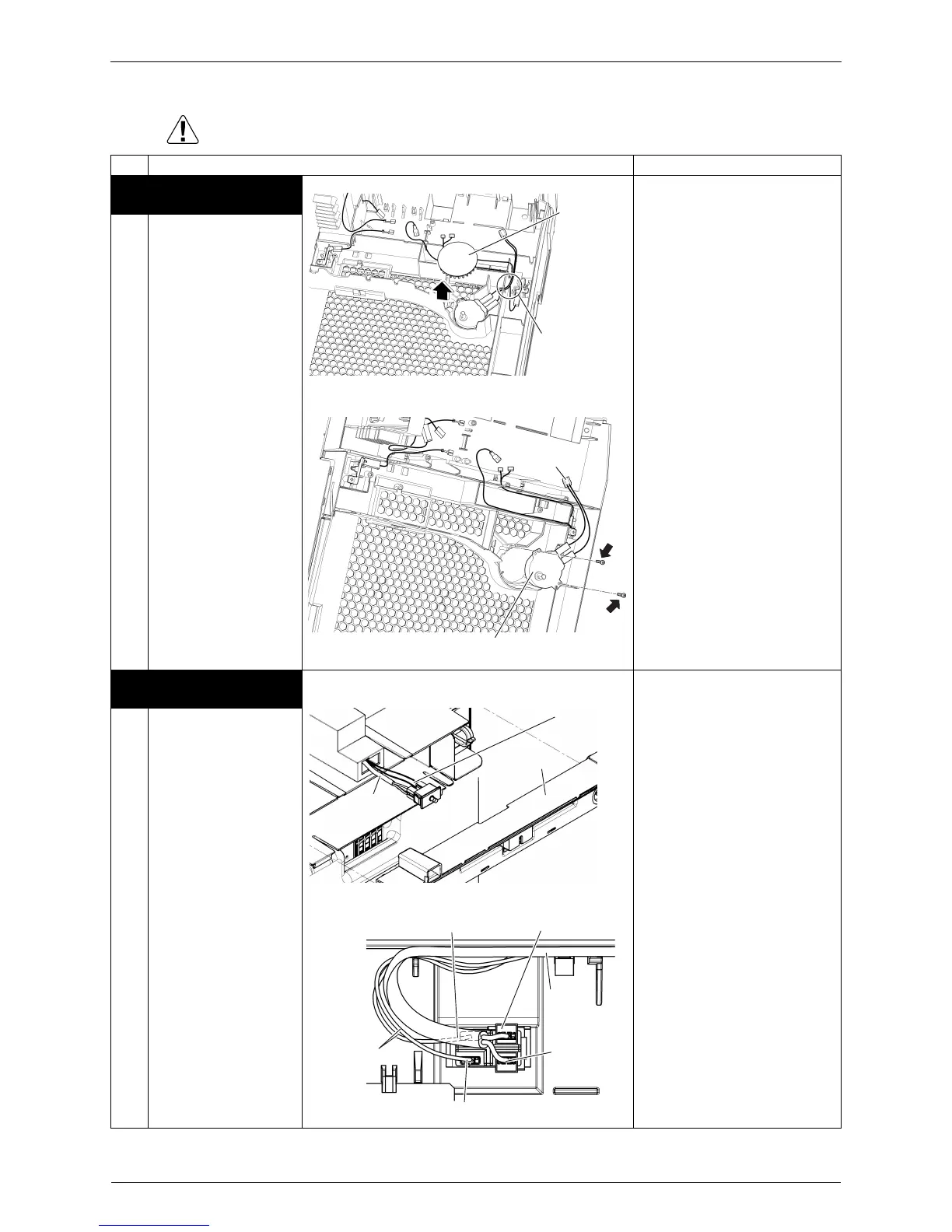

8.10 Removal of Humidifying Unit Gear
Warning Be sure to wait 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Removal of the
humidifying Unit
1
Lift up the humidifying
unit gear to remove.
2
Disconnect the
connector [S116].
3
Remove the 2 screws
and remove the
humidifying rotor.
2. Removal of the safety
switch
1
Remove the safety
switch.
(R9845)
Humidifying
unit gear
White (top)
Green (middle)
Black (bottom)
(R9846)
[S116]
Motor for the humidifying rotor
(R9847)
Safety switch wire
harness (black)
Switch cover
Power cord
(R9848)
2
4
Black (sleeve color : blue) Brown (sleeve color : blue)
Power
cord
Blue (sleeve
color : white)
1
3
Black (sleeve color : yellow)
Safety switch
2
4
