Removal Procedure SiBE81-909
88 Humidifying Air Purifier
8.7 Removal of Fan Motor
Warning Be sure to wait 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points

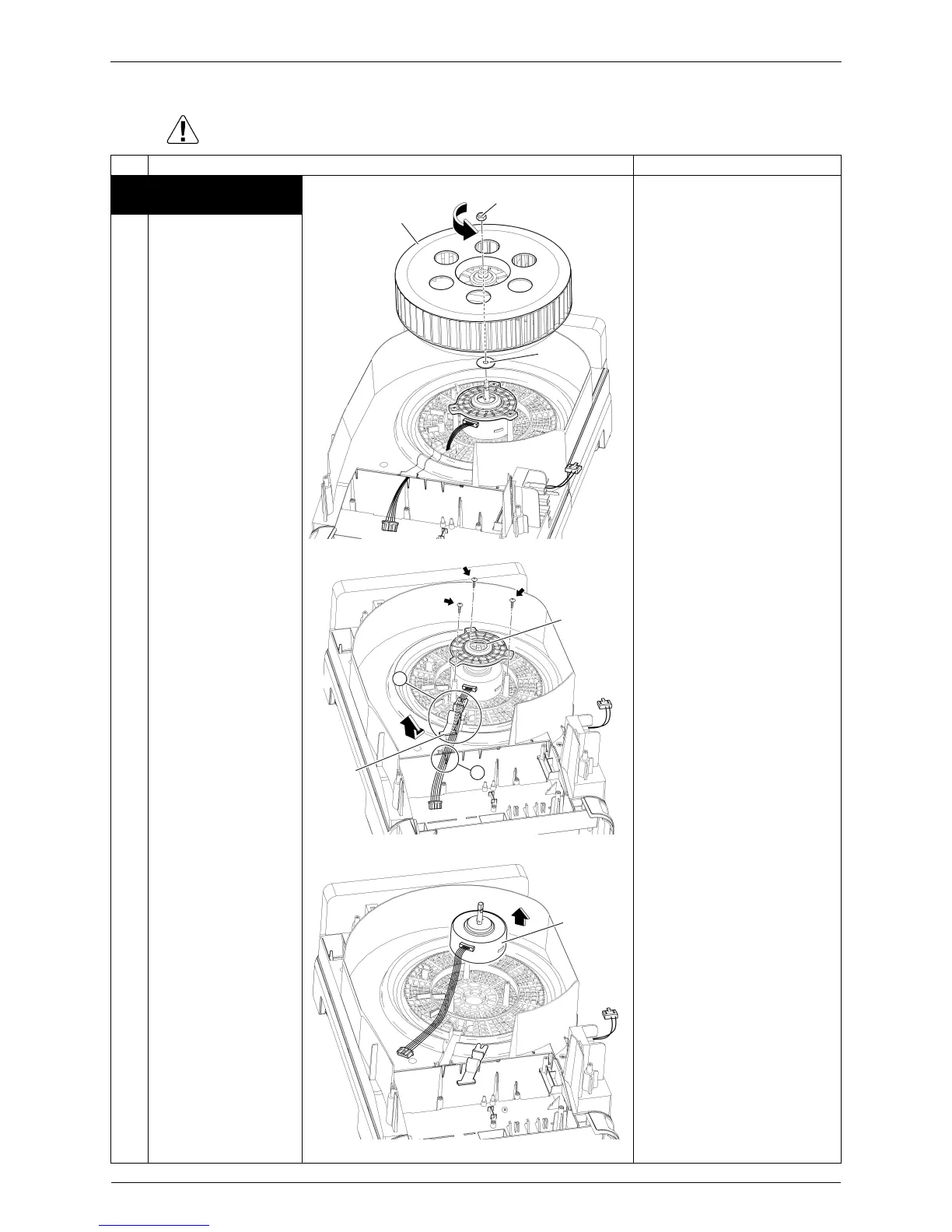

1. Removal of the fan
motor
1
Remove the nut (M13)
and pull out the sirocco
fan.
2
Pull the harness
retainer toward
yourself, and lift it up to
remove.
★
When assembling, put part A
first in the groove, and then
slide part B along the way.
★
When assembling, make
sure that the harness is not
too tight or caught in A.
3
Remove the 3 screws
from the fixing plate.
4
Take out the fan motor.
★
The motor and the harness
are integrated together.
★
Make sure no washers are
left behind the fan.
(R9834)
Sirocco fan
Loosen
M13
(Double spanner 10mm)
Washer
(R9835)
Fixing
plate
Harness
retainer
B
A
(R9836)
Fan motor
