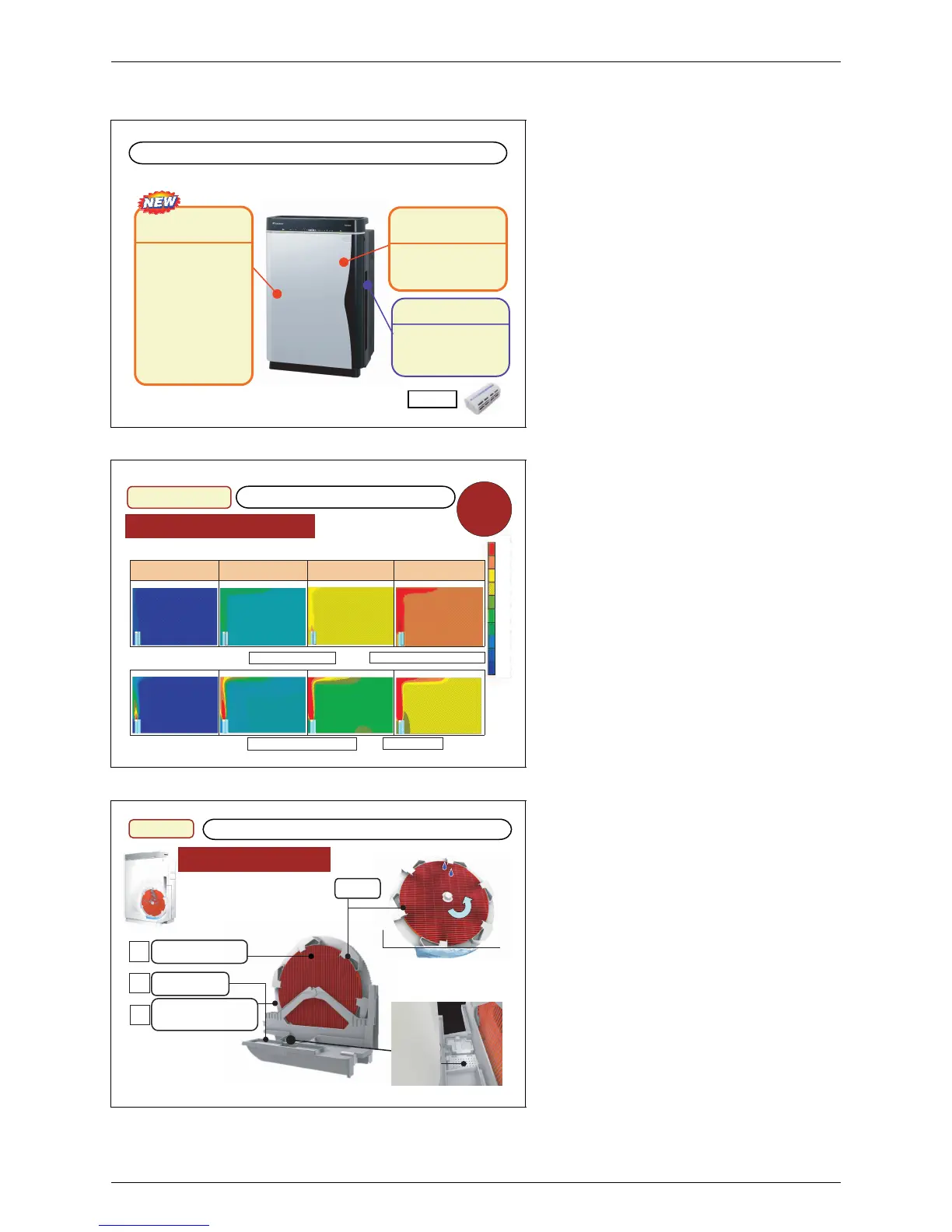

Humidifying Air Purifier 3
1. Introduction

Test condition: Air test room
(W 3700 × D 3700 × H 2400)
∗
equivalent to 13 m
2
room
Room temperature: 21°C measured with an existing
model, 27°C with a new model
“Clean Humidification”and “High Airflow Rate Purifying”are realized.
Full Humidification
Of course, deodorization is [full-scale]
3 features for “Clean
Humidification”
Max. humidifying
amount: 600mL/h
(Vaporization
humidifying system)
Slim tank capacity: 4L
Double path mixing structure
 Antibacterial humidifying filter
 Silver ion antibacterial effect

Unsoaking humidifying rotor
Full Dust Collection
High airflow rate suction dust
collection: 7.5m
3
/min
High hydrostatic thin-type fan
is equipped.
Full Deodorization
Photocatalyst & Streamer
discharge
+ Recyclable deodorizing
cartridge
Recyclable
Both “full humidification”and “full dust collection”can be used.
Speedy and rich humidifying into all corners
Full Humidification & Full
Dust Collection
Humidifying the room into all corners
by high airflow rate and new
vaporization humidifying system
Humidification comparison with the
humidifier
Optimum
humidification
can be
obtained only
by 15-minute
operation
♦When humidifying in turbo mode
(vaporization system)
At start 5 min. later 10 min. later 15 min. later
♦ When humidifying in low mode
(vaporization system)
Start humidifying evenly
Full moisturizing of the living space
Moisture flows to the upper space.
Slow speed
59.9
50.0
46.7
43.3
40.0
36.7
33.3
30.0
26.7
23.3
20.0
Clean design: 3 features for Clean Humidification
Full humidification
How to feed water
Water comes from the tank to the tray.
Using the proprietary [water feeding
system with waterwheel], the humidifying
filter does not soak in water, so that the
mildew proliferation and bad odor are
restrained.
Antibacterial
humidifying filter
Silver ion
antibacterial effect
Unsoaking / humidifying
rotor (Waterwheel built-in
humidifying structure)
1
2
3
Absorbs water
Waterwheel
Supply water
to the filter
Water surface
Silver ion eliminates bacteria
from water in the tray.
Water tank
Silver ion
Rotate
