Daikin MCK75JVM-K Service Manual

SiBE81-909 Removal Procedure
Humidifying Air Purifier 87
3. Removal of the high
voltage PCB
1
Disconnect the 3
harnesses (for
electrostatic earth :
green, red, white).
2
Disconnect the harness
(for dust collection :
green).
Remove the high
voltage PCB by
releasing the 2 hooks
and removing the 1
screw.
3

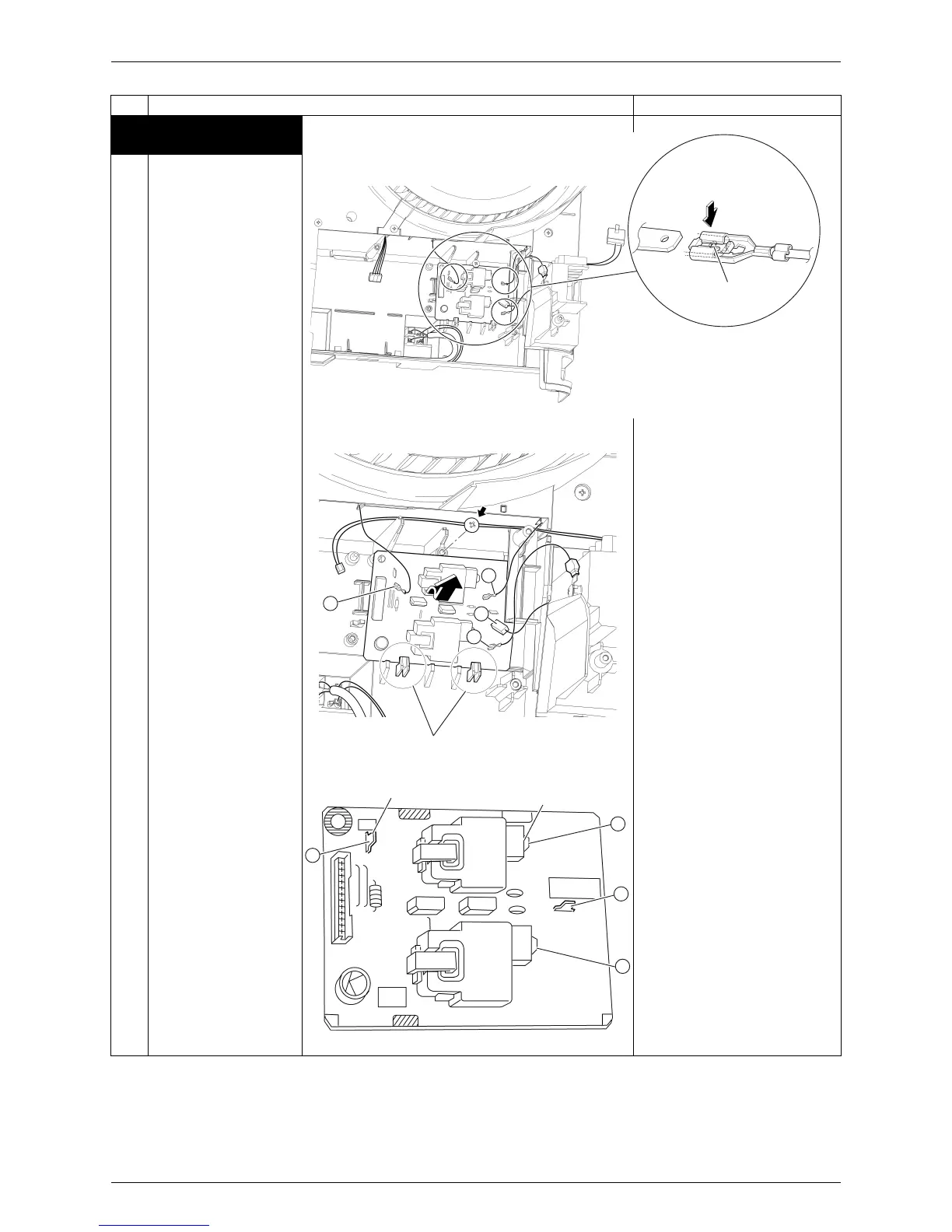

The figure shows the
high voltage PCB.
a 1
Harness (for electrostatic earth)
b 2
Harness (red)
c 3
Harness (white)
d 4
Harness (for dust collection)
Step Procedure Points
(R9831)
★
Zoomed up view of the
terminal.
Disconnect the terminals by
pushing the hook.
Hook
(R9832)
Hooks
a
b
c
d
(R9833)
Green
Red
a
c
b
d
}
for high voltage
