Daikin MCK75JVM-K Service Manual

Removal Procedure SiBE81-909
86 Humidifying Air Purifier
4

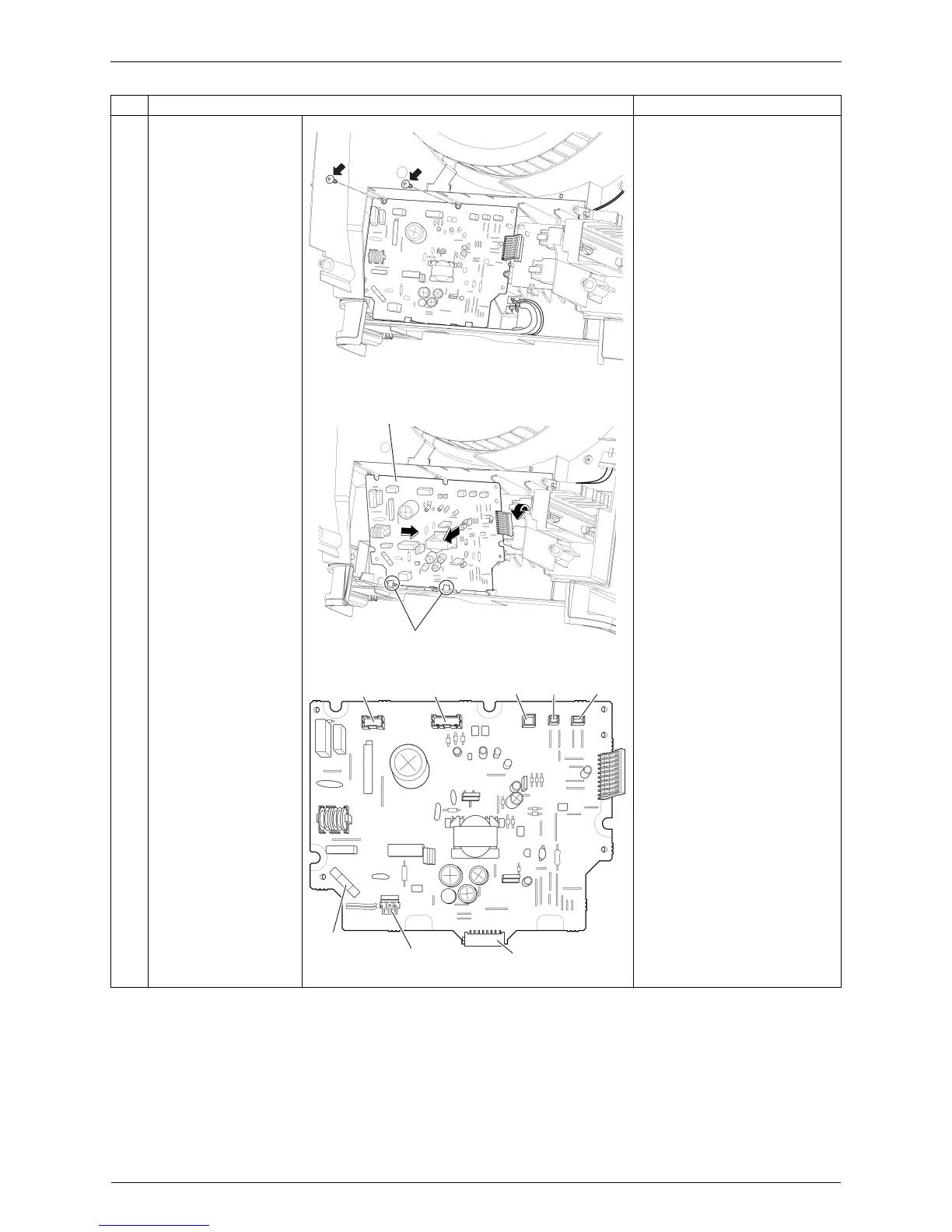

Remove the 2 fixing
screws.
5
Pull and lift up the
upper part of the power
supply / control PCB,
and undo the 2 hooks.
Then remove the PCB.
6
The figure shows the
power supply / control
PCB.
[S102] : Fan motor
[S108] : Safety switch
[S113] : Float (proximity sensor)
switch
[S114] : Limit switch
(regeneration of
cartridge)
[S115] : Limit switch (tray)
[S116] : Motor for the
humidifying rotor
[S118] : Connector for the
operation PCB [S128]
Step Procedure Points
(R9828)
(R9829)
Power supply /
control PCB
Hooks
(R9830)
[S116] [S102]
[S113] [S115] [S114]
[S108]
[S118]
[FU1(F1U)]
Fuse
250V 3.15A
