SiBE81-909 Removal Procedure
Humidifying Air Purifier 73
11.Removal of the
deodorizing catalytic
filter
★
Pay attention not to deform
the ground fittings when you
remove the deodorizing
catalytic filter.
1
Release the 2 hooks in
the deodorizing
catalytic unit lower
section after removing
the pleated filter.
2
Raise the deodorizing
catalytic filter from the
base and remove the
filter.
★
When assembling the lower
section of the filter in the
frame, bend and compress
the filter, and then install the
filter completely.
★
The deodorizing catalytic
filter can be removed, but do
not wash the filter in the
water, or the filter can not be
used.

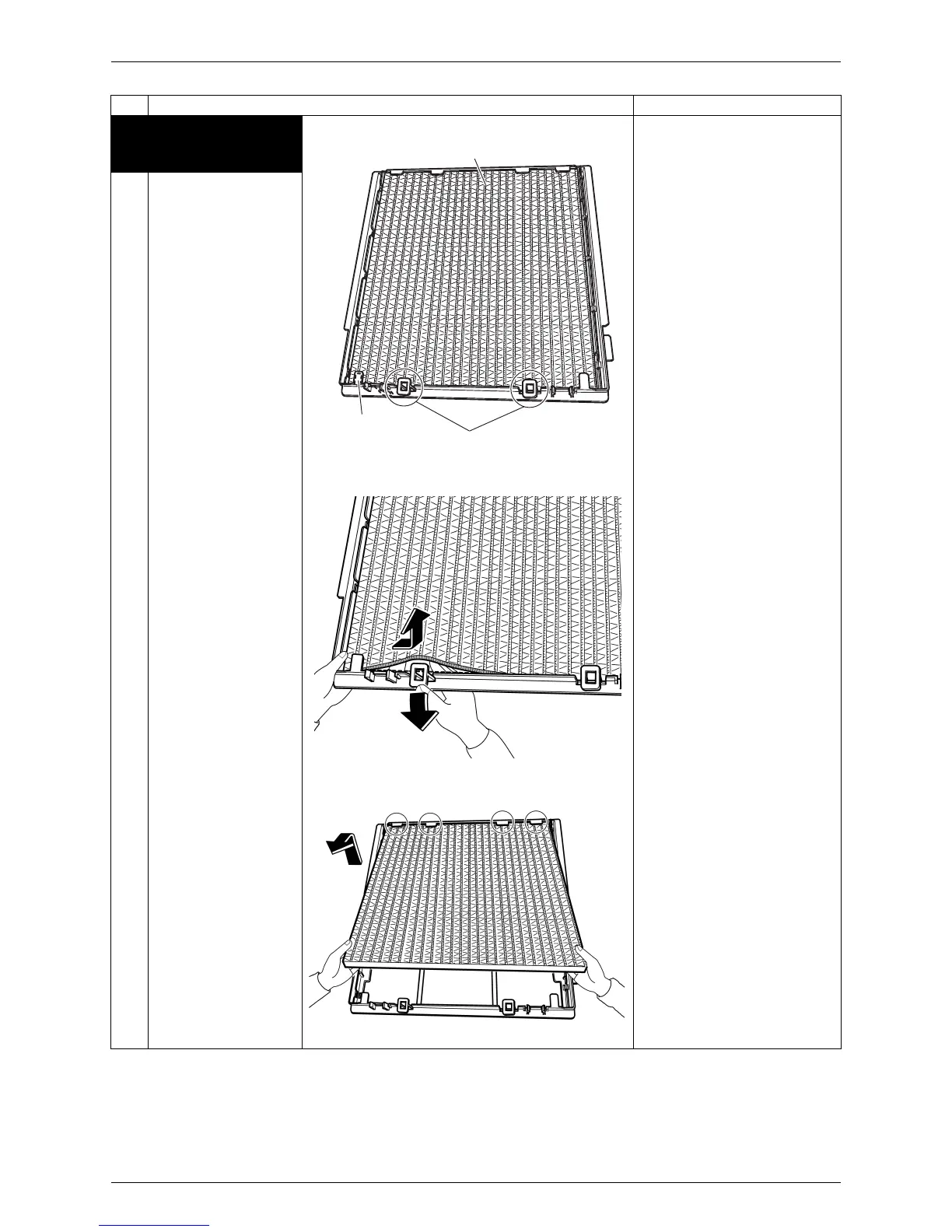

Step Procedure Points
(R9798)
Deodorizing catalytic filter
Ground fittings
(inside)
Hooks
(R9799)
(R9800)
