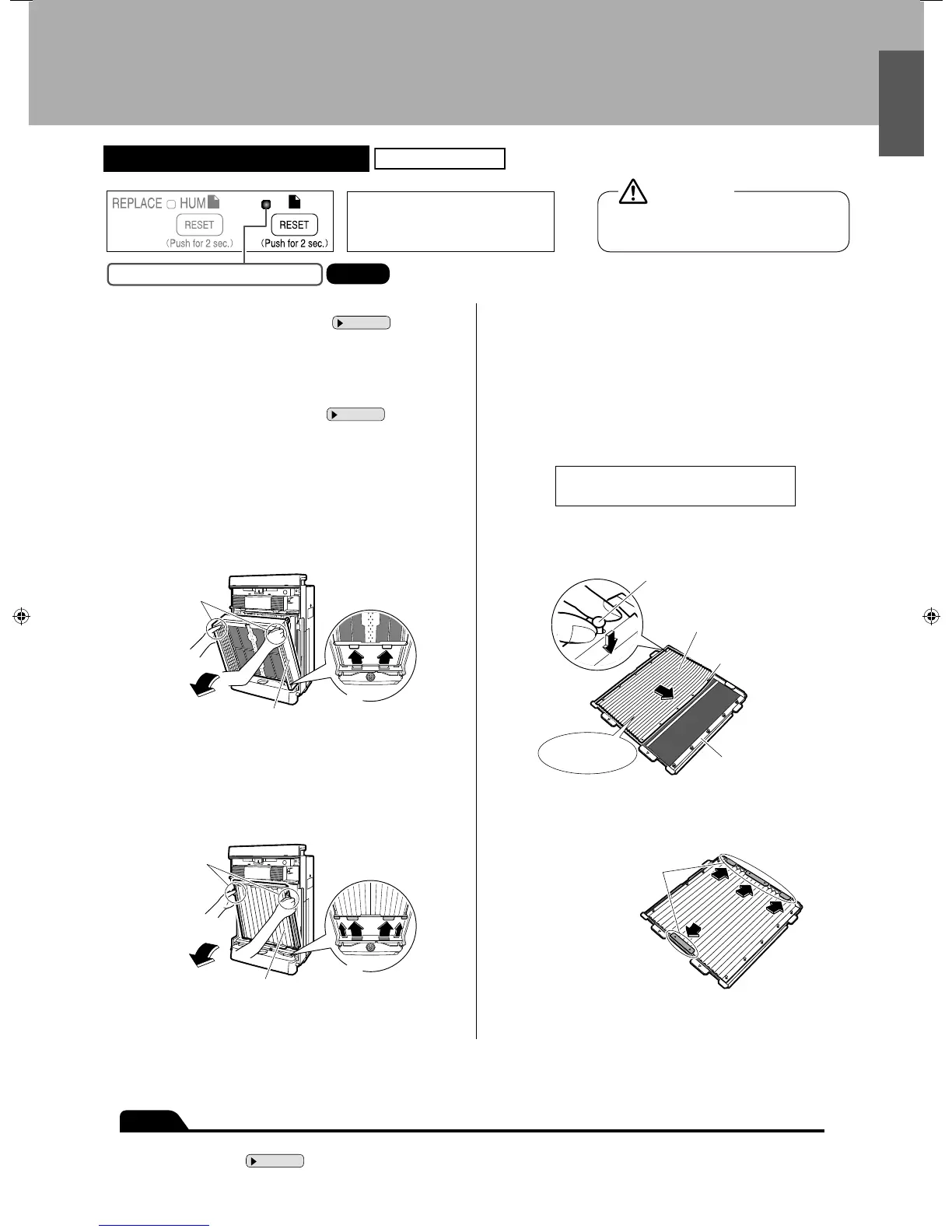

Replace
If the Air-purifying filter lamp lights or flashes
1
Remove the front panel.
Page 29.
2
Remove the water tank.
Page 29.
3
Removed the UNIT1.
Holding the UNIT1 by the handle, pull the UNIT1 upwards •
and out of the unit.
UNIT1
Handle
(1)
Pull
(2)
Up
4
Remove the deodorizing catalyst unit.
Holding the deodorizing catalyst unit by the handle, pull •
the deodorizing catalyst unit upwards and out of the unit.
Deodorizing catalyst unit
(1)
Pull
(2)
Up
Handle
5
Replace the pleated fi lter with a new fi lter.
Remove the used pleated fi lter.(1)
Release the pleated fi lter from the projections
•
(5 locations each) on the left and right of the
deodorizing catalyst unit (front side).
Take a new pleated fi lter from the fi lter (2)
storage area, remove it from its bag and
attach it to the deodorizing catalyst unit.
Attach the pleated fi lter with the white side
facing to the front.
Fit the projections (5 locations) on the left and right •
faces of the deodorizing catalyst unit into the holes
(5 locations) on the left and right of the pleated fi lter.
Deodorizing catalyst unit
Holes
(5 each on left and right)
Pleated filter
Projection
(5 each on left and right)
Face the white
side to the front
Insert the pleated fi lter underneath the tabs •
(4 locations) at the top and bottom of the deodorizing
catalyst unit.
Top and bottom
tabs (4 locations)
NOTE
If the deodorizing catalyst unit is dirty, suck up dust with a vacuum cleaner. If the plate is dirty, wipe off dirt with a piece of cloth or tissue ●
moistened with water.
Page 28.
For stubborn dirt, wipe with a cloth moistened with a neutral liquid detergent. (Do not rinse in water.)
Before performing maintenance, stop the •
unit and unplug the power supply cord.
The pleated fi lter does not need
replacing until the Air-purifying fi lter
lamp lights or fl ashes.
Pleated fi lter replacement
Cannot be rinsed in water
01_EN_3P234570-1.indd 3001_EN_3P234570-1.indd 30 10/28/2008 12:02:51 PM10/28/2008 12:02:51 PM
