IM 1267-7 • PRECISELINE AIR HANDLER 10 www.DaikinApplied.com
Rig units using straps or a sling with a loop and buckle. Fasten
strapping loop around the mounting brackets on the unit main
section (Figure 9 & Figure 10).
and/or an optional discharge plenum is attached, adjust to
balance the unit properly.
To avoid damage to the unit cabinet, use spreader bars. Position spreader
bars and position protective backing material to keep cables from rubbing
the frame, connections, or panels.
Before hoisting into position, test lift for stability and balance.
Avoid twisting or uneven lifting of the unit.

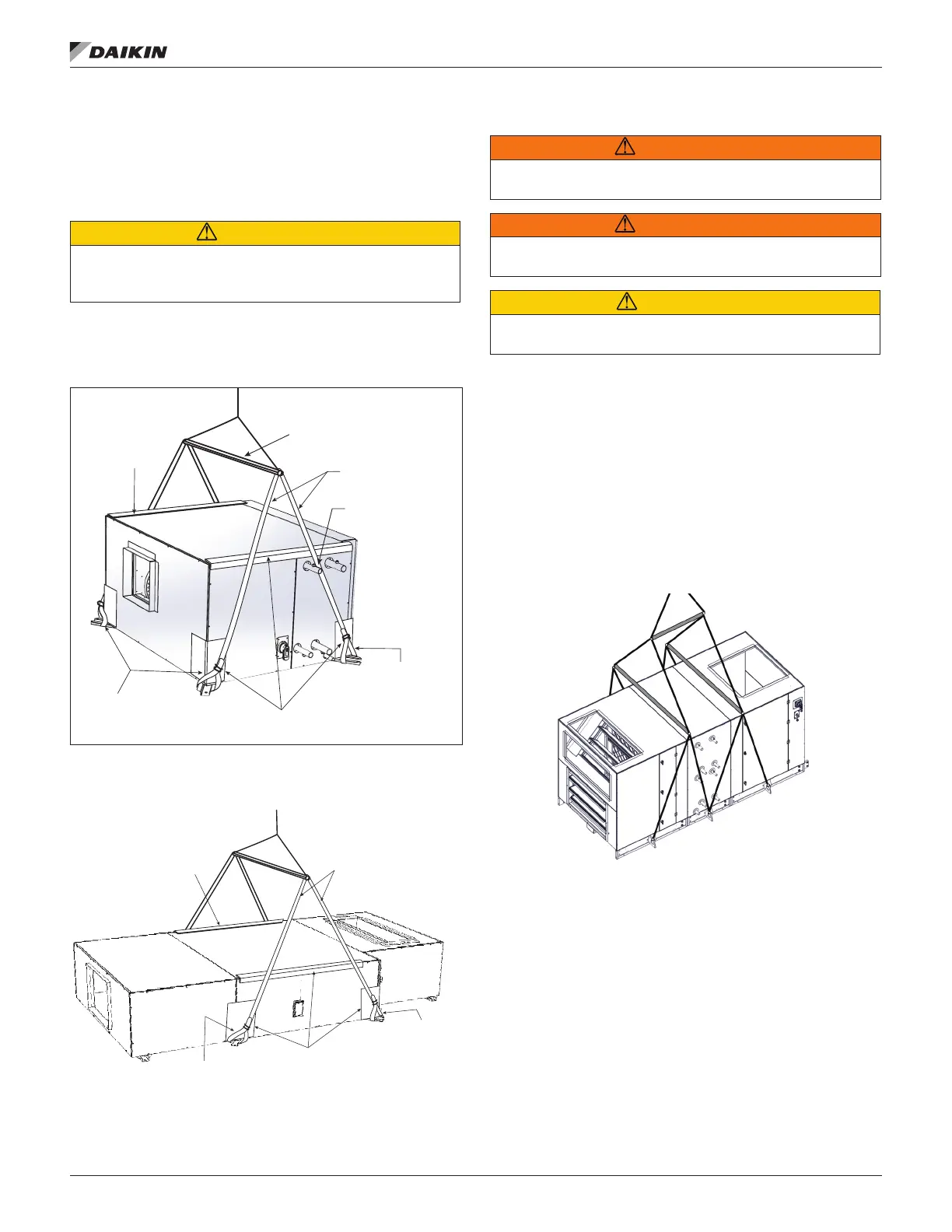

Figure 9: Rigged Main Unit - Size 030-050 Shown
Spreader Bar
Non-Abrasive Protective Backing Material
Non-Abrasive
Protective Strip
Lifting Straps
Loop and Buckle
Loop and Buckle
Use Caution So The
Lifting Straps Do Not
Put Stress On Pipes or
Any External Components
Figure 10: Rigged Main Unit with Optional Mix Box and
Discharge Plenum - Size 006-020 Shown
A licensed and/or professional rigger is responsible for developing a safe lift
plan to meet local/national/international codes.
Use all lifting points. Improper lifting can cause severe personal injury,
death or property damage.
Lifting points may not be symmetrical to the center of gravity of the unit.
Ballast or unequal cable lengths maybe required.
PreciseLine air handlers for sizes 060-100 ship completely
assembled. The unit must be rigged as it ships from the factory.
Do not assemble sections or modules at the site before rigging,
When a unit is provided with a factory-installed base rail, it
can be lifted using the 2" diameter lifting holes located in the
corners of each shipping section (Figure 11).
To prevent damage to the unit cabinetry, use spreader bars.
Position spreader bars to prevent cables from rubbing the
frame or panels. Before hoisting into position, test lift for
stability and balance. Avoid twisting or uneven lifting of the unit.
Figure 11: Rigged Fully Assembled Unit (Sizes 060-100)
Lifting points may not be symmetrical to the unit's
center of gravity. Ballast or unequal cable lengths
may be required.
Non-Abrasive Protective Backing Material
Non-Abrasive
Protective Strip
Lifting Straps
Loop and Buckle
To Next Page
