www.DaikinApplied.com 13 IM 1267-7 • PRECISELINE AIR HANDLER

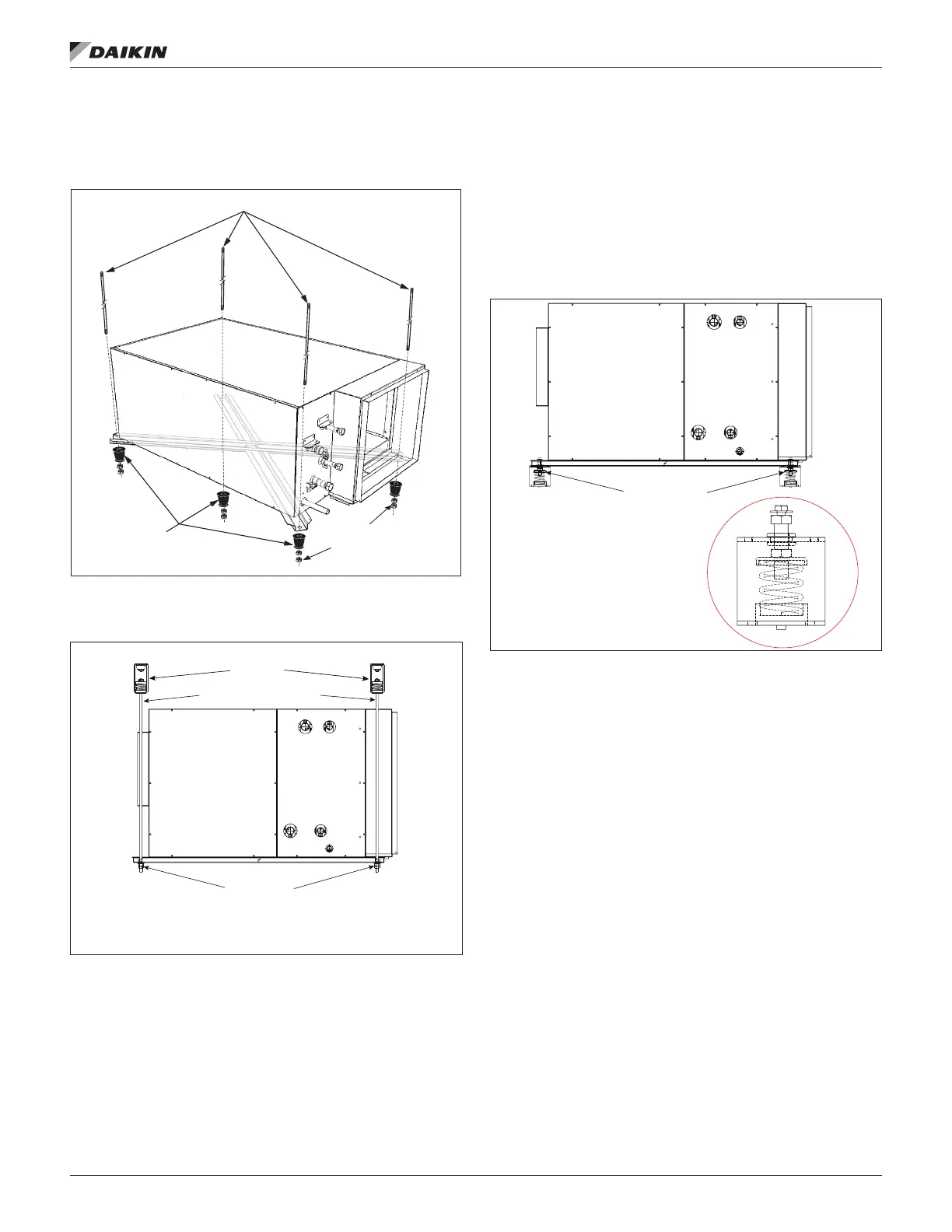

Figure 13: Ceiling Hung with Rubber Isolators - Unit Sizes
006-050 (Sizes 006-020 shown).
Hanger Rods (by others)
Factory Ordered
Rubber Isolators
Double Nut(s)
(by others)
Figure 14: Ceiling Hung Spring Isolation - Unit Sizes 030,
040, 050.
Hanging Rods (by others)
Double Nut(s)
Spring Isolators
(by others)
Note: Spring isolation is recommended on sizes 030, 040 and 050
as these units do not have any internal vibration isolation.
Unit Sizes
030, 040, 050
Factory ordered spring isolators are recommended for
horizontal units, sizes 030, 040 and 050. The isolators should
all be at the same height opening. If adjustments are required,
loosen the 5/16" capscrew on top of the isolator and turn the
adjusting bolt to lower or raise the unit base. Retighten the
capscrew when adjustments are completed. See Figure 15.
Figure 15: Floor Mounted Spring Isolation - Unit Sizes 030,
040, 050.
Spring Isolators
Unit Sizes
030, 040, 050
Detail
