www.DaikinApplied.com 5 IM 1267-7 • PRECISELINE AIR HANDLER
All PreciseLine mixing boxes ship attached, and horizontal
units ship with pre-attached discharge plenums. However,
the discharge plenum and/or mixing box may be removed if
necessary to navigate constricted passageways. Detachment
of these components requires removal of the screws on the
sides, top and bottom of the unit as shown in Figures 1 and 2.
If the unit must be turned over or tilted up to access the bottom
screws, care must be used to avoid damage.
Sharp edges can cause personal injury. Avoid contact with them. Use care
and wear protective clothing, safety glasses and gloves when handling
parts and servicing unit.
NOTICE
It is recommended all bottom screws be removed rst. If the unit must be
turned over or tilted up to access the bottom screws, care must be used to
avoid damage.

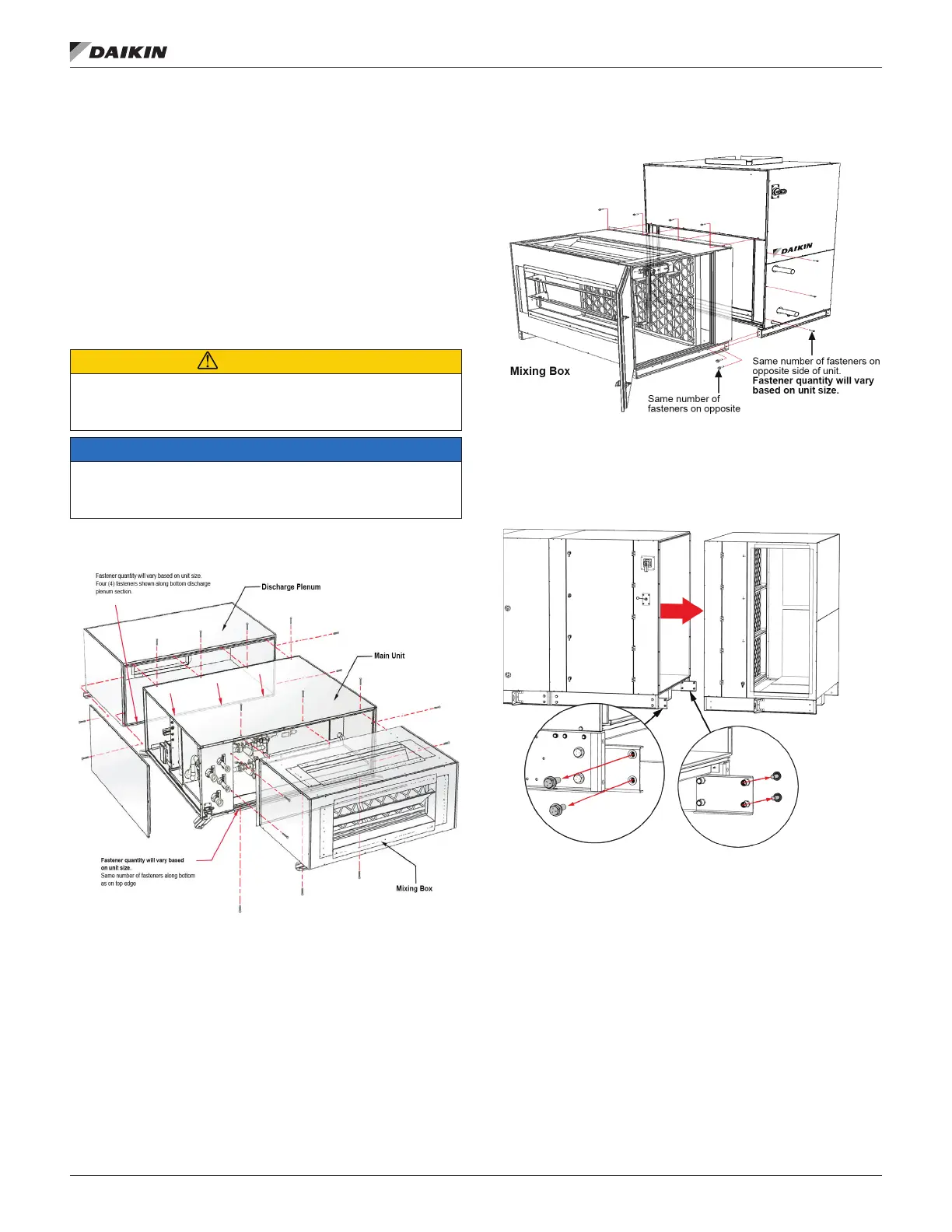

Figure 1: Horizontal Size 020 Unit - Disassembling
Optional Mixing Box and Discharge Plenum Example
Figure 2: Vertical Size 40 Unit - Disassembling Optional
Mixing Box and Discharge Plenum Example
Figure 3: Size 100 Unit - Disassembling Optional Mixing
Box
