III. Initial Installation
12 Dakewe (Shenzhen) Medical Equipment Co., Ltd.
www.dakewemedical.com

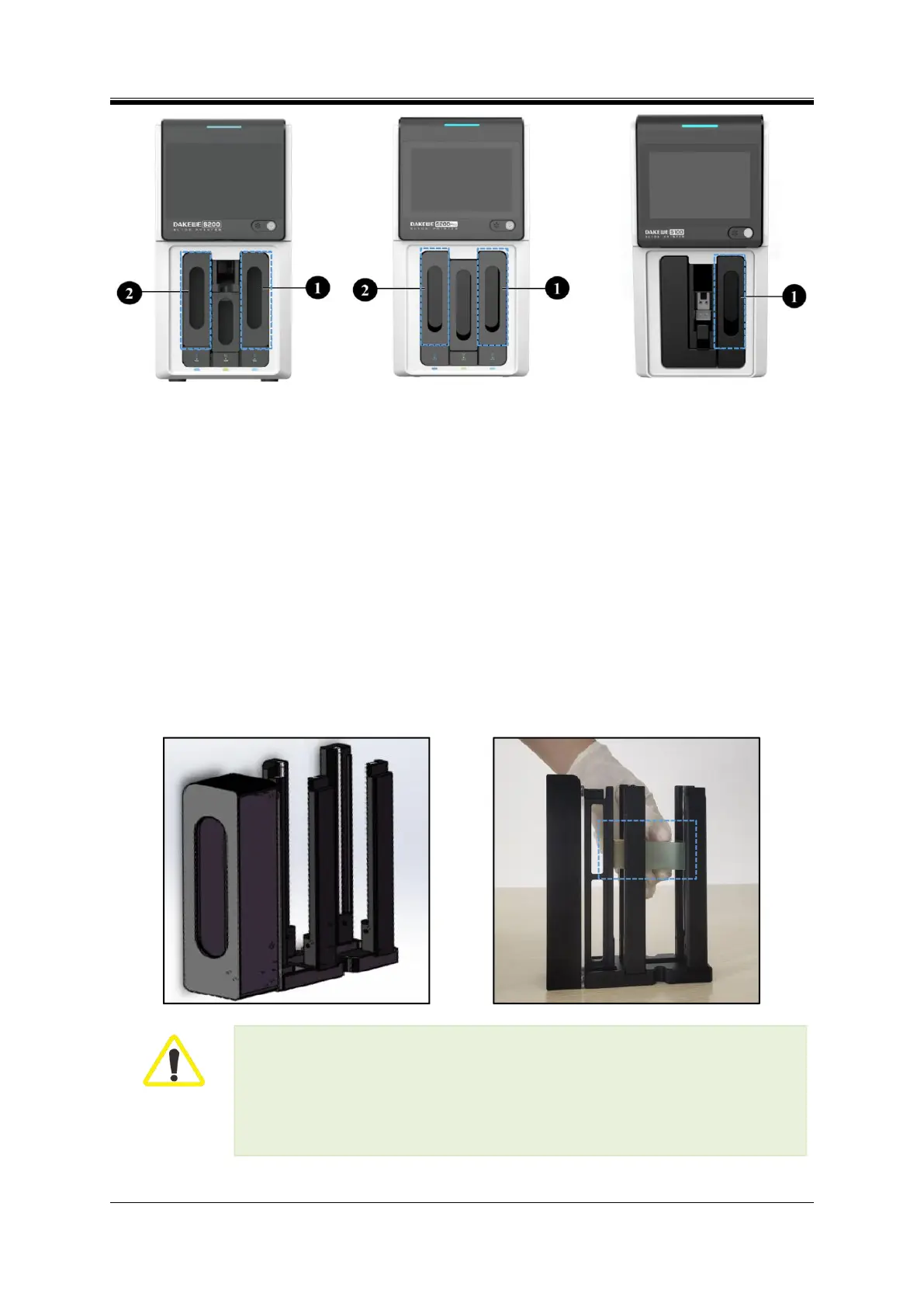

Figure3- 15 S200 Input hoppers
Figure3- 16 S200Pro Input hoppers
Figure3- 17 S100 Input hoppers
Before loading the slides, check that the slides are in good situation (no adhesion between the
slides,no broken slides, etc.).
Loading slides: Wear gloves and use the thumb and the rest of the fingers to hold the top and bottom
of the slides to keep it neat; put it in from the top of the columns and move it down vertically along the
columns (Figure 3-19).
When loading slides, pay attention to the orientation and front and back of the painted surface of the
slides, and load the slides strictly in accordance with the direction of the painted surface up and towards the
handle (Figure 3-20).
Figure3- 18 Input hopper A(Right)
Figure3- 19 Loading slides
The columns of the three hoppers are slightly different in structure. The input
hopper A (Figure 3-21) is low on the left and the right is high, and the input hopper
B (Figure 3-18) is high on the left and low on the right. Batch output hopper has
equally high columns. Three hoppers cannot be used exchangeably.
