Scoreboard Options
14
4 Scoreboard Options
Time of Day Mode
Time of Day (TOD) mode allows the scoreboard to function as a clock when no All Sport
signal is present. The instructions below DO NOT apply to ColorSmart models.
Note: TOD mode is available on scoreboards with driver rmware version 1.0 or higher.
Also, the scoreboard must have at least four clock digits.
To enable Time of Day mode:
1� Unplug the power cord from the scoreboard�
2� Access the scoreboard driver to which the clock digits are connected. Refer to the
component location drawings attached to the product specication sheets listed in
Appendix A.
3� At the bottom of the driver are two address
switches labeled “H” and “L.”
Record the position of both
switches here as they will need
to be returned to their exact
positions later:
4� Use a small athead screwdriver to move both
H and L address switches to the “F” position
(Figure 14). This will set the scoreboard driver to
Diagnostics Mode.
5� Reapply power to the scoreboard. If the driver
has successfully entered Diagnostics Mode,
the “RUN” LED (DS2) will be blinking at a fast
rate, about four times per second.
6� Rotate the L address switch to the “0” position
(Figure 15). The “232” LED (DS1) will blink to
show a change has been made:
• Three blinks = Time of Day Enabled
• Two blinks = Time of Day Disabled
7� To exit Diagnostics Mode, rotate the High
address switch (H) to any value other than “F.”
THIS STEP MUST BE PERFORMED TO SAVE THE TIME
OF DAY SETTING!
8� Set both address switches back to their original
positions as recorded in Step 3. Note that the
“RUN” LED (DS2) will now be blinking slower,
about once per second, and the scoreboard
will nish the power-up sequence to operate as normal.
To adjust the Time of Day settings, refer to the All Sport control console operation manual.
H
L

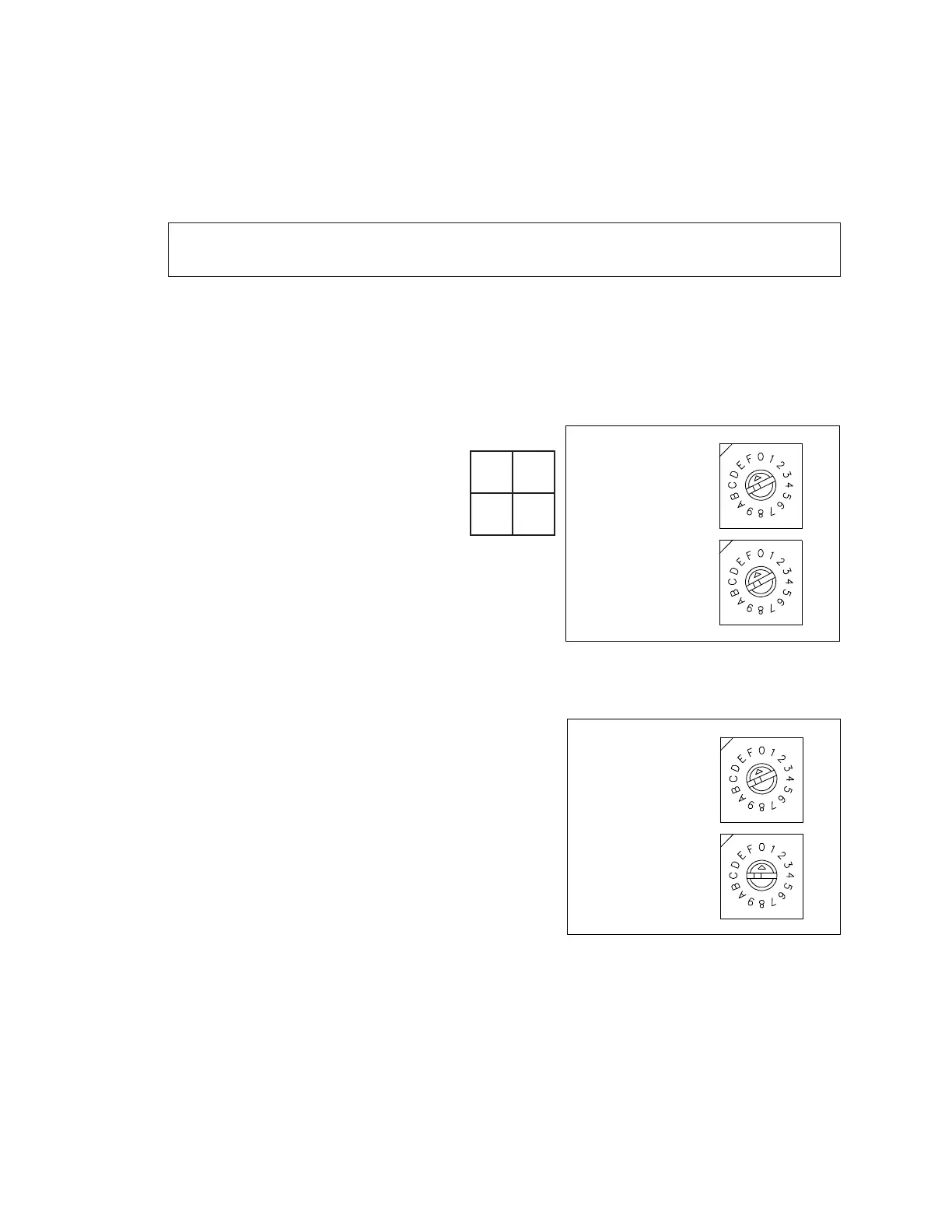

Figure 14: Address Switch Settings –
Diagnostic Mode
H
L
Figure 15: Address Switch Settings – Time
Of Day Mode Enable
H
L
