BASKETBALL SCOREBOARDS

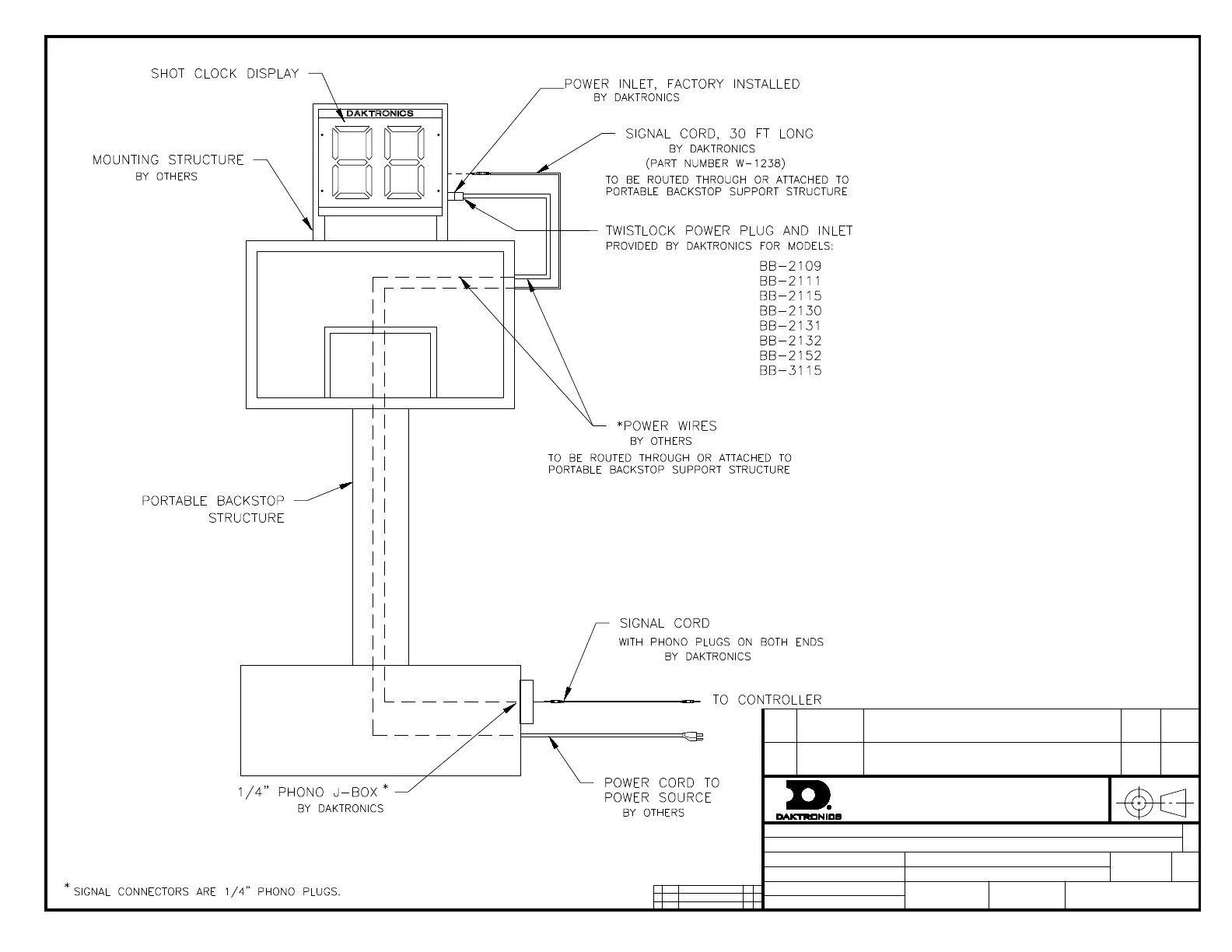

WIRING FOR SHOT CLOCK ON PORTABLE BACKSTOP
A VANBEMMEL
07 NOV 97
P1009 R 04 A
NONE
AVB
98293
05
REV DATE: BY:
01 10 FEB 98 DDL
ADDED NEW MODELS TO THE TABLE
REV DATE: BY:
02 29 JUN 99 AVB
DELETED TABLE. ADDED NOTE ABOUT BB-2015
REV DATE: BY:
03 09 DEC 10 JJD
CHANGED WIRING FORMAT
REV DATE: BY:
04 19 OCT 18 KDM
UPDATED MODELS THAT USE TWISTLOCK POWER PLUG
TO INCLUDE BB-2114, BB-3114, BB-3115, BB-2152, BB-2131
REV DATE: BY:
05 15 APR 19 KDM
REMOVED BB-2114/BB-3114 FROM LIST
