ALL SPORT 5000

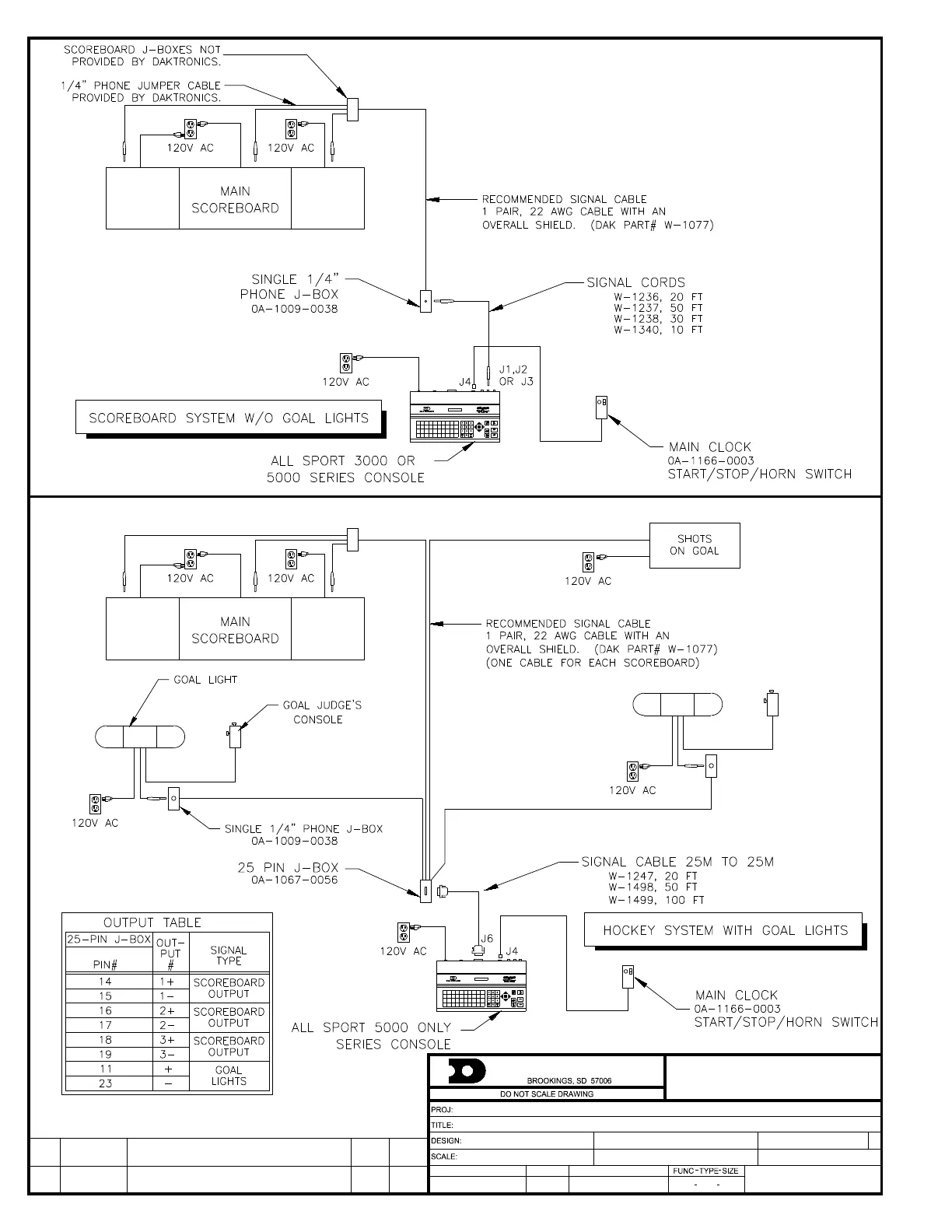

BLOCK DIAGRAM: A/S5000 HOCKEY
E BRAVEK 29 NOV 99
P1196 R
04 A
NONE
02
DATE:REV BY:
01 26 APR 00 DKD
ADDED A/S 3000
