MANUALE INSTALLATORE RELEASE 00.1 PAG. 3
INSTALLATION
The installation shall be performed in compliance with laws in force and following these
instructions. A wrong installation can damage persons, animals and things. The manufacturer
cannot be held responsible for any damage caused by wrong installation.
The machine must not be installed in places where water jets can be used. The machine must be
installed only in places where it can be used and maintained by skilled professionals.
After unpacking the machine, check it is undamaged and no parts are missing. If you are in any
doubt, do not use it. Packing elements shall never be left within reach of children, since these
elements are potentially dangerous.
Place the machine on a surface guaranteeing a secure support and adjust its feet so that it is
perfectly horizontal.
The machine weighs over 30 kg and cannot be lifted by one person alone.
Check that data on the identification plate match with those of the installation place before plugging the machine into
the electric system.

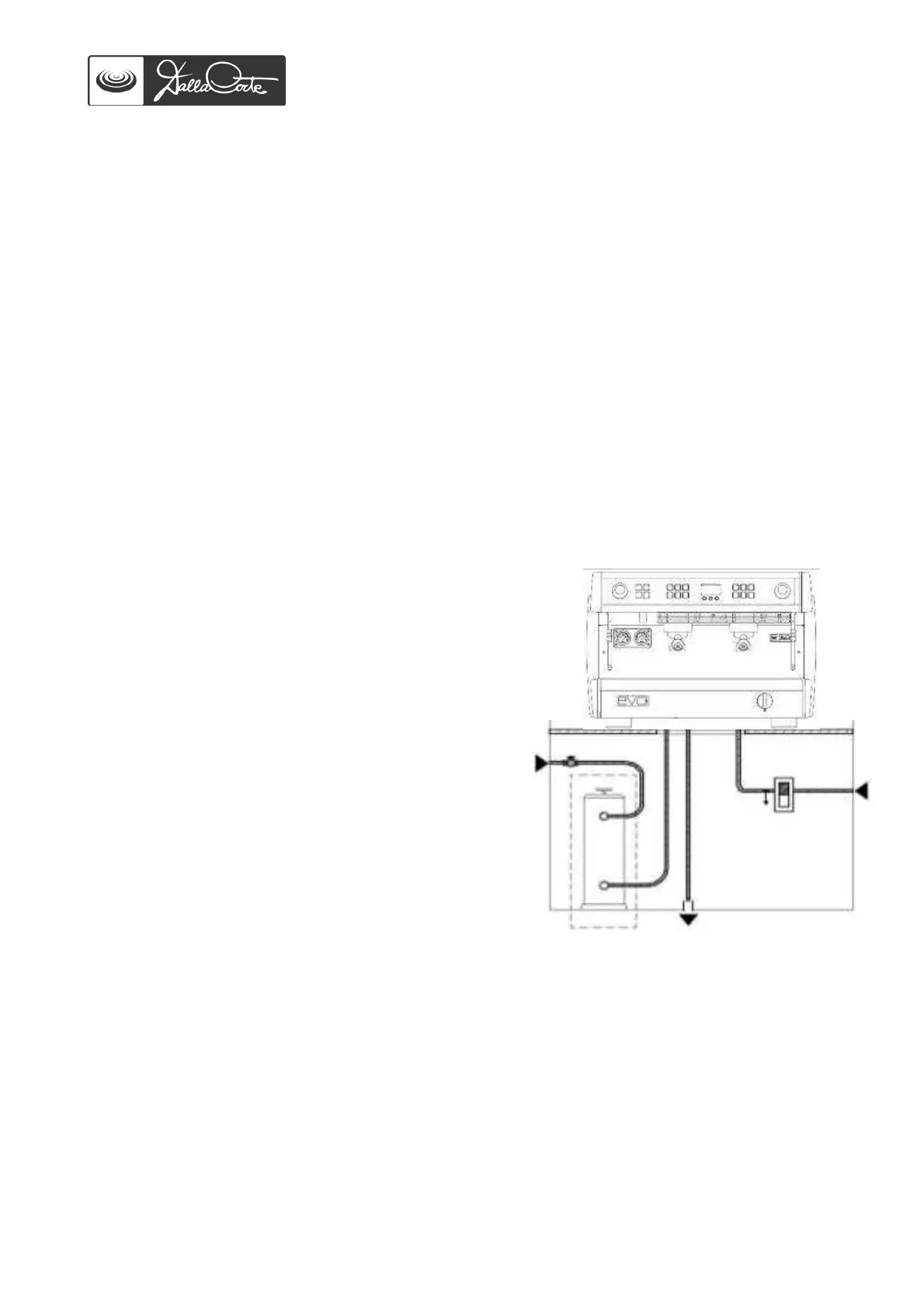

LEGEND
1. water tap
2. flexible water hoses
3. water softener (optional)
4. drain hose
5. drain siphon
6. electric supply cable
7. ON/OFF electric supply switch
A. opening on support surface
B. under counter space
Pic. 1
ELECTRICAL INSTALLATION
The machine is equipped with electric supply cable with no plug. Connect it to the electric system
with a switch 7-Pic.1 (see “setting up for installation” in the “USER AND MAINTENANCE MANUAL”
attached to the machine) ensuring an omnipolar disconnection of the machine from the electric
system; ensure the plug is compliant with national laws.
The above mentioned operation can be carried out in two configurations:
• Connection to electric system through direct link to switch 7-Pic.1
7
1
5
6
4
A
2
B
7
3
