Version 06 teledynedalsa.com/ipd 9

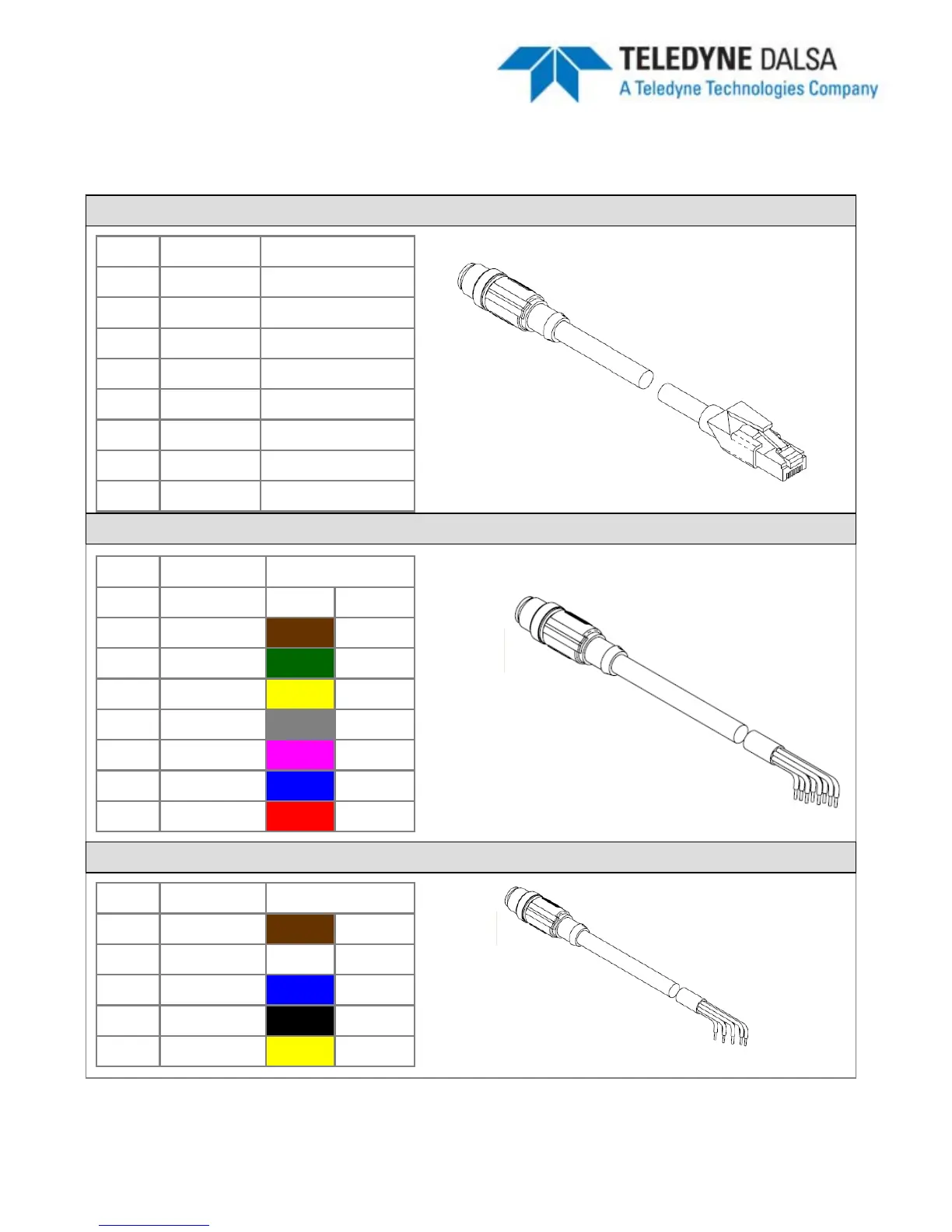

The BOA vision system is compatible with M12 factory cordsets
as show below:
Cable Pinouts
LAN Connector Pinout
and Cordset
A-CAB-BVS-E8S-X
I/O-PWR Connector Pinout
and Cordset
LAMP Connector Pinout
A-CAB-BVS-IO8S-X
A-CAB-BVS-L5S-X
Pin Name Color
1 TRIG White
2 PWR
Brown
3 IN0
Green
4 OUT1
Yellow
5 IN CMN
Grey
6 OUT0
Pink
7 GND
Blue
8 OUT CMN
Red
Pin Name Color
1 PWR
Brown
2 RS232 RX White
3 GND
Blue
4 STR
Black
5 RS232 TX
Yellow
Pin Name RJ45 Pin
1 PWR * 5
2 NC 7
3 GND * 8
4 TXD- 2
5 RXD+ 3
6 TXD+ 1
7 NC 4
8 RXD- 6
* For Passive Power over Ethernet
