1.2 Image Sensors
The image sensor used in your camera depends on the camera’s resolution and number of
taps.
1k, 2k, 4k (10 µm), 2 taps: IL-P1 (Figure 1)
2k, 4k (10 µm), 4 taps: IT-P1 (Figure 2)
4k (7 µm), 6k, 8k, 2 taps: IL-P4 (Figure 3)
4k (7 µm), 6k, 8k, 4 taps: IT-P4 (Figure 4)

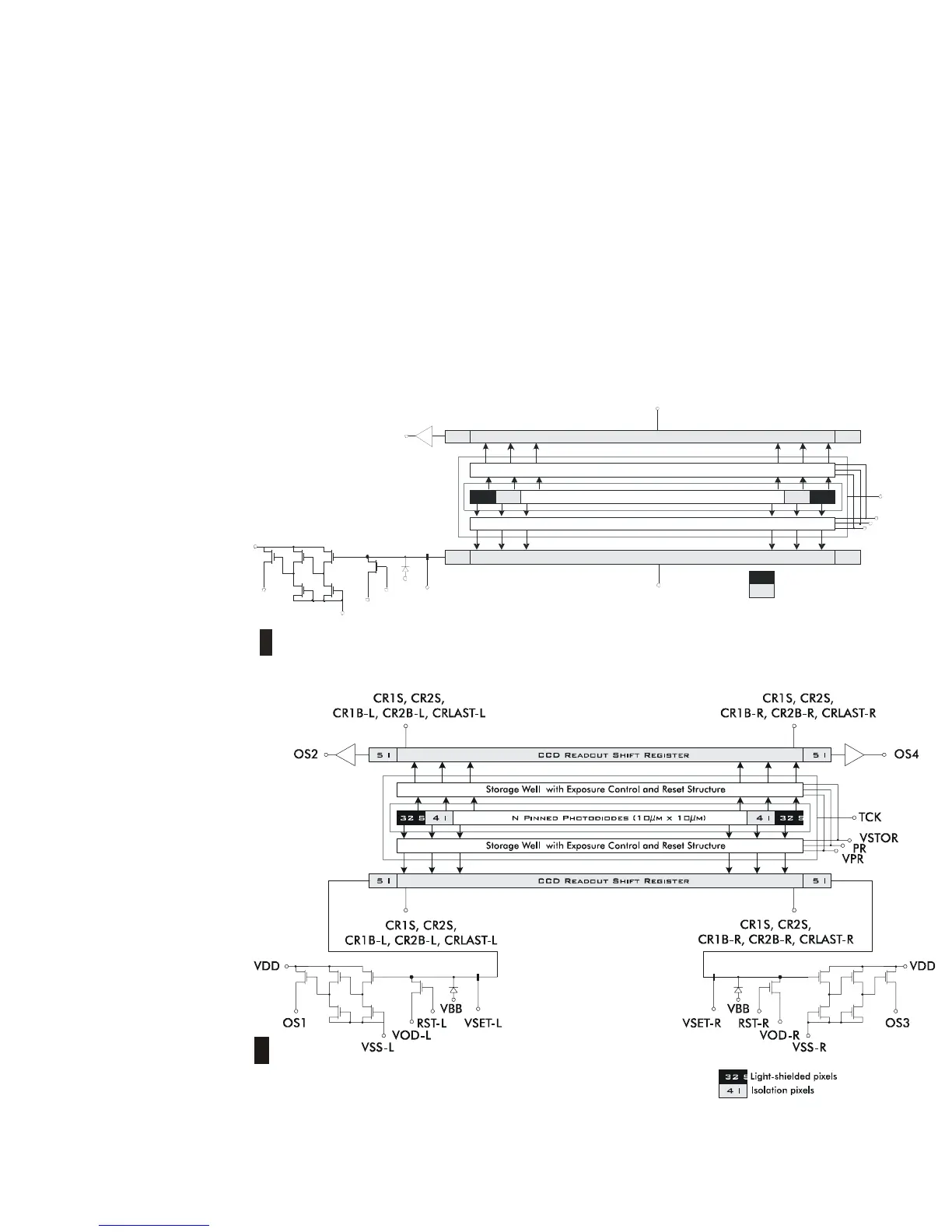

Figure 1: IL-P1 Image Sensor (1k, 2k, 4k (10 µm), 2 tap models)
N Pinned Photodiodes (10µm x 10µm)4 I32 S 4 I 32 S
CCD Readout Shift Register
CCD Readout Shift Register
5 I
5 I
4 I
4 I
TCK
PR
VPR
VSTOR
CR1S, CR2S
,
CR1B, CR2B, CRLAST
CR1S, CR2S,
CR1B, CR2B, CRLAST
VSET
VBB
RST
VO D
VSS
VDD
OS1
32 S
4 I
Light-shielded pixels
N = 1024 or 2048
Isolation pixels
OS2
St or age Well w it h Exposure Co nt rol and Reset St ruct ure
St or age Well w it h Exposure Co nt rol and Reset St ruct ure
Relative position of package Pin 1
1
Figure 2: IT-P1 4k Image Sensor (2k, 4k (10 µm), 4 tap models)
Relative position
of package Pin 1
1
N=2048 or 4096
