MECHANICAL INSTALLATION
Dana Incorporated IMM-0016EN - Installation and Maintenance Manual

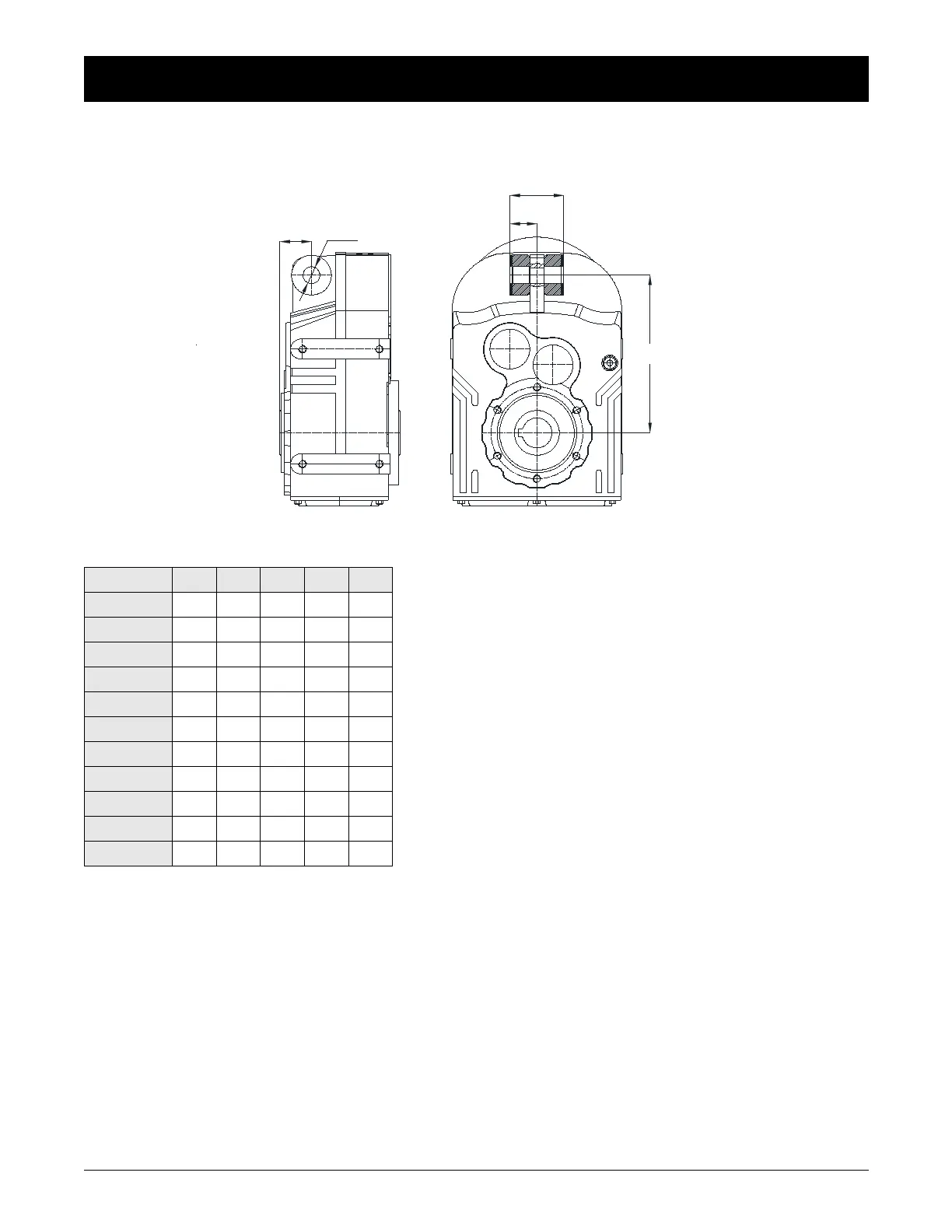

For the fixing bold position refer to the following dimensions
Table 11:
Type d b b1 h h1
D.07. 14 42 21 147 26.5
D.17. 17 54 27 158 31.5
D.27. 17 54 27 170 32
D.28. 17 54 27 198 40.5
D.37. 17 56 28 218 41
D.47. 22 80 40 278 50
D.57. 22 86 43 346 62
D.67. 26 110 55 395 70
D.77. 26 116 58 485 88
D.87. 32 160 80 550 110
D.97. 32 165 82.5 660 150
h1
b1
b
h
Ød
