Cinemix's SET menu
When you press Cinemix's Set (S4) switch, the LC Display
reads as follows:
By pressing SetM (S1) all MUTE switches will mute.
Pressing ResetM (S2) all mute switches will un-mute.
AUTOMATION.
Paragraph 12.0 PowerVca automation will outline the setup and use of D&R's
PowerVCA SMPTE based Automation. Since this section of Cinemix's manual
is an insert, the page numbers will not be in sequence with the balance of this
manual. Optional PowerFade (D&R's moving fader automation) is available,
however not discussed in this section.
ARM/SET FOR AUTOMATED JOYSTICKS.
A unique feature in Cinemix are the two automated joysticks with its Virtual
Vision concept of showing you the position of the audio signal when controlled
from D&R's PowerVCA automation.
The "Set-up" switch serves actually the same purpose as the ARM switches in
the modules.
ASSIGNING A CHANNEL TO A JOYSTICK
To assign a channel to a Joystick follow the next steps.

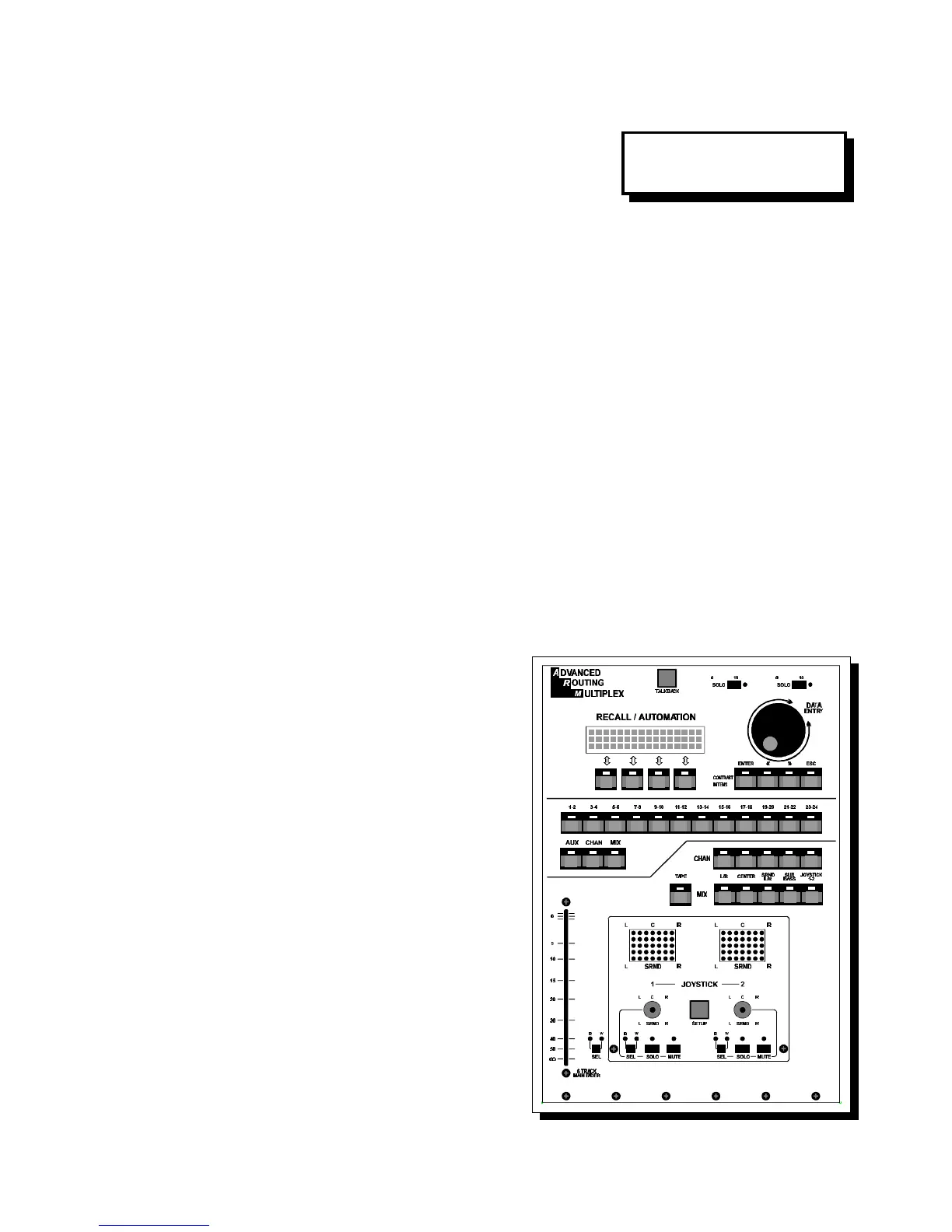

a. depress an ARM switch in a module
and be sure that no master routing switch such
as L/R, Center, SRND L/R, is assigned at that
moment.
b. Joystick 1 output corresponds with
the CHAN routing section and Joystick 2 output
with the MIX routing section below the black
12 ARM routing switches.
c. Now pan in the module fully left
(joystick 1) or fully right
(joystick 2) and assign the corresponding
joystick switches (top row is Joystick 1 and
lower row is Joystick 2). let's assume you want
to use Joystick 1.
d. Pan fully left in the module (either
Chan or Mix path) and depress the upper or
lower yellow Joystick assign switch.
The module's signal path is now assigned to the
joystick input (either 1 or 2).
Cinemix manual page: 16
-Setup-
SetM ResetM Mod Dyn
