PATCHBAY SECTION
5.0 Patchbay description
The recessed patchbay section is built around Bantam type tiny telephone jack
sockets. Cinemix's patchbay is completely modular and can be expanded as your
budget allows. If you order a large frame down-loaded with less modules, the
patchbay can be expanded as you order more input modules or ordered
complete. All master inputs / outputs and 256 tie lines (for signal processing) are
standard when you order the patchbay. The entire patchbay is wired balanced
and internally "star-ground" wired. Each row of CHANNEL and MIX patch
points are followed by the TAPE
inputs and outputs.

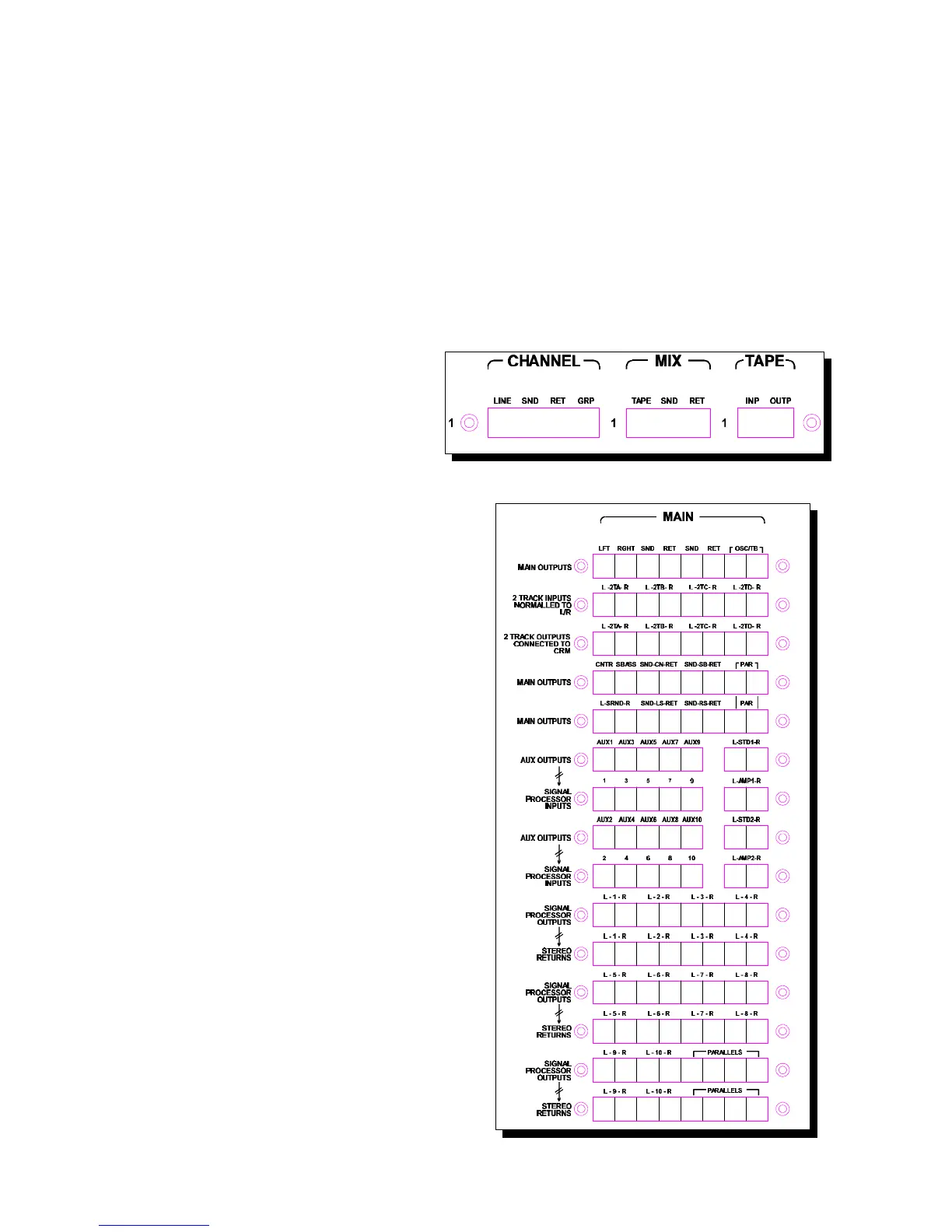

5.1 Patchbay - points
Channel patch points from left to
right are: Line input - CHANnel
insert Send & Return - Grp
(group) output - MIX (from tape) input - and Mix insert Send & Return . The
tape input and outputs are normalized to
Group outputs and MIX inputs.
The master section contains fifteen rows
of Bantam type jacks.
Row 1: Left/Right master outputs, insert
send & returns, and Osc/TB.
Row 2: Tape or mastering machines A, B,
C, D inputs normalled to left and right
outputs.
Row 3: Tape or mastering machines A, B,
C, D, outputs left & right inputs.
Row 4: Main outputs Center/Subbass,
Send/returrn of Center, Subbass, and two
parallels.
Row 5: Main outputs Left/Right Surround
with inserts, and two parallels.
Row 6: Aux 1/3/5/7/9 ans Studio 1
left/right.
Row 7: Signal processor inputs (normalled
to Aux1/3/5/7/9 outputs) and Studio amps
inputs left/right (normalled to Studio 1
outputs).
Row 8: Aux 2/4/6/8/10 outputs
normalized to signal processor inputs (on
the next row), Studio 2 left/right outputs
(normalized to AMP2 inputs).
Cinemix manual page: 41
