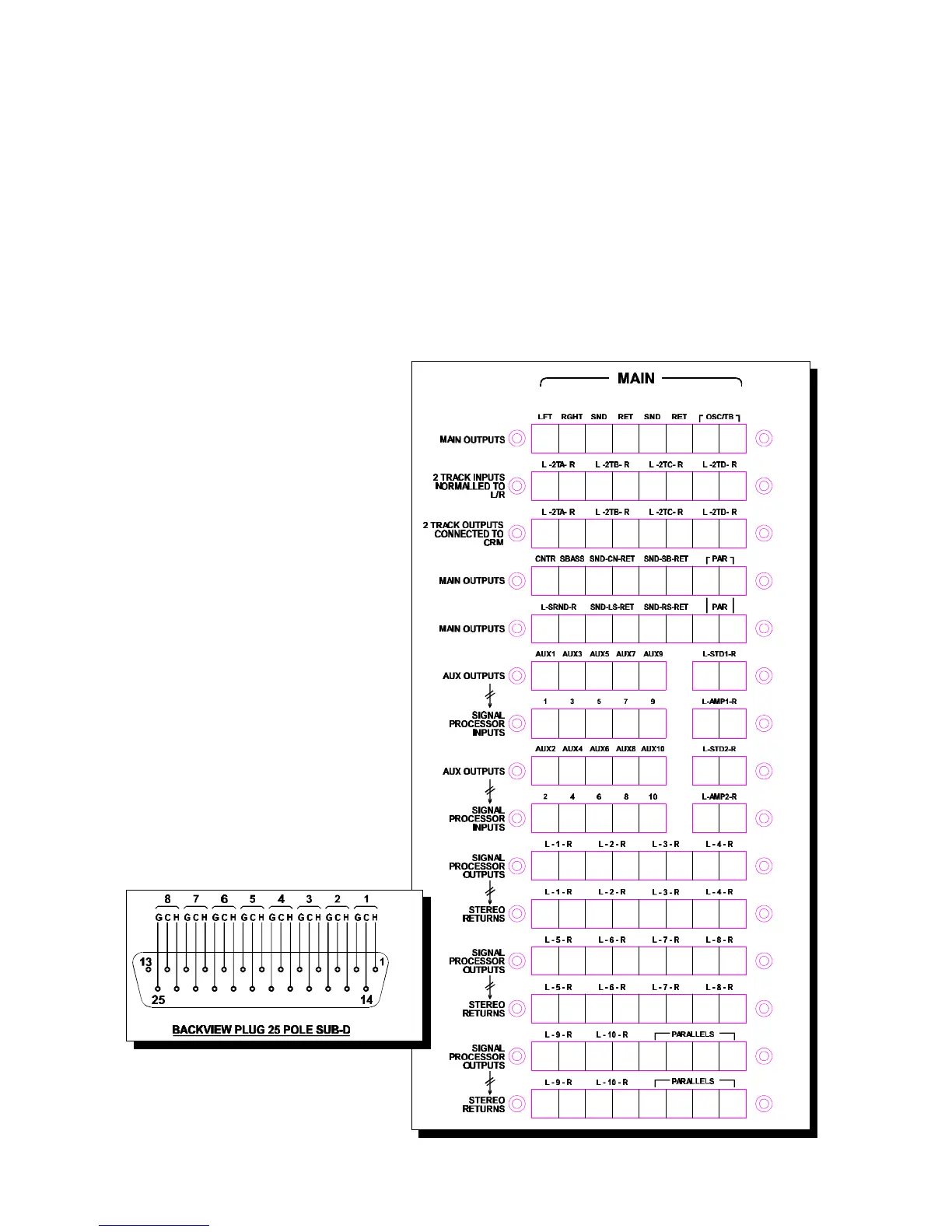

Row 9:Five signal processor inputs normalized to Aux 2/4/6/8/10 outputs, and
Studio amp2 inputs (normalized to Studio2 outputs).
Row 10: Four stereo signal processor outputs normalized to the stereo return
modules.
Row 11: Four stereo return inputs (normalled from signal processor outputs).
Row 12: Four stereo signal processor outputs 5-8, internally normalled to dual
stereo return modules.
Row 13: Stereo retrun 5 to 8 inputs (normalized from signal processor outputs
5-8.
Row 14: Stereo signal processor outputs 9-10 plus 4 paralleled jack sockets
Row 15: Stereo returns 9-10 normalled to signal processor outputs 9/10
Cinemix has 256 tie lines
mounted in 32 rows of eight.
The tie lines are patch- ing the
inputs and outputs of any
signal processing equipment.
For ease of use, all outputs are
blue sockets, and all inputs are
black sockets. The blue and
black jack sockets can be
interchanged for use with any
equipment other than normal
stereo (two inputs and two
outputs) devices. All
interfacing with external
machines, effects processors,
or amplifiers can be
accomplished via the
connector panel (rear of
master section) and via the 25
pin sub "D" connectors on the
patchbay connector panel.
The wiring from the 25 pin sub
"D" connector to the jack
sockets are identical for inputs
and outputs.
G=Ground
C=Cold (out of phase)
H=Hot (in phase)
Cinemix manual page: 42
