4.4 STEREO A / B STATUS SECTION - USING ARM

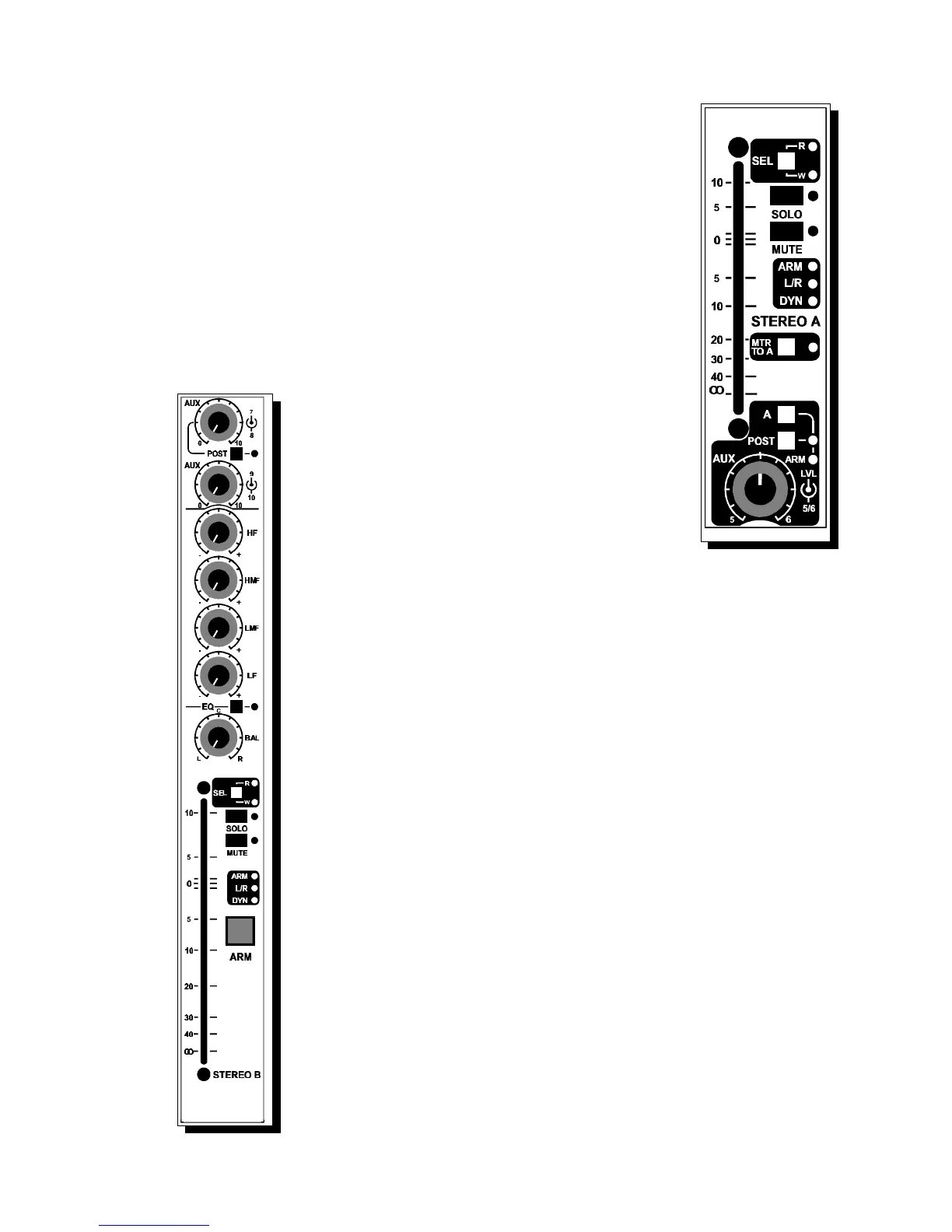

There is a white section with LED's that indicate when the ARM system
is active and let you know what is routed. The section has three LED's;
yellow, green and green. These three function indicators are associated
with the total modules routing status. When one of these leds are on, it
indicates that in the master ARM section signals are routed. The local
ARM switch, when pushed, gives information in the master section what
is routed to what output.
MTR TO A CHAN
The MTR TO A switch and LED allows for changing the meters inputs
to follow the Stereo A input signals (normally following the Stereo B
inputs).
4.5 AUX 5/6
AUX 5/6 can be sourced from either the Stereo B section
or the Stereo A section by its local source switch labelled
"A". Aux 5/6 is a stereo Aux send with level and pan
control, switchable pre/post the stereo faders from stereo A
or B section.
On top of all these features it is also possible to route the
outputs of this stereo Aux send to the busses via the ARM system.
The ARM LED indicates when AUX 5/6 is assigned to one or more
of the digital routing busses.
AUX 7-10 Send Section
Aux 7 through 10 are always in the Stereo B path. Aux 7 - 10 are
dual concentric controls with 7/9 being the top knob and 8/10 the
bottom knob.
Aux 7/8 is switchable pre/post Stereo B fader. Aux 9/10 is always
post stereo B fader.
4.6 Equalizer section
The D&R design team opted for a four band fixed frequency
equalizer on the STEREO B input path. The selected frequencies
produced the most musical sounding results.
HF 10kHz
The HF (high frequency) section has shelving characteristics with a
boost or cut of 16dB at a fixed frequency of 10kHz.
HMF 5kHz
The HMF (high mid frequency) section has bell curve
characteristics with a boost or cut of 16dB at a fixed frequency of
5kHz.
LMF 250Hz
The LMF (low mid frequency) section has bell curve characteristics
with a boost or cut of 16dB. This band has a fixed frequency of
250 Hz.
Cinemix manual page: 38
