10.0 CONNECTORS
10.1 Master Section

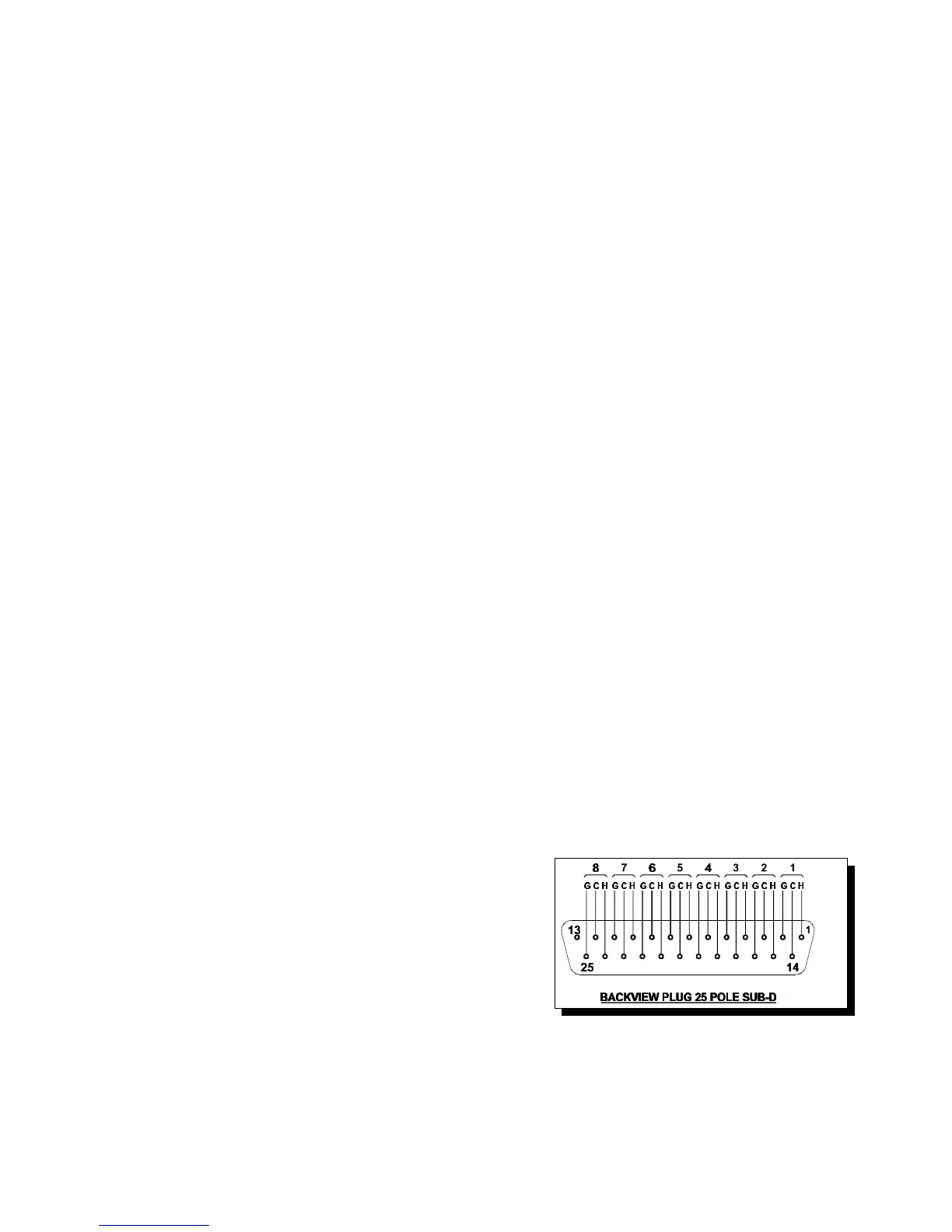

CRM main connector is a 25 pole female Sub D
1 = CRM 1 left, in phase
14 = CRM 1 left, out of phase (ground compensated)
2 = Ground
15 = CRM 1 right, in phase
3 = CRM 1 right, out of phase (ground compensated)
16 = Ground
4 = CRM 2 left, in phase
17 = CRM 2 left, out of phase (ground compensated)
5 = Ground
18 =CRM 2 right, in phase
6 =CRM 2 left out, of phase (ground compensated)
19 =Ground
7 = CRM center, in phase
20 = CRM center, outof phase (ground compensated)
8 = Ground
21 = CRM surround left, in phase
9 = CRM surround left, out of phase (ground compensated)
22 = Ground
10 = CRM surround right, in phase
23 = CRM surround right, out of phase (ground compensated)
11 = Ground
24 = CRM sub bass, in phase
12 = CRM sub bass, out of phase (ground compensated)
25 = Ground
CRM 2 / 3
CRM 2,3 XLR male
1=gnd
2=in phase
3=out of phase (ground compensated)
Cinemix manual page: 52
