D&R CinemIX - Page 56

MIDI CONNECTORS
MIDI IN Din Conn. 1= none
2= none
3= none
4= to midi in +
5= to midi in -
MIDI THRU Din conn. 1= Ground
2= Ground
3= Ground
4= to midi thru +
5= to midi thru -
MIDI OUT Din conn. 1= Ground
2= Ground
3= Ground
4=Midi Out +
5=Midi Out -
ASYNC. INTERFACE 25 pole sub D
Connection is a one to one flatcable to D&R's own PC interface card
24 TRACK STEMS INPUTS
There are 6 Sub-D connectors on the
master back panel that n eed to be wired
to the direct and playback outputs of the
Stems recorders.

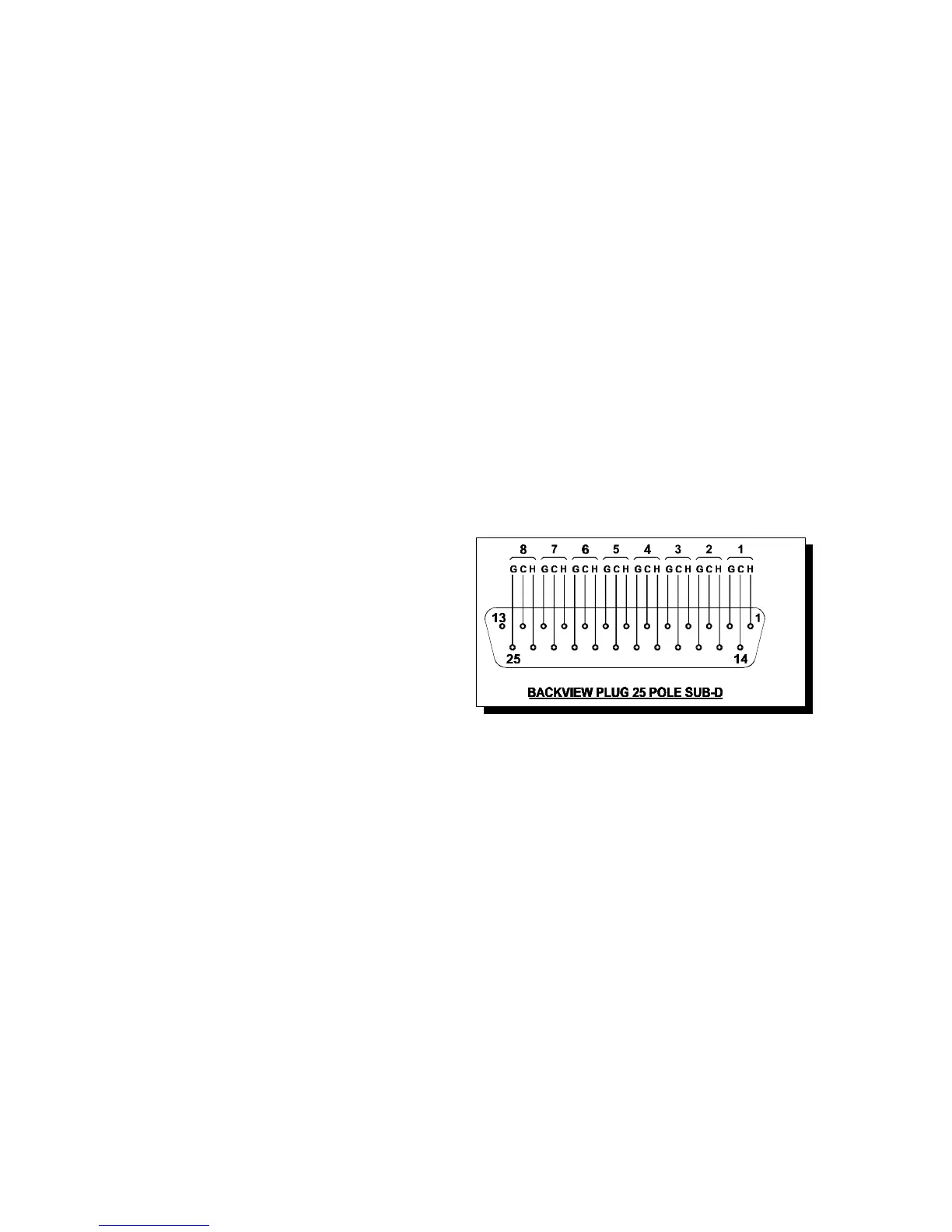

1-4 are the direct inputs and 5-8 are the
1-4 playback inputs. See the connector
at the right side of the page.
Every connector takes care of 4 inputs
(dir/playback) Meters can also be
connected on the 4 extra Stems meter sub-D connector outputs.
MIC inputs
XLR 3 pole female 1=Ground
2=Hot (in phase)
3=Cold (out of phase)
ANALOG POWER 8 pole speakon -1 = +12 volt (digital)
+1 = +18 volt
-2 = -12 volt (digital)
+2 = -18 volt
- 3 = Ground digital
+3 = +48 volt
-4 = Ground
+4 = Ground
CHASSIS GROUND Binding terminal connected to chassis.
Cinemix manual page: 56
