Danfoss D1 Series User Manual

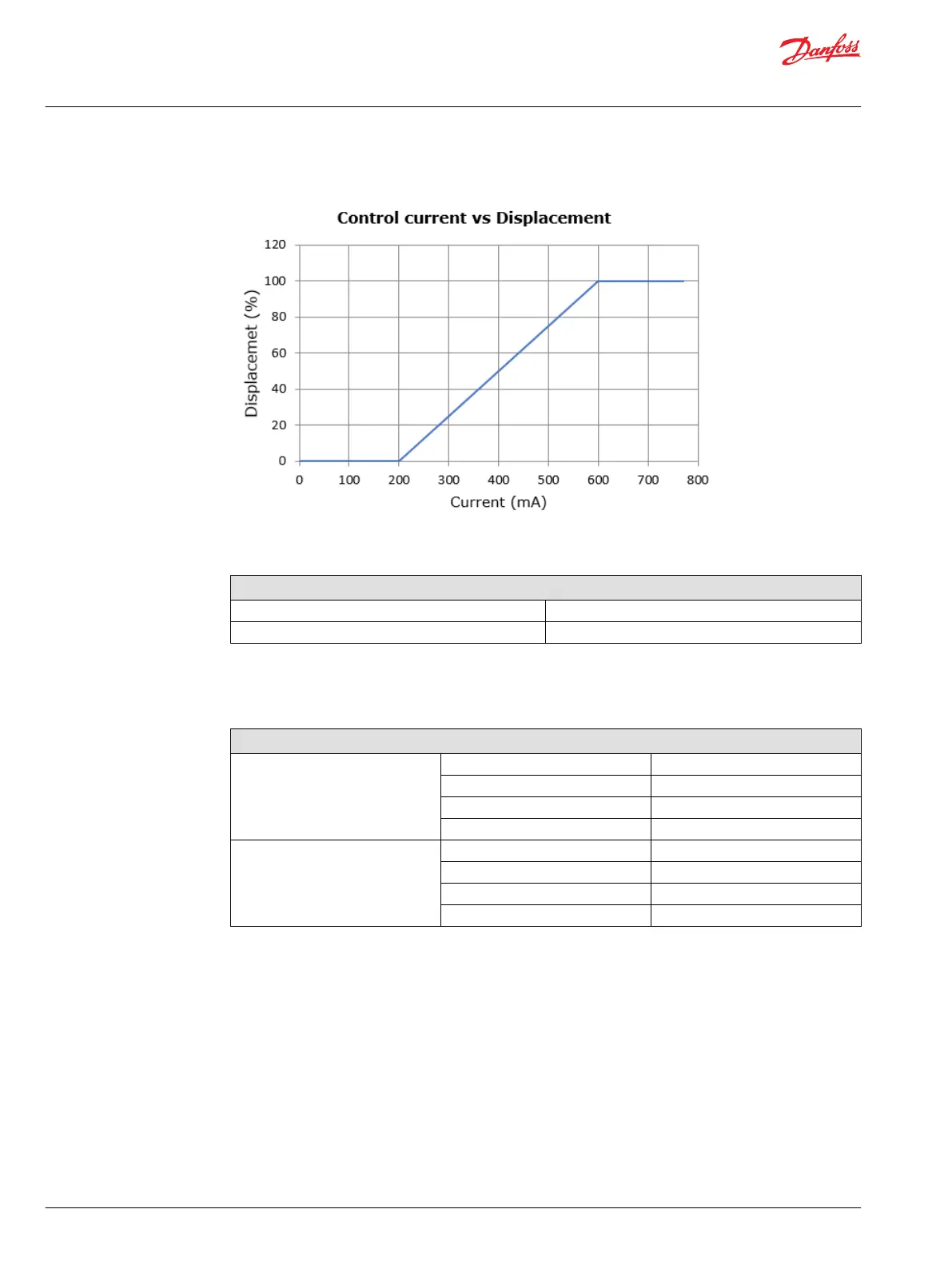

Typical operating curve
Hysteresis
EDC Hysteresis
1
Input hysteresis <4.5%
Output hysteresis @50% displacement <4.0%
1
Values may vary depending on application conditions. For more information, please contact Danfoss Power
Solutions
Response/Recovery
Response/Recovery Times @ 1500rpm (50°C)
1
Response 0%-100% 130cc (263 bar) 260 msec
145cc (263 bar) 260 msec
193cc (160 bar) 272 msec
260cc (200 bar) 370 msec
Response 100%-0% 130cc (263 bar) 390 msec
145cc (263 bar) 390 msec
193cc (160 bar) 186 msec
260cc (200 bar) 390 msec
MOR
Each Electric Displacement Control (EDC) is equipped with a Manual Over Ride (MOR) function for
temporary actuation of the control to aid in diagnostics, even if insufficient or no current is supplied to
the solenoid actuator. Initial activation of the MOR function will require a higher force to overcome the
sticking effect between the pin and O-ring seal. Repeated activation of this functionality should provide
better controllability.
Service Manual
D1 High Power Open Circuit Pumps Size 65/130/145/193/260
Operation
18 |
©
Danfoss | July 2019 L1527453 | AX00000292en-CN0201
