Danfoss D1 Series User Manual

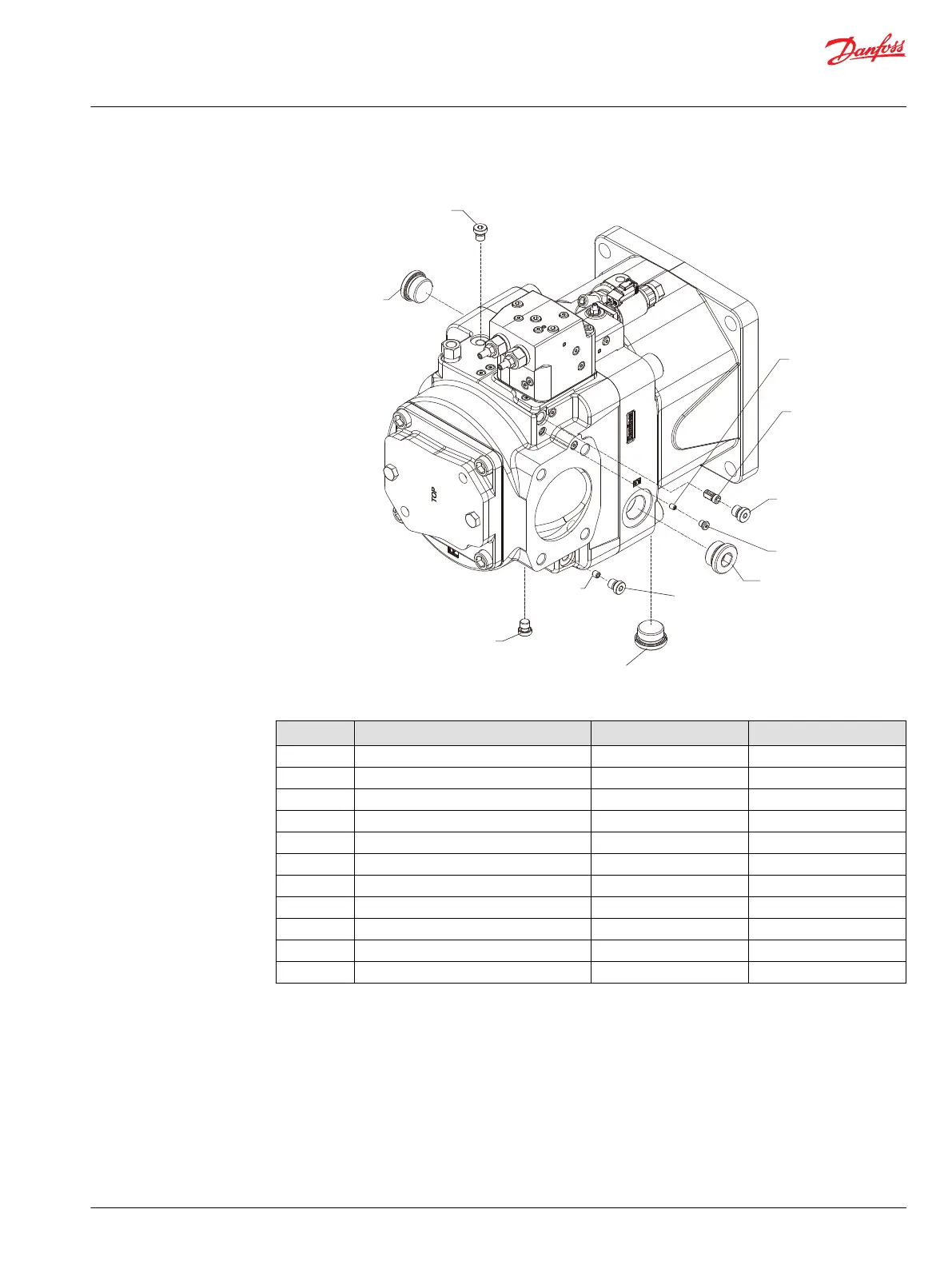

D1P 260 TPE2 control plug fittings
G235
G250
G253
F140
F150
G255
G254
G130
G140
G225
F160
Plug fitting reference
Item Description Wrench size Torque
G130 Bias orifice 3 mm hex 3.6-4.4 Nm
G140 Servo orifice 4 mm 3.6-4.4 Nm
G225 Outlet pressure test port MB (M12 x 1.5) 6 mm hex 22.5-27.5 Nm
G235 Servo pressure test port M4 (M12 x 1.5) 6 mm hex 22.5-27.5 Nm
G250 Servo orifice plug (M12 x 1.5) 6 mm hex 22.5-27.5 Nm
G253 Bias orifice plug (5/16 - 24 UNF-2A) 1/8 in 9.9-12.1 Nm
G254 Edge filter 6 mm hex 9.9-12.1 Nm
G255 Edge filter plug (M14 x 1.5) 6 mm hex 30.6-37.4 Nm
F140 Drain port L3 (M33 x 2) 17 mm hex 68.4-83.6 Nm
F150 Drain port L2 (M33 x 2) 17 mm hex 68.4-83.6 Nm
F160 Drain port L1 (M33 x 2) 17 mm hex 68.4-83.6 Nm
Service Manual
D1 High Power Open Circuit Pumps Size 65/130/145/193/260
Minor repairs
©
Danfoss | July 2019 L1527453 | AX00000292en-CN0201 | 57
