Danfoss D1 Series User Manual

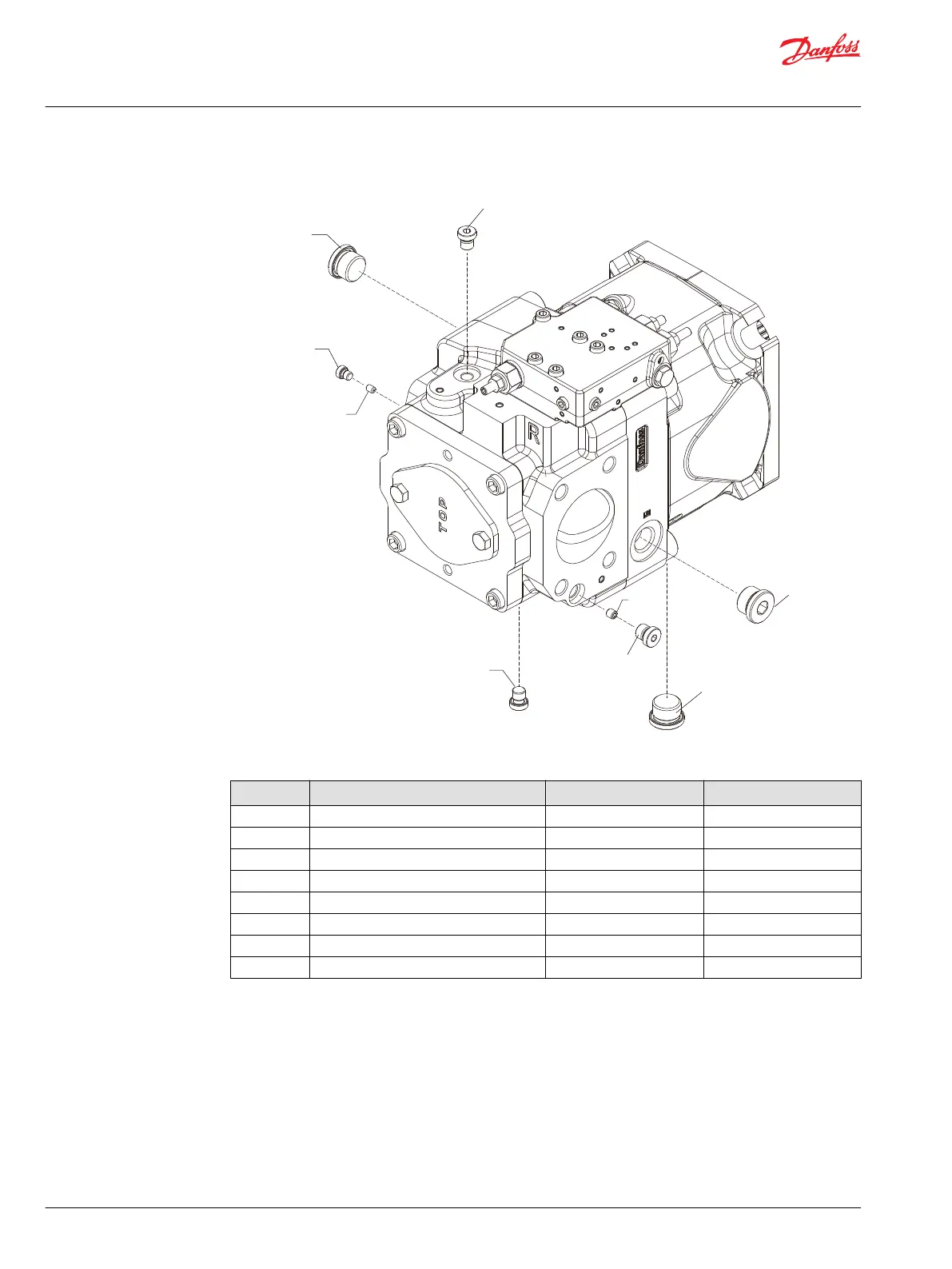

D1P 130/145 TPSN control plug fittings
G225
F160
G240
G130
G235
G250
F140
F150
G140
Plug fitting reference
Item Description Wrench size Torque
G130 Bias orifice 3 mm hex 3.6-4.4 Nm
G140 Servo orifice 4 mm 3.6-4.4 Nm
G225 Outlet pressure test port MB (M12 x 1.5) 6 mm hex 22.5-27.5 Nm
G235 Servo pressure test port M4 (M12 x 1.5) 6 mm hex 22.5-27.5 Nm
G250 Servo orifice plug (M14 x 1.5) 6 mm hex 30.6-37.4 Nm
F140 Drain port L3 (M26 x 1.5) 12 mm hex 68.4-83.6 Nm
F150 Drain port L2 (M26 x 1.5) 12 mm hex 68.4-83.6 Nm
F160 Drain port L1 (M26 x 1.5) 12 mm hex 68.4-83.6 Nm
Service Manual
D1 High Power Open Circuit Pumps Size 65/130/145/193/260
Minor repairs
58 |
©
Danfoss | July 2019 L1527453 | AX00000292en-CN0201
