Standard EDC Valve
The position of the connector can be changed by turning the solenoid body. Proceed as follows:
1. Loosen protection cap (1).
2. Loosen lock nut (2).
3. Turn the solenoid body (3) to the desired position.
4. Tighten the lock nut (2).
5. Tighten the protection cap (1).
Tightening Torque of lock nut: 5 ± 1 N•m [44.25 ± 8.85 lbf•in]

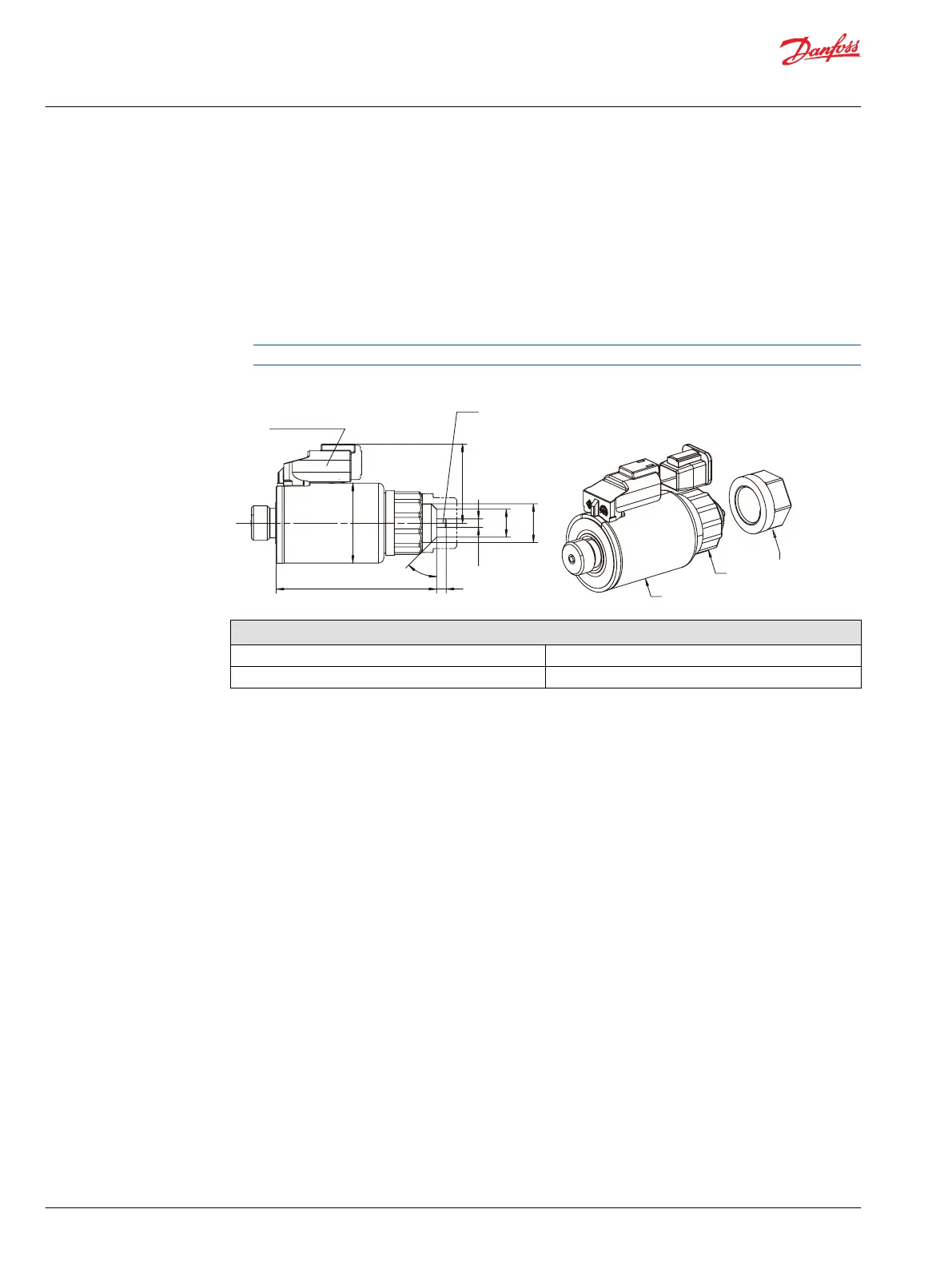

Standard EDC Valve
DEUTSCH DT04-2P
74.5 4.5
(3)
A
(2)
(1)
45°
Ø37.1
36.7
Ø4
Ø13
M18x1.5
A - Actuation Forces
Breakaway Force (First actuation) 45 N [10.12 lbf] max.
Repeat of Actuation 25 N [5.62 lbf] max.
NNES Priority
Both the Electric Displacement Control (EDC) and the Load Sensing Control (LS) are used to control the
pump’s displacement. The pump will output the smallest displacement when both control functions are
given control instruct.
Service Manual
D1 High Power Open Circuit Pumps Size 65/130/145/193/260
Operation
20 |
©
Danfoss | July 2019 L1527453 | AX00000292en-CN0201
