Danfoss D1 Series User Manual

Port Locations and Gauge Instalation (193/260)
Port Purpose Port size Wrench size Range of gauge
L1, L2, L3 Case drain M33x2 17 mm 0-60 bar [0-870.23
psi]
M
B
Outlet M12x1.5 6 mm 0-600 bar [0-870.23
psi]
M
4
Servo piston chamber M12x1.5 6 mm 0-600 bar [0-870.23
psi]

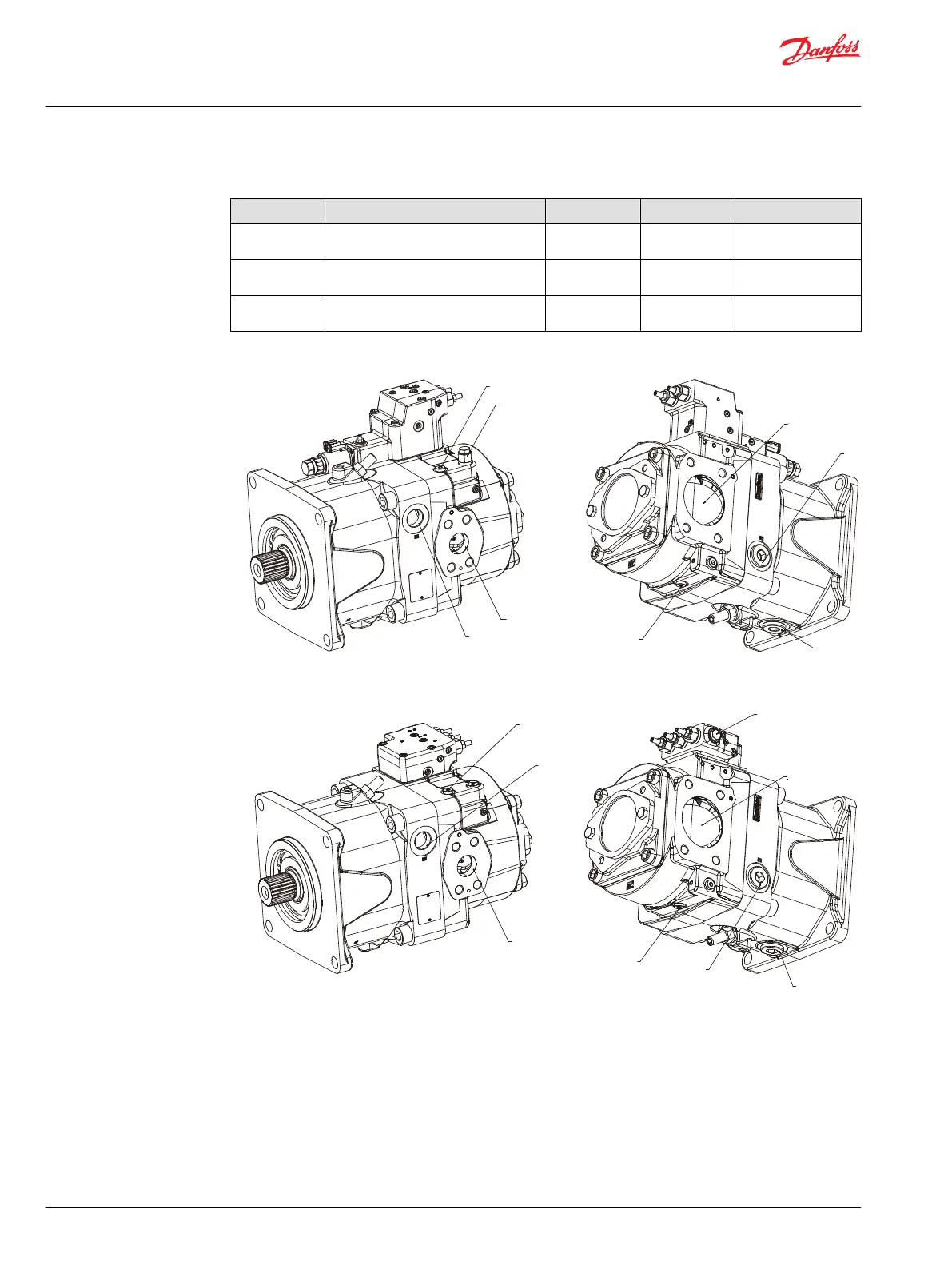

193/260 Port location, Control type: TPE2
MB
E : External Control
Port
L1
S : Inlet Port
B : Outlet Port
M4
L3
L2
193/260 Port location, Control type: TPSN
MB
L1
X : Load Sensing
Signal Port
M4
L3
L2
B : Outlet Port
S : Inlet Port
P400092
Service Manual
D1 High Power Open Circuit Pumps Size 65/130/145/193/260
Pressure measurements
30 |
©
Danfoss | July 2019 L1527453 | AX00000292en-CN0201
