Mounting
EI.65.D4.02
9
3.3 DIN Rail Mounting
The controller can be mounted on a 35 mm DIN rail.
1. Fit the spring to the rear of the base plate before mounting on the DIN
rail (see Figure 9).
The spring is available as an accessory (code no. 087B3077).

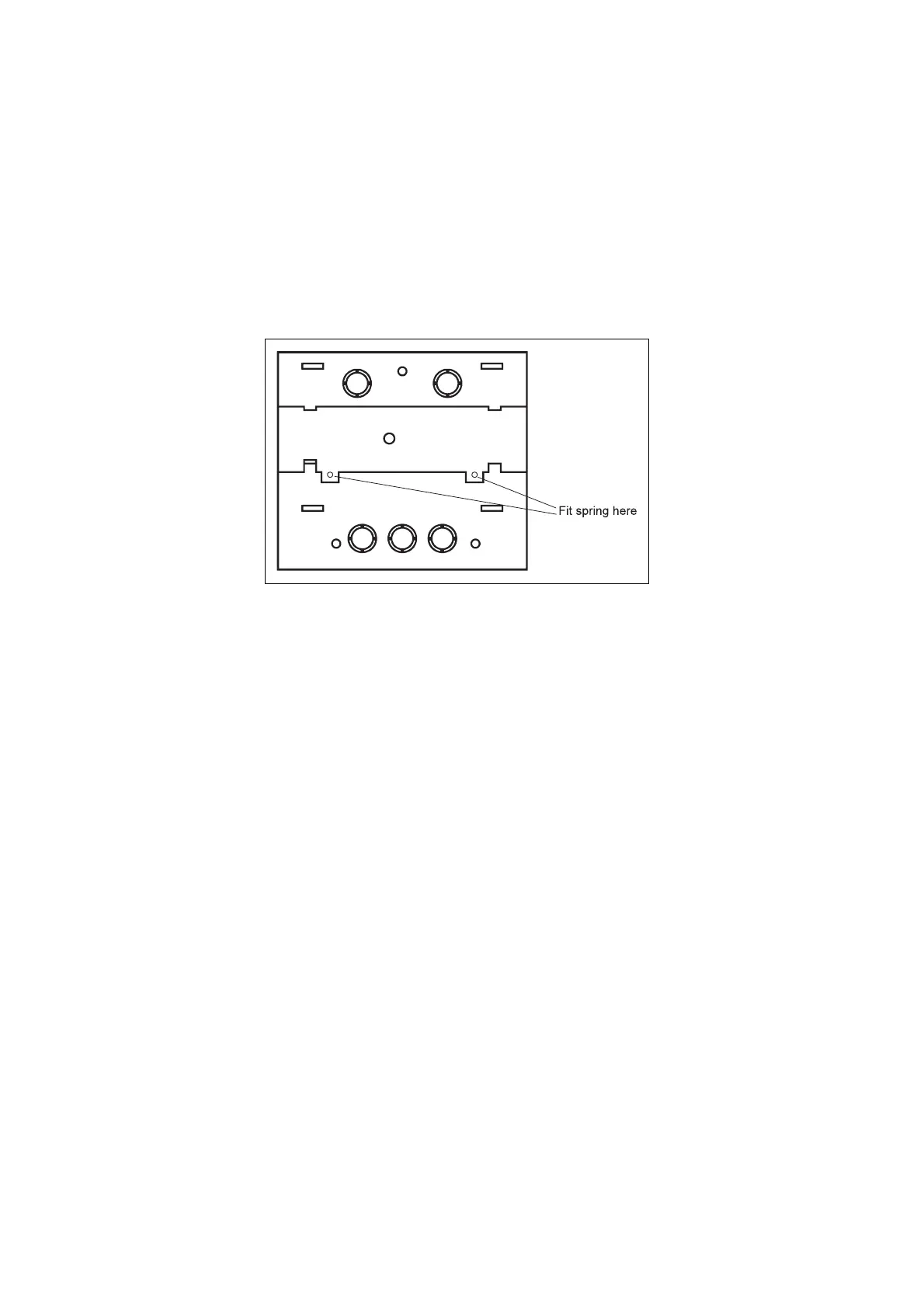

Figure 9. Fitting the DIN spring to the controller’s base plate
2. Fasten the base plate on the DIN rail.
3. Connect wires to the terminal blocks.
4. Mount the case.
5. Position the controller in the case.
3.4 Mounting Side by Side
Panel mounting: Minimum distance between two controllers: 15 mm.
Wall mounting: Minimum distance between two controllers: 20 mm.
