Configuring the ECL 2000
EI.65.D4.02
33

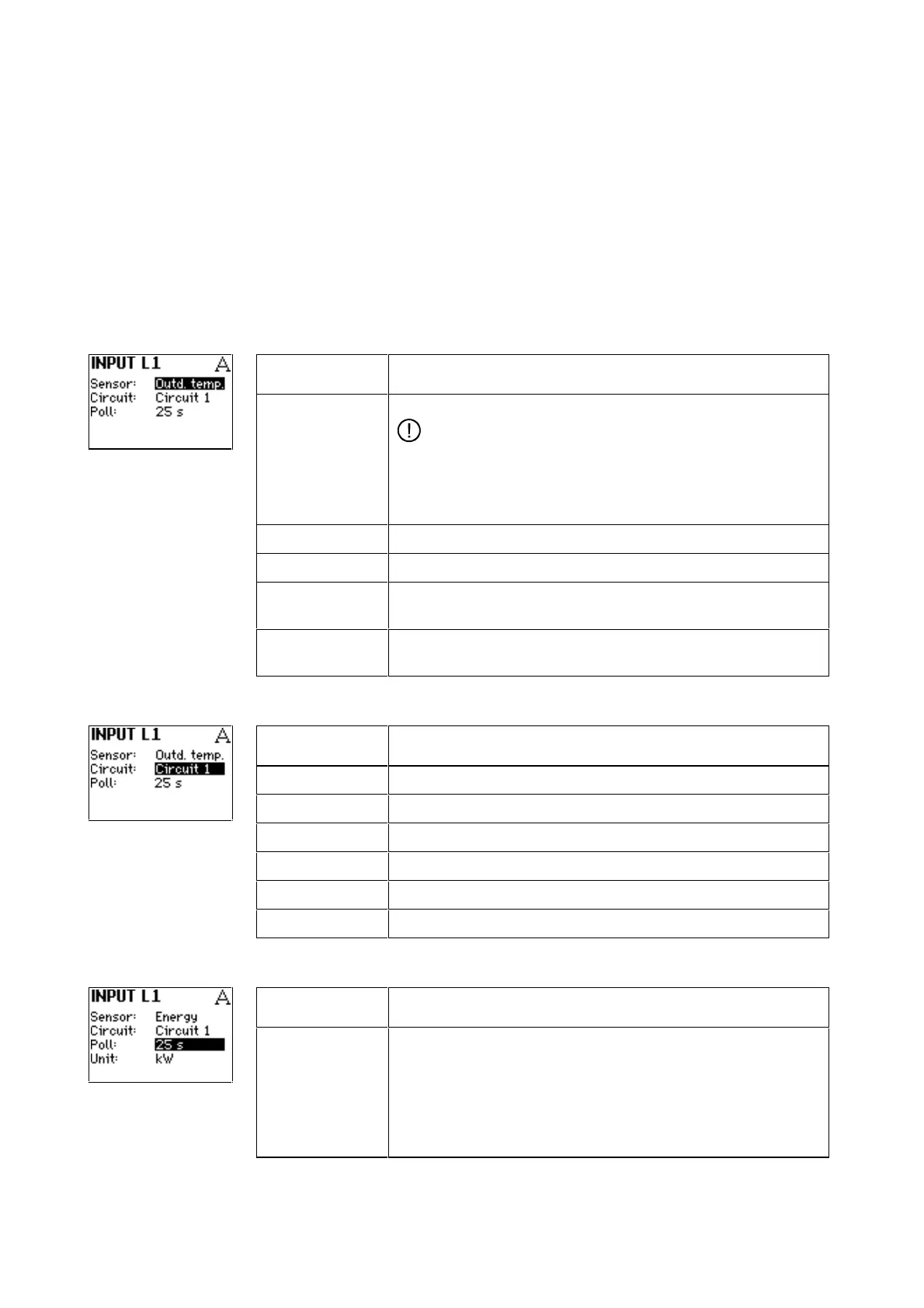

5.4.3 LON Inputs
The parameters of the LON input configuration pictures can assume the values de-
scribed in the following.
Sensor This setting tells the ECL 2000 what is being measured by means of the LON sen-
sor.
Value Description
Outd. temp.
Outdoor temperature
Note:
When Outd. temp. is selected, the ECL 2000 uses the LON sensor
to measure outdoor temperature. Any outdoor temperature sensor
connected directly to the ECL 2000 (typically via sensor input S3)
is disabled
Flow
Water flow
Wind veloc.
Wind velocity
Energy Energy measurement. When Energy is selected, values for the ac-
cumulated energy are automatically collected from the same device
None
The LON input is not used, i.e. no input is taken from the LON net-
work
Circuit This parameter determines which circuit is influenced by the collected data.
Value Description
None
No circuits affected
Circuit 1
Heat circuit 1
Circuit 2
Heat circuit 2
Hot water
Hot-water circuit
Circuit 1+2
Circuits 1 and 2
All circuits
All heat and hot-water circuits in the system
Poll This parameter determines how often the ECL 2000 will poll the LON sensor.
Value Description
X s The number of seconds between sensor polls. For example, if Poll is
set to 25 s, the ECL 2000 reads the actual value from the sensor
every 25 seconds
Poll can be set to values in the range 5 – 60 s for all sensor types.
After an external device has been polled 3 times without having
anwered, this is considered a sensor fault
