Configuring the ECL 2000
EI.65.D4.02
27

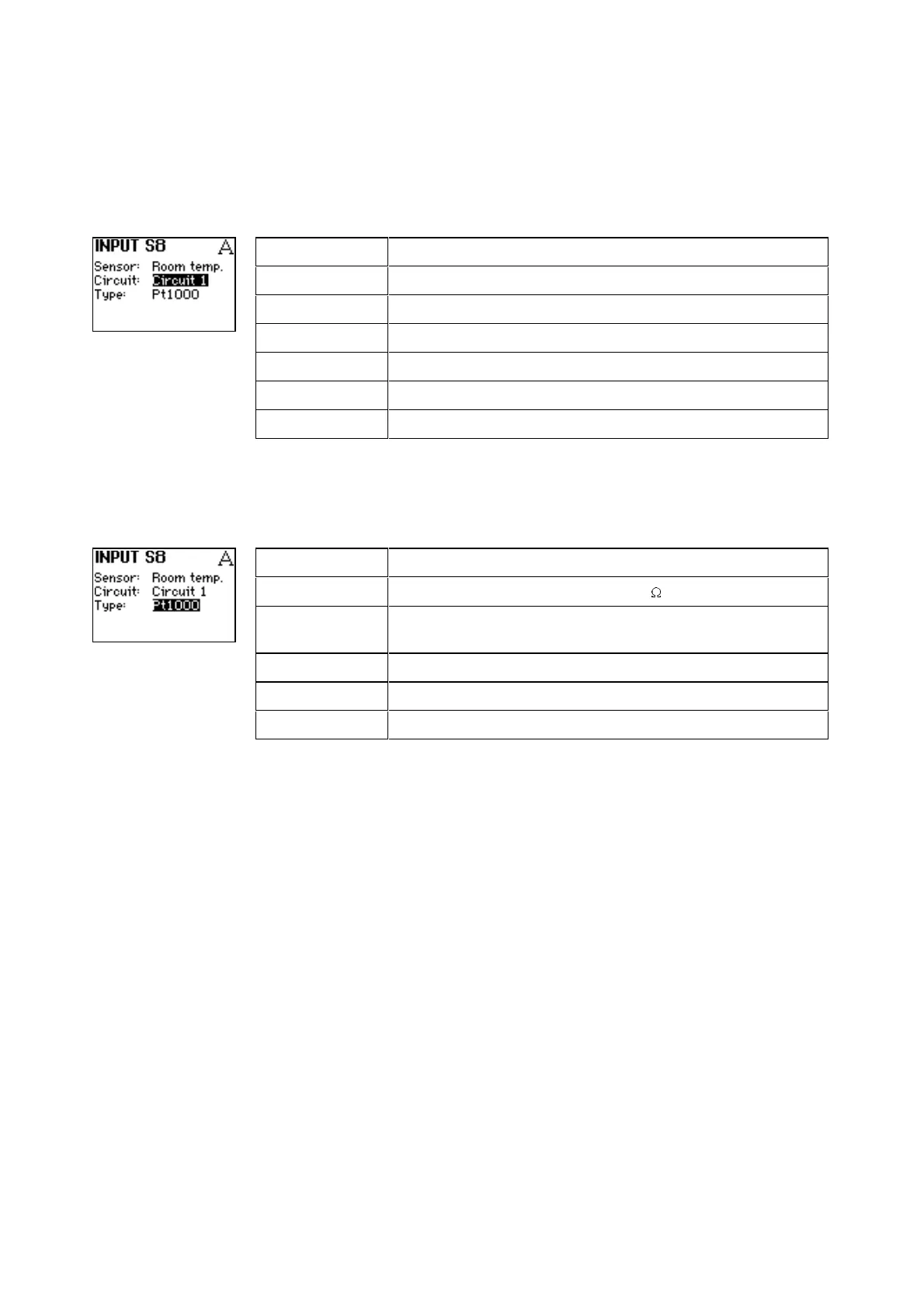

Circuit
This parameter determines which circuit is affected by the sensor.
Value Description
None
No circuits affected
Circuit 1
Heat circuit 1
Circuit 2
Heat circuit 2
Hot water
Hot-water circuit
Circuit 1+2
Circuits 1 and 2
All circuits
All heat and hot-water circuits in the system
Type
This setting indicates which type of sensor is connected. The following sensor
types are supported:
Value Description
Pt 1000
Temperature dependent resistance: 1000
at 0 ºC
ESMF
Remote control device with a built-in Pt 1000 room temperature
sensor
Digital
Digital input
0–10 V
The sensor delivers a voltage in the range 0-10 V
Pulse
Pulse count
Pt 1000 sensors This sensor type is selected by setting Type to Pt 1000. Pt 1000 sensors are used
for measuring:
• Room temperature
• “Other”.
ESMF
The ESMF is a remote control device with a built-in room sensor. This sensor type
is selected by setting Type to ESMF.
Sensors delivering a
digital signal
This type of sensor is selected by setting Type to Digital. Digital sensors can be
used to measure water flow. Type must also be set to Digital when Sensor is set
to Clock. func., i.e. the sensor input is used for connecting an external timer.
