Applications
EI.65.D4.02
36
6.2 Overview of ECL 2000 Applications
When configuring the ECL 2000, you can choose between 14 or 17 different ap-
plications that are listed in the following.

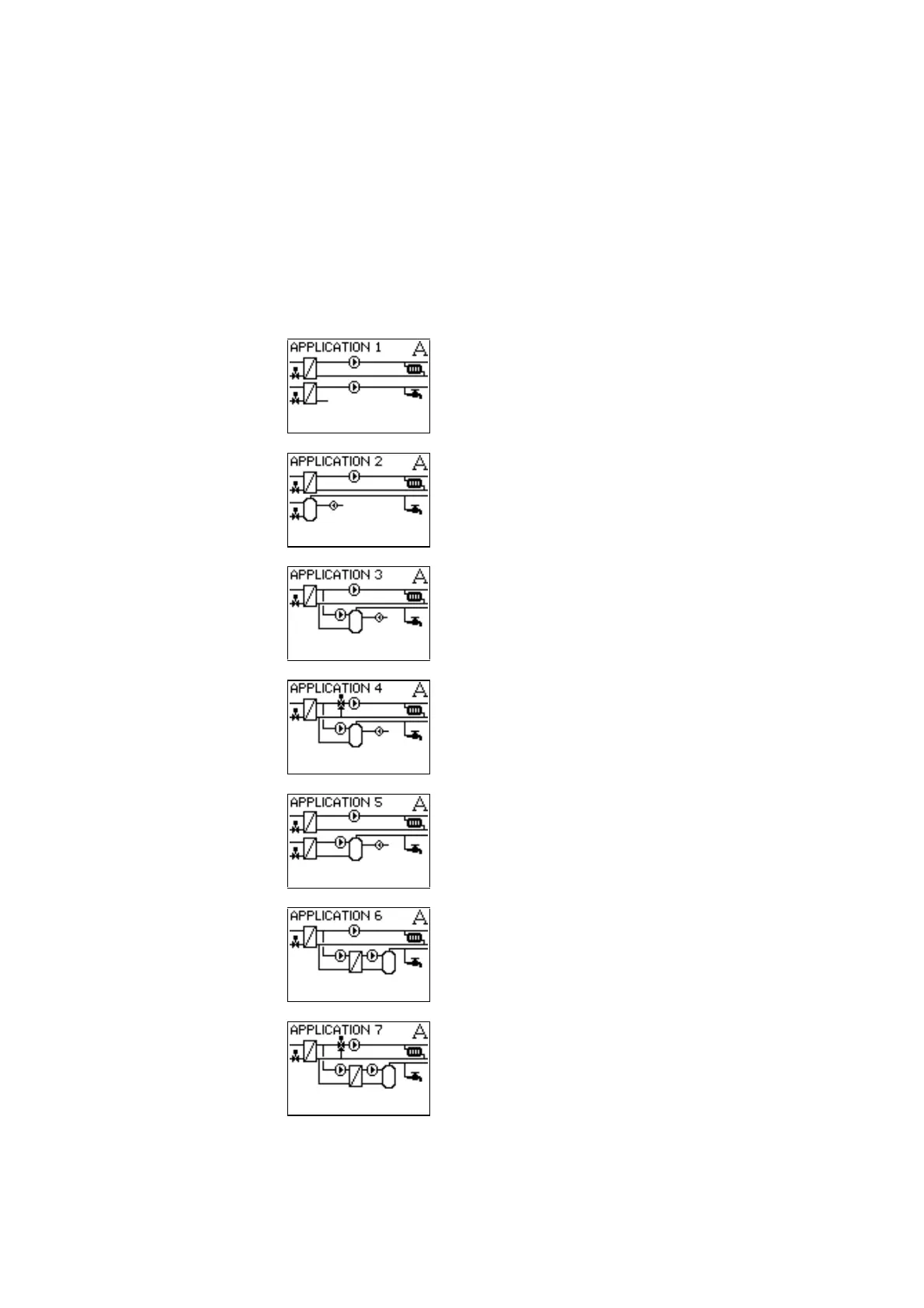

The application pictures in this section are the display pictures of the ECL 2000.
Refer to section 6.3, page 39 for system diagrams offering additional detail.
Heat circuit and hot-water circuit with indirect control
via heat exchanger. See page 41.
Heat circuit and hot-water circuit with direct control of
storage tank. See page 45.
Common primary heat exchanger for a heat circuit and a
hot-water circuit with indirect control of storage tank.
See page 49.
Common primary heat exchanger for a heat circuit with
a mixing valve and a hot-water circuit with indirect
control of storage tank. See page 53.
Heat circuit and hot-water circuit with indirect control
of storage tank. See page 57.
Common primary heat exchanger for a heat circuit and a
hot-water circuit with indirect tank charging system.
See page 61.
Common primary heat exchanger for a heat circuit with
mixing valve and a hot-water circuit with indirect tank
charging system. See page 66.
