5.4 Configuring Inputs and Outputs
5.4.1 Operating Configuration Pictures
Depending on the type of ECL 2000 you are working with and the application you
have selected, it may be possible to customize from one to four sensor inputs (S8-
S11) and one of the relay outputs (P3). Furthermore, if the ECL 2000 LON option
is installed, you can configure four LON inputs (L1, L2, L3, and L4). This section
explains how to operate the function and gives some details about possible settings
When you have selected an application, you are ready to configure inputs and out-
puts:

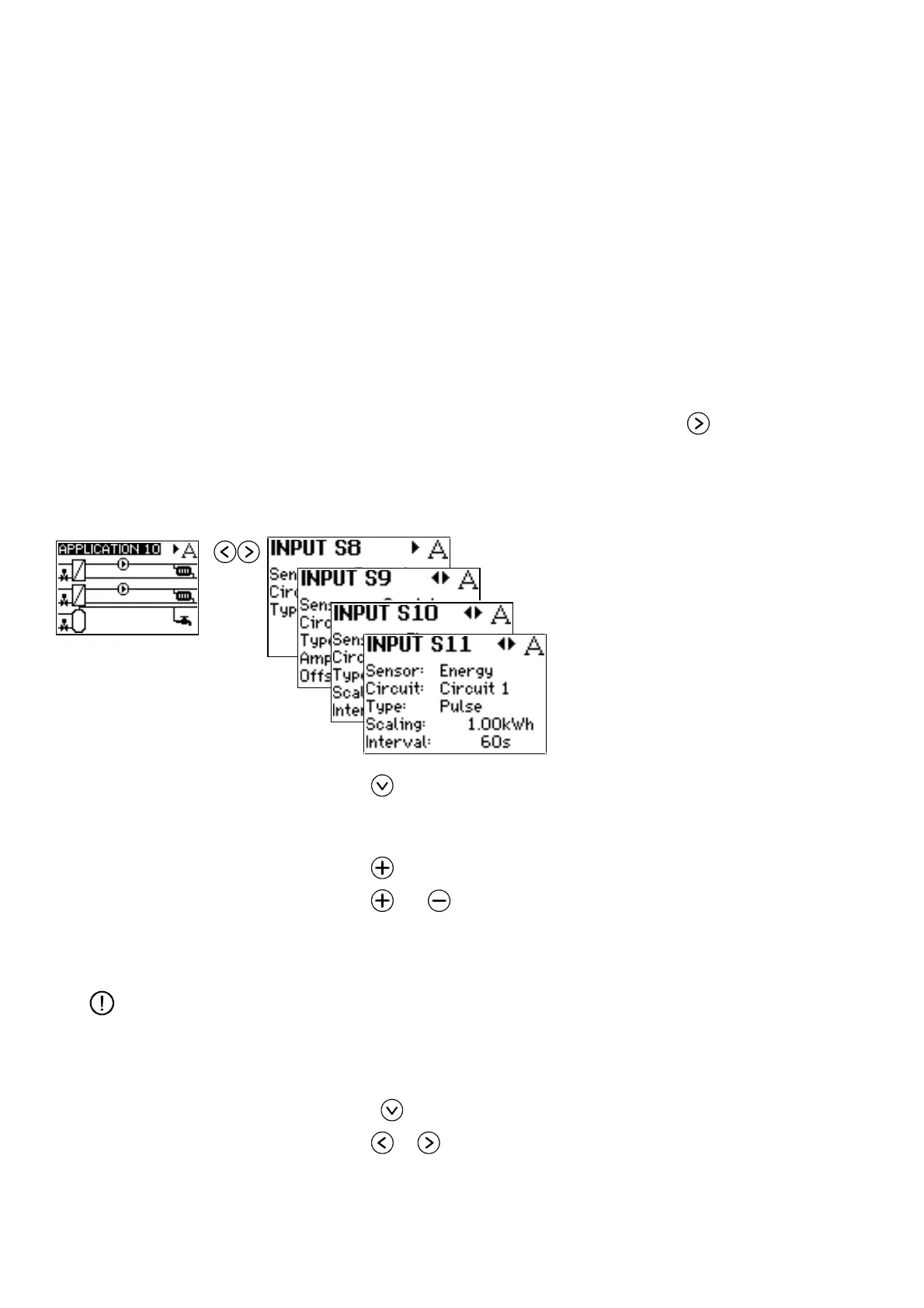

1. In the Application picture (see facing page), press
to access Input
settings.
Configuring Sensor
Inputs
The first pictures in the series allow you to configure the ECL 2000’s sensor in-
puts.
2. Use to select the different parameters.
The arrow symbol at the top right corner of the display disappears, indicating that
you can now select and set the individual parameters of the picture.
3. Use
to modify the parameters Sensor, Circuit and Type.
4. Use
and to modify the remaining parameters.
Section 5.4.2 starting on page 26 provides details about the possible settings of
sensor input parameters.
Note:
The sensor inputs S10 and S11 and the corresponding configuration pictures are
only available for the ECL 2000 Type 2.
To exit a configuration picture (see also page 25):
5. Press
until the arrow symbol at the top right corner reappears.
6. Use
or to access other configuration pictures.
To Next Page
