Electrical Connections
EI.65.D4.02
16
4.4.4 Connecting Motors to the ECL 2000 Type 2
4-Wire Connection
The diagram in Figure 14 illustrates how motors are connected to the terminal
blocks of an ECL 2000 Type 2. This way of connecting motors is recommended.

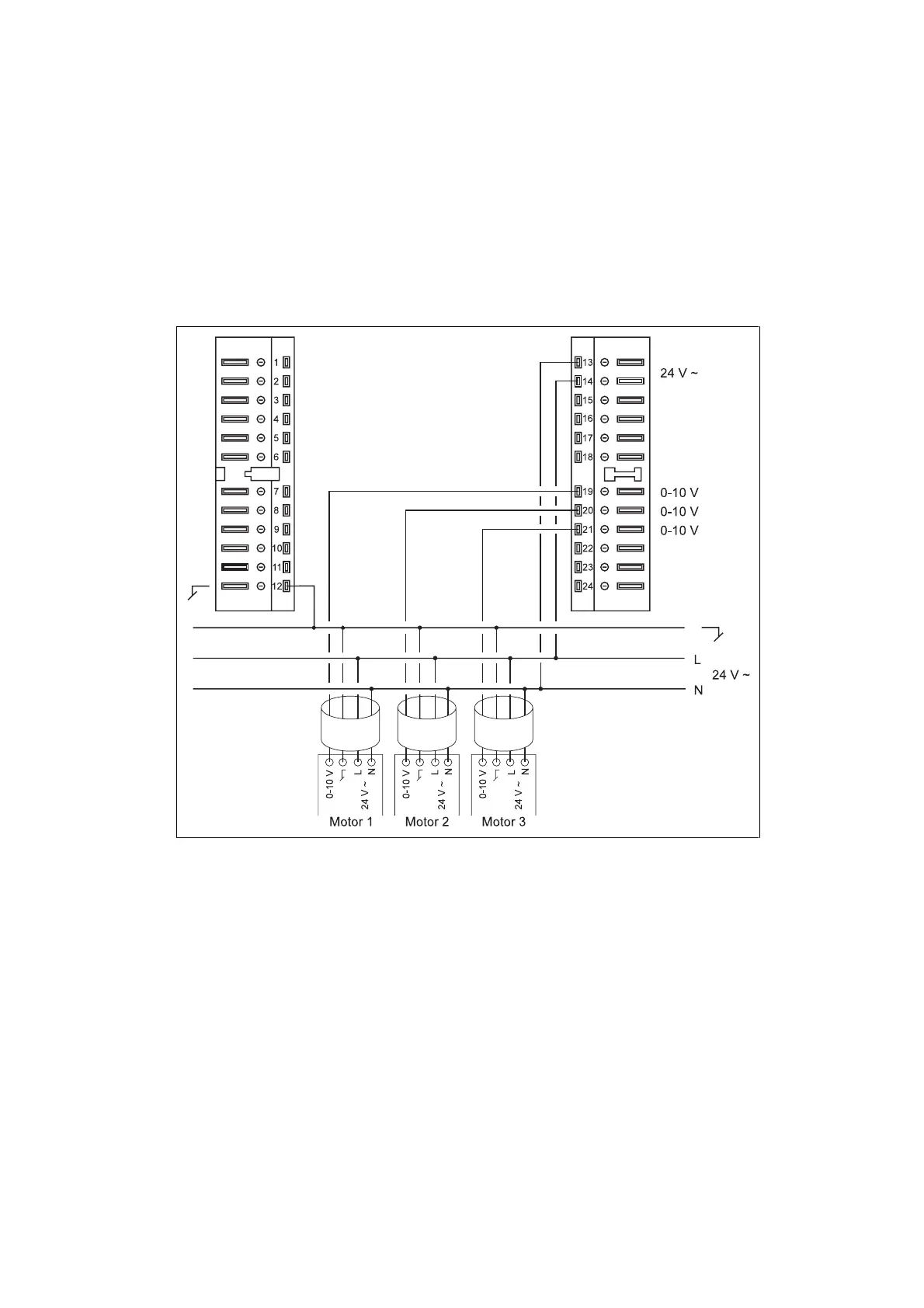

Figure 14. Connecting motors to the ECL 2000 Type 2 – recommended
