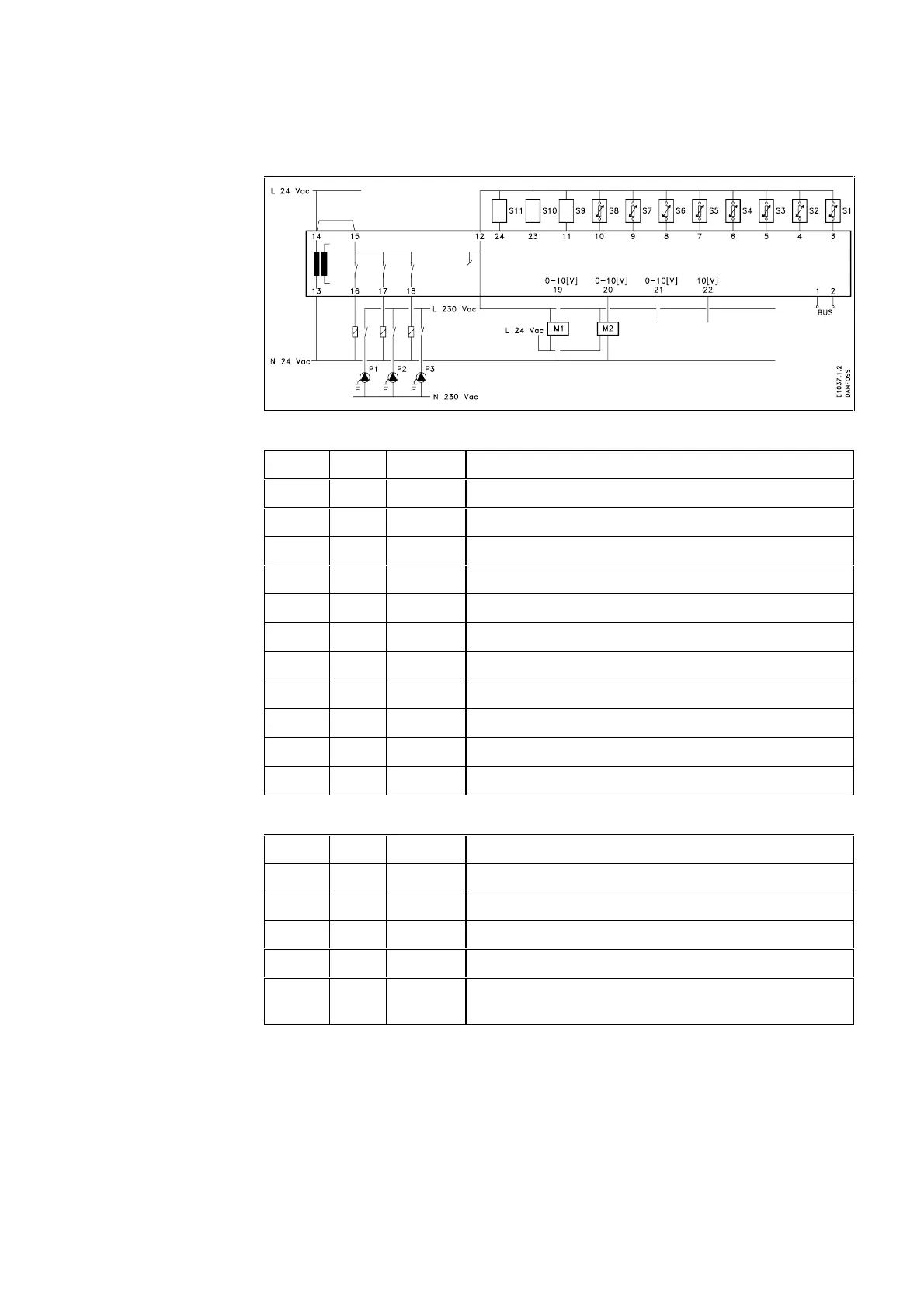

Application 5
EI.65.D4.02
60
Wiring Type 2
Input Type 2
Name Pin Common Description
S1 3 12 Flow temperature, heat circuit. Must be connected
S2 4 12 Return temperature, heat circuit
S3 5 12 Outdoor temperature. Must be connected
S4 6 12 Charging temperature, hot-water circuit. Must be connected
S5 7 12 Return temperature, hot-water circuit
S6 8 12 Upper storage tank temperature. Must be connected
S7 9 12 Lower storage tank temperature. Must be connected
S8 10 12 Default: Room temperature. Can be redefined
S9 11 12 Available
S10 23 12 Available
S11 24 12 Available
Output Type 2
Name Pin Neutral Description
P1 16 13 Circulation pump, heat circuit
P2 17 13 Charging pump, hot-water circuit
P3 18 13 Circulation pump, hot-water circuit. Can be redefined
M1 19 12 Motor valve on primary side of heat circuit
M2 20 12 Motor valve on primary side of heat exchanger in hot-water
circuit
