NOTE
With single phase A3 use L1 and L2 terminals.
4.1.7 Mains Connection for A4/A5

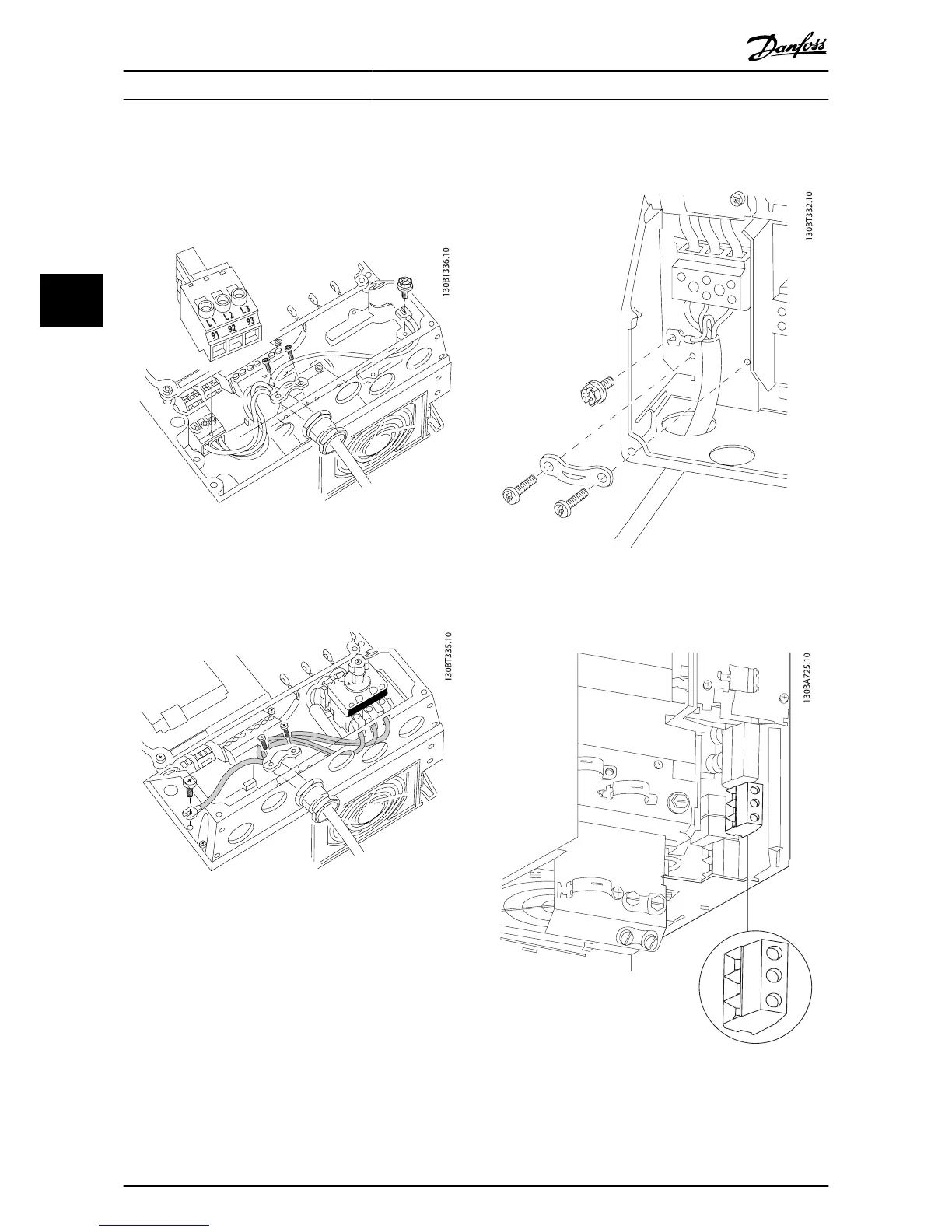

Illustration 4.7: How to connect to mains and earthing
without mains disconnect switch. Note that a cable clamp
is used.
Illustration 4.8: How to connect to mains and earthing
with mains disconnect switch.
NOTE
With single phase A5 use L1 and L2 terminals.
4.1.8 Mains Connection for B1, B2 and B3
Illustration 4.9: How to connect to mains and earthing for
B1 and B2
Illustration 4.10: How to connect to mains and earthing
for B3 without RFI.
Electrical Installation
VLT
®
HVAC Drive Operating Instructions
28 MG.11.AD.02 - VLT
®
is a registered Danfoss trademark
4
4
