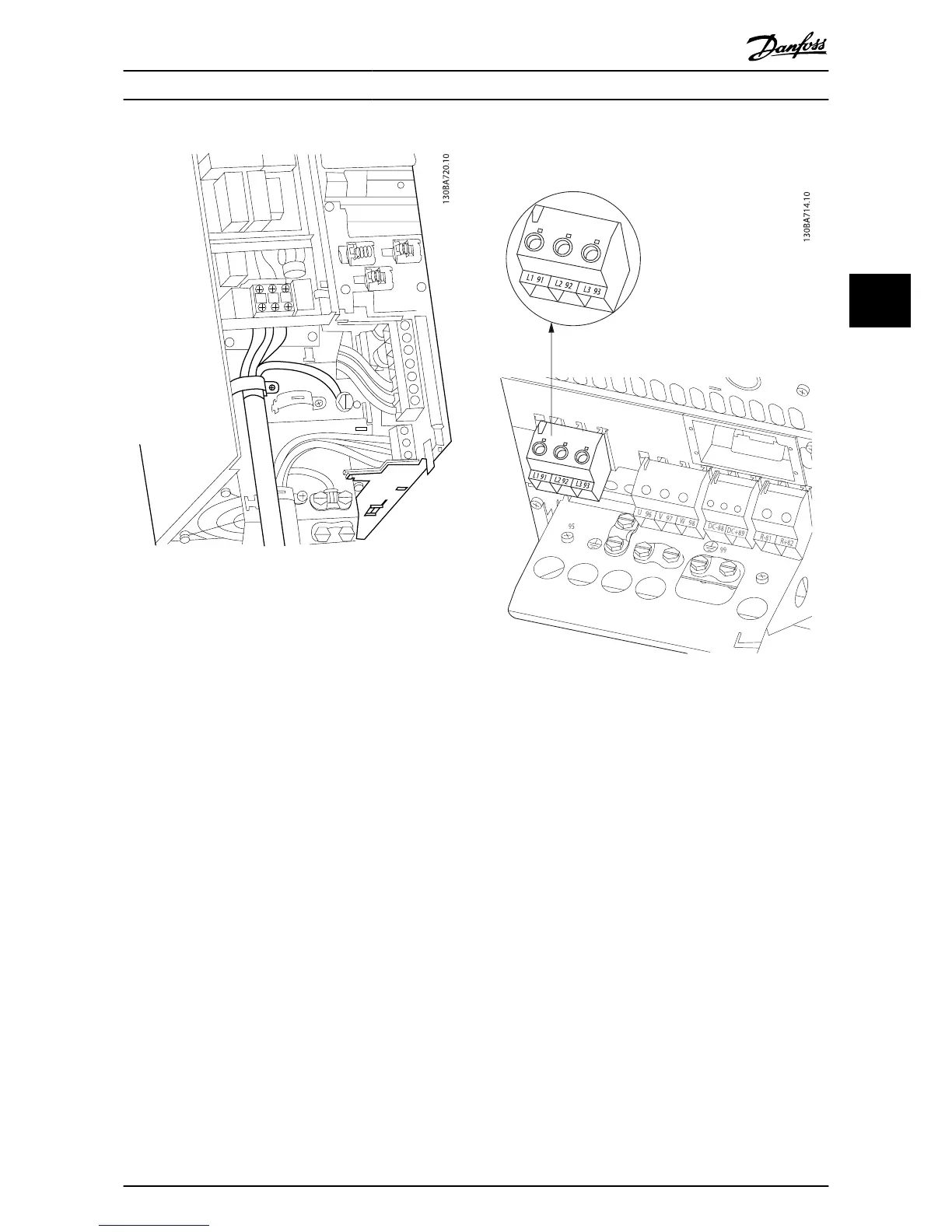

Illustration 4.11: How to connect to mains and earthing
for B3 with RFI.
NOTE
With single phase B1 use L1 and L2 terminals.
NOTE
For correct cable dimensions please see the section
General Specifications at the back of this manual.
4.1.9 Mains Connection for B4, C1 and C2
Illustration 4.12: How to connect to mains and earthing
for B4.
Electrical Installation
VLT
®
HVAC Drive Operating Instructions
MG.11.AD.02 - VLT
®
is a registered Danfoss trademark 29
